PX249
Audio DMX
Player
Manual
R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Audio DMX Player and is the answer not in the manual?

Questions and answers

Related Manuals for PXM Audio DMX Player

Summary of Contents for PXM Audio DMX Player

  • Page 1 PX249 Audio DMX Player Manual...

  • Page 2: Table Of Contents

    16. Dimensions......................17. Technical specifications..................Declaration of conformity....................Manufacturer reserves the right to make modifications in order to improve device operation. PXM Marek Żupnik spółka komandytowa tel.: +48 12 626 46 92 Podłęże 654 fax: +48 12 626 46 94 E-mail: info@pxm.pl...

  • Page 3: General Description

    2. SAFETY CONDITIONS The PX249 Audio DMX Player is a device powered with 12 - 24V safe voltage. However, during its installation and use the following rules must be strictly observed: 1. The device may only be connected to 12-24V DC current (stabilized voltage) with current- carrying capacity compatible with technical data.

  • Page 4: Description Of The Player

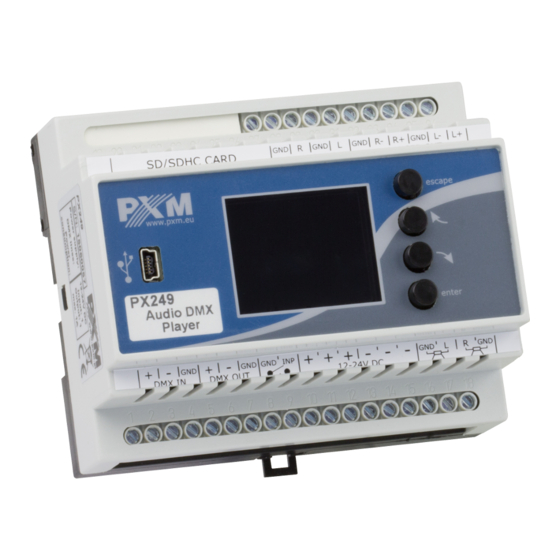

    3. DESCRIPTION OF THE PLAYER audio outputs SD/SDHC Card slot display USB port function keys inactive 12-24 V DC DMX signal input power input speaker outputs DMX signal output external control button input 4. DIRECT CONTROL Menu navigation is facilitated by programming keys. Each key is described on the right side and their use is as follows: - exiting the parameter that is currently being programmed or moving the menu up...

  • Page 5: Player State After Turning On The Device

    5. PLAYER STATE AFTER TURNING ON THE DEVICE When PX249 is turned on, the start menu appears on the screen. The menu design varies depending on whether the device is receiving the DXM signal or not. Direct keyboard support (played track control) is possible when the DMX signal is not being received. DMX OK Addr: 001 NO DMX...

  • Page 6: Audio Formats, Memory Cards And Files Naming

    6. AUDIO FORMATS, MEMORY CARDS AND FILES NAMING The Audio DMX Player supports audio files in the .wav format with the following parameters only: *.wav files with bits per sample value of 16-bit on two-channels ź acceptable sampling frequencies: ź...

  • Page 7: Player Menu

    7. PLAYER MENU After going to the [Menu] tab, you can edit the following options: list of tracks Menu Tracks additional audio settings: [Bass], [Treble], [Balance] Audio settings DMX settings Additional options Firmware info settings related to the DMX signal additional options information on firmware and default settings 8.

  • Page 8: Dmx Settings

    10. DMX SETTINGS Selecting a bookmark [DMX settings] allows you to change the settings related to operation in the DMX mode. starting address taken by PX249 DMX settings operation mode of the device when the DMX signal is DMX address connected (4 or 7 channels) 7 ch DMX mode...

  • Page 9: Firmware Info

    1. prepare an empty SD card (FAT32 file system) 2.upload only the update file to the card (extension: .upg) 3. disconnect the Audio DMX Player from the mains 4. remove the existing SD card and insert a new one that is updated 5.

  • Page 10: Dmx Control

    14. DMX-512 CONTROL Using the DMX protocol, control over the device can be implemented through four or seven channels. For the four-channel control, the play/stop/resume, song selection, play, single/continuous looped playback and volume control functions are available. a) Description of channels for control on four channels: Channel 1: Stop, pause, resume, start.
  • Page 11 Channel 4: 100-grade volume control On the fourth DMX channel, the device supports volume control in the range from 0 up to 100%. The volume is changed linearly in accordance with the following schedule: for the DMX signal with a value of 0 the volume is zero, while for the value of 255 the volume is 100%. Volume 100% DMX value...

  • Page 12: Connection Diagram

    15. CONNECTION DIAGRAM a) amplifier connection diagram (unbalanced output) audio amplifier V- V+ 12-24V DC power supply PX015 Chaser Scene % 100 100 % external control key (operational if no DMX Flash signal is present) Chaser Select Memory Club 6p DMX controller effect (e.g.
  • Page 13 b) amplifier connection diagram (balanced output) audio amplifier PX015 Chaser Scene % 100 V- V+ 100 % Flash 12-24V DC Chaser Select Memory Club 6p power supply c) speakers connection diagram 12-24V DC PX015 power supply Chaser Scene % 100 100 % 4 - 8 Ohm V- V+...

  • Page 14: Dimensions

    16. DIMENSIONS 60 mm 105 mm 16. TECHNICAL SPECIFICATIONS - Control DMX-512 protocol - DMX Channels 4 or 7 - Supported file formats - Supported sampling frequencies 48 kHz; 44,1 kHz; 32 kHz; 22,05 kHz; 16 kHz; 11,025 kHz; 8 kHz - Power supply 12-24 V DC* - Power consumption...

  • Page 15: Declaration Of Conformity

    30-701 Kraków, Poland fax: +48 12 626 46 94 DECLARATION OF CONFORMITY according to guide lines 2004/108/EC Name of producer: PXM Marek Żupnik sp. k. Manufacturer’s address: ul. Przemysłowa 12 30-701 Kraków, Poland We declare that our product: Product name:...
