- Page 1 PX796 Wireless DMX User manual...
-
Page 2: Table Of Contents
7 Montague....................13 8 Connection scheme.................14 9 Dimensions....................15 10 Technical data..................16 Manufacturer reserves the right to make modifications in order to improve device operation. PXM Marek Żupnik sp.k. Podłęże 654 tel. +48 12 385 83 06 32-003 Podłęże mail: info@pxm.pl Rev.1-0 BDO register number 000005972 www.pxm.pl... -
Page 3: Description

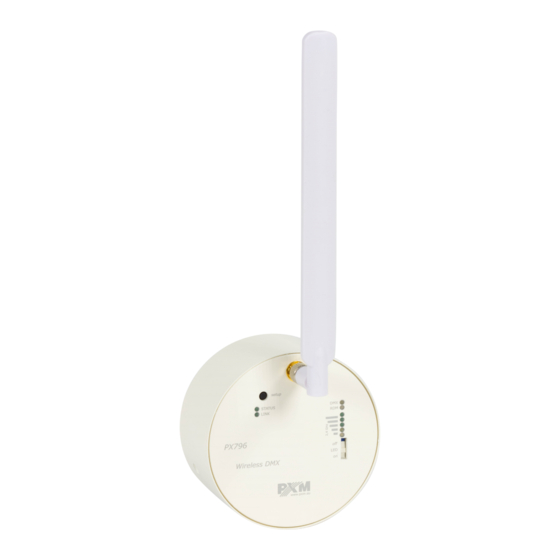

PX796, depending on the configuration, can be a transmitter or a receiver of a wireless DMX signal. Wireless DMX is a device that allows you to connect easily, without using wires, installations based on the DMX512 control system. In order to create an installation using wireless DMX signal transmission, two devices of this type should be used, set in transmitting and receiving mode (works with PX795 –... -
Page 4: Safety Conditions
Safety conditions PX796 is a device powered with safe voltage 12 – 24V DC; however, during its installation and use the following rules must be strictly observed: 1. The device may only be connected to 12 – 24V DC with current- carrying capacity compatible with technical data. -
Page 5: Connectors And Control Elements
Connectors and control elements programming button DMX / RDM signaling diodes Status / Link LEDs coverage LEDs LED switch Operating mode The PX796 device can operate in two modes: transmitter and receiver. The user can pair more than one receiver with the transmitter. The operating mode can be changed by using the programming button and the Status diode signaling. -
Page 6: Pairing Devices
To change the operating mode: 1. Five (5) times briefly press the programming button and then one (1) once for a long time. 2. The Status LED will flash to indicate the selected operating mode. Transmitter (Status LED blinking every 500ms) Receiver (Status LED blinking every 50ms) 3. -
Page 7: Transmitter → Receiver
5.1 Transmitter → receiver Pairing with a receiver that is not assigned to another transmitter is only possible if the devices are within range. In the transmitter, press the programming key for 0.1 – 1s. Pairing will occur automatically. → 5.2 Transmitter several receivers Pairing with receivers that are not... -
Page 8: Several Transmitters Several Receivers
→ 5.3 Several transmitters several receivers Pairing with receivers that are not assigned to another transmitter is only possible if the devices are within range. Receiver 1 If there are several transmitters and several receivers in the installation Transmitter 1 (sample configuration), and all of them are within range: Receiver 2... -
Page 9: Disconnecting Devices
There is also another possibility for such pairing: 1. Switch all receivers on. 2. In Transmitter 1, press the programming key for 0.1 – 1s (connecting with transmitters that are within its range and not assigned another transmitter, it will occur automatically). 3. -
Page 10: Indicator Lights
Indicator lights PX796 devices are equipped with 4 lights and a range indicator: Light Mode Action Function active radio link, flashes every 900ms no DMX present active radio link, constant on DMX data present transmitter linking receivers flashes every 100ms unlinking flashes every 200ms receivers... - Page 11 no radio link constant off activity transmitter constant on active radio link yellow Link no connection to constant off the transmitter receiver connected to the constant on transmitter no DMX constant off transmitter / yellow DMX transmission receiver constant on DMX transmission no RDM constant off...
-
Page 12: Leds On / Off
6.1 Dark mode The PX796 has a switch to enable or disable the signaling diodes and range indicator. This option is usually used after configuring the device. To turn off all LEDs, set the LED switch to OFF, while to turn on the LEDs, set the LED switch to ON. -
Page 13: Montague
Montague 1. Mount a flush-mounted box (A) of standard 60mm size or drill holes in the wall. 2. Fasten the mounting plate (B) to the box (A) or wall using screws (C) and wall plugs. 3. Screw the housing with electronics to the mounting base (B) with the screws (D). -
Page 14: Connection Scheme
Connection scheme controller, e.g. PX340 RX+ RX- TX+ TX- VCK+ SYNC REMOTE 1 2 3 4 6 7 8 10 11 12 14 15 16 0-10V OUT 0-10V IN DMX+ DMX- effects, e.g. PX329 lamps PX796 in transmitter mode 12 - 24V DC power supply DMX+ DMX- PX796 in receiver mode... -
Page 15: Dimensions
Dimensions ∅87... -
Page 16: Technical Data
10 Technical data type PX796 power supply 12 – 24V DC number of DMX channels RDM protocol support transmission speed 0.8 – 830 fps output power 5 – 20 dBm frequency 2.4GHz range (receiver – transmitter) * max. 1km operating mode transmitter / receiver power consumption max. - Page 17 Podłęże, 15.05.2020 DECLARATION OF CONFORMITY PXM Marek Żupnik spółka komandytowa Podłęże 654, 32-003 Podłęże we declare that our product: Product name: Wireless DMX Product code: PX796 meets the requirements of the following standards, as well as harmonised standards: PN-EN IEC 63000:2019-01...
