  • Page 1 PY517 Receiver 4ch P GORKE (RSU-K04/H2) User manual...

  • Page 2: Table Of Contents

    7 Deleting the stored keys................11 8 Connection scheme.................12 9 Technical data..................14 Manufacturer reserves the right to make modifications in order to improve device operation. PXM Marek Żupnik sp.k. Podłęże 654 tel. +48 12 385 83 06 32-003 Podłęże mail: info@pxm.pl Rev.1-0...

  • Page 3: Description

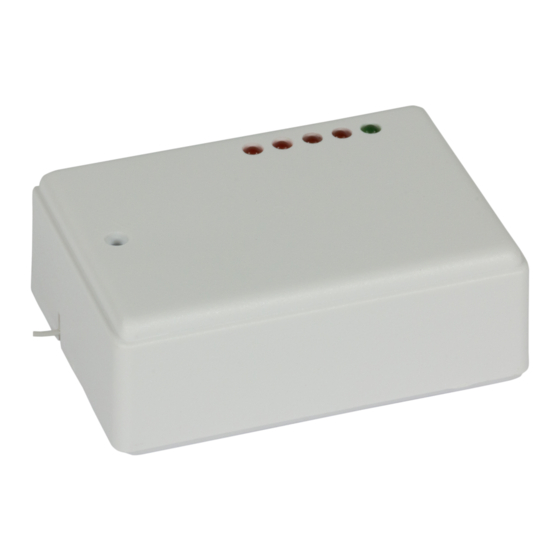

    Description PY517 is a 4-channel radio receiver designed for installation in closed rooms. The receiver uses the H2 heterodyne receiver module, which guarantees twice the range than its basic version (PY511 – RSU-K04). Each channel, which works as a relay, can work in one of four modes. To work properly with PXM devices each channel should be set to monostable or momentary mode.

  • Page 4: Safety Conditions

    Safety conditions PY517 is a device powered with safe voltage 12V DC; however, during its installation and use the following rules must be strictly observed: 1. The device may only be connected to 12V DC with current-carrying capacity compatible with technical data.

  • Page 5: Connectors And Control Elements

    Connectors and control elements control diodes for connecting channels learning button power LED antenna K1 K2 K3 K4 ZAS channel jumpers anti-tamper (NO / NC) button power supply relay outputs 12V DC max. 1A / 30V DC tamper connector output 12V DC (50mA)

  • Page 6: Adding Transmitter To Memory

    Adding transmitter to memory 1. Press and hold the learning button for 1 – 3s. 2. All LEDs will light up – release the learning button. K1 K2 K3 K4ZAS 3. Select the channel to which the transmitter is to be assigned with the learning button.

  • Page 7: Modes Of Operation

    Modes of operation Each channel can work independently in one of four operating modes. In the case of cooperation with PXM controllers, it is recommended to use the monostable or momentary mode. bi-stable – each time you press the key, the status changes to the •...
  • Page 8 interrupted or disturbed. The hold time on the channel is 10% of the time set for the monostable mode on this channel. In order for the relay to operate always for ~1s from the moment the button is released, set the time in monostable mode to ~10s (information on setting the time is available in section 6.

  • Page 9: 5.1 Changing Channel Mode

    5.1 Changing channel mode To change the operating mode of the selected channel, you need a transmitter with a key stored in the PY517 memory. To do this: 1. Press and hold the learning button for 3 – 5s. 2. All the LEDs will start blinking – release the learning button.

  • Page 10: Setting The Activation Time In Monostable Mode

    Setting the activation time in monostable mode In monostable mode, it is possible to program the relay on time in the range of ~ 1 – 255s (~ 4min 15s). To program the time you need a transmitter with a key assigned to the channel in which the change is to take place. To do this: 1.

  • Page 11: Deleting The Stored Keys

    NOTE! If the key has been programmed to several channels, then the relay activation time will be changed in all channels that were assigned to it. Deleting the stored keys The deletion of all memorized keys has no effect on the operating modes of individual channels and the switching times of relays in monostable mode.

  • Page 12: Connection Scheme

    Connection scheme Connection PY51 7 with PX340 controller to digital inputs (sink in) – “ joint plus ” power supply 12V DC RX+ RX- TX+ TX- VCK+ SYNC REMOTE 1 2 3 4 6 7 8 10 11 12 14 15 16 0-10V OUT 0-10V IN DMX controller,...
  • Page 13 Connection PY51 7 with PX340 controller to digital inputs (s ource in ) – “ joint mass ” power supply 12V DC RX+ RX- TX+ TX- VCK+ SYNC REMOTE 1 2 3 4 6 7 8 10 11 12 14 15 16 0-10V OUT 0-10V IN DMX controller,...

  • Page 14: Technical Data

    Technical data type PY517 memory capacity 40 buttons frequency 433,92MHz receiving module H2 (sensitivity -114dBm) coding variable code cooperation any sA series transmitter mounting surface number of relays modes of operation monostable time range ~1s – 4min 15s relay output max.
