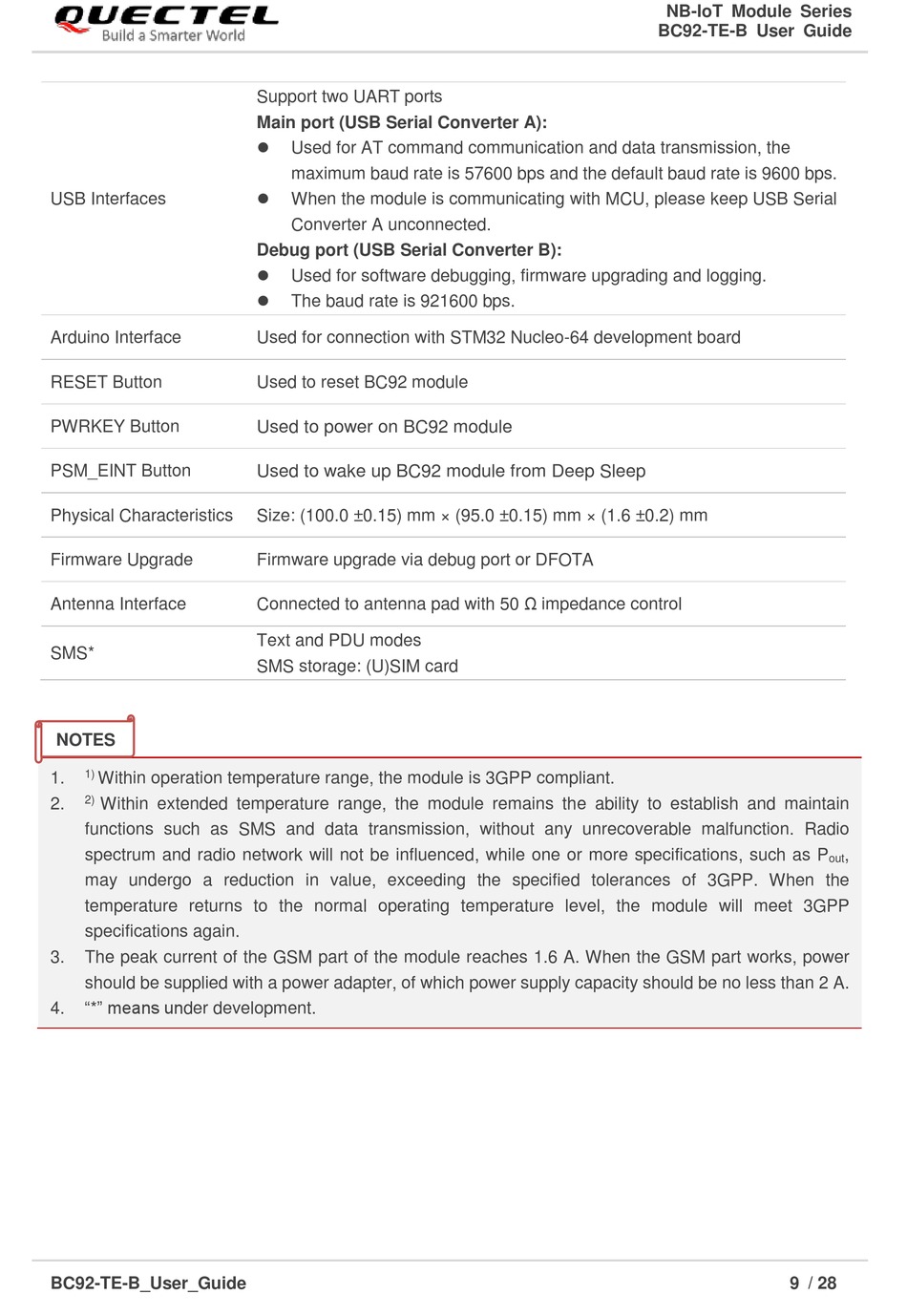

USB Interfaces
Arduino Interface
RESET Button
PWRKEY Button
PSM_EINT Button
Physical Characteristics
Firmware Upgrade
Antenna Interface
SMS*
NOTES
1)
1.
Within operation temperature range, the module is 3GPP compliant.
2)
2.
Within extended temperature range, the module remains the ability to establish and maintain
functions such as SMS and data transmission, without any unrecoverable malfunction. Radio
spectrum and radio network will not be influenced, while one or more specifications, such as P
may undergo a reduction in value, exceeding the specified tolerances of 3GPP. When the
temperature returns to the normal operating temperature level, the module will meet 3GPP
specifications again.
3.
The peak current of the GSM part of the module reaches 1.6 A. When the GSM part works, power
should be supplied with a power adapter, of which power supply capacity should be no less than 2 A.
"*" means under development.
4.
BC92-TE-B_User_Guide
Support two UART ports
Main port (USB Serial Converter A):
Used for AT command communication and data transmission, the
maximum baud rate is 57600 bps and the default baud rate is 9600 bps.
When the module is communicating with MCU, please keep USB Serial
Converter A unconnected.
Debug port (USB Serial Converter B):
Used for software debugging, firmware upgrading and logging.
The baud rate is 921600 bps.
Used for connection with STM32 Nucleo-64 development board
Used to reset BC92 module
Used to power on BC92 module
Used to wake up BC92 module from Deep Sleep
Size: (100.0 ± 0.15) mm × (95.0 ± 0.15) mm × (1.6 ± 0.2) mm
Firmware upgrade via debug port or DFOTA
Connected to antenna pad with 50 Ω impedance control
Text and PDU modes
SMS storage: (U)SIM card
NB-IoT Module Series
BC92-TE-B User Guide
9 / 28
,
