Assembly Instructions - pottery barn kids KENDALL LARGE DESK HUTCH Manual

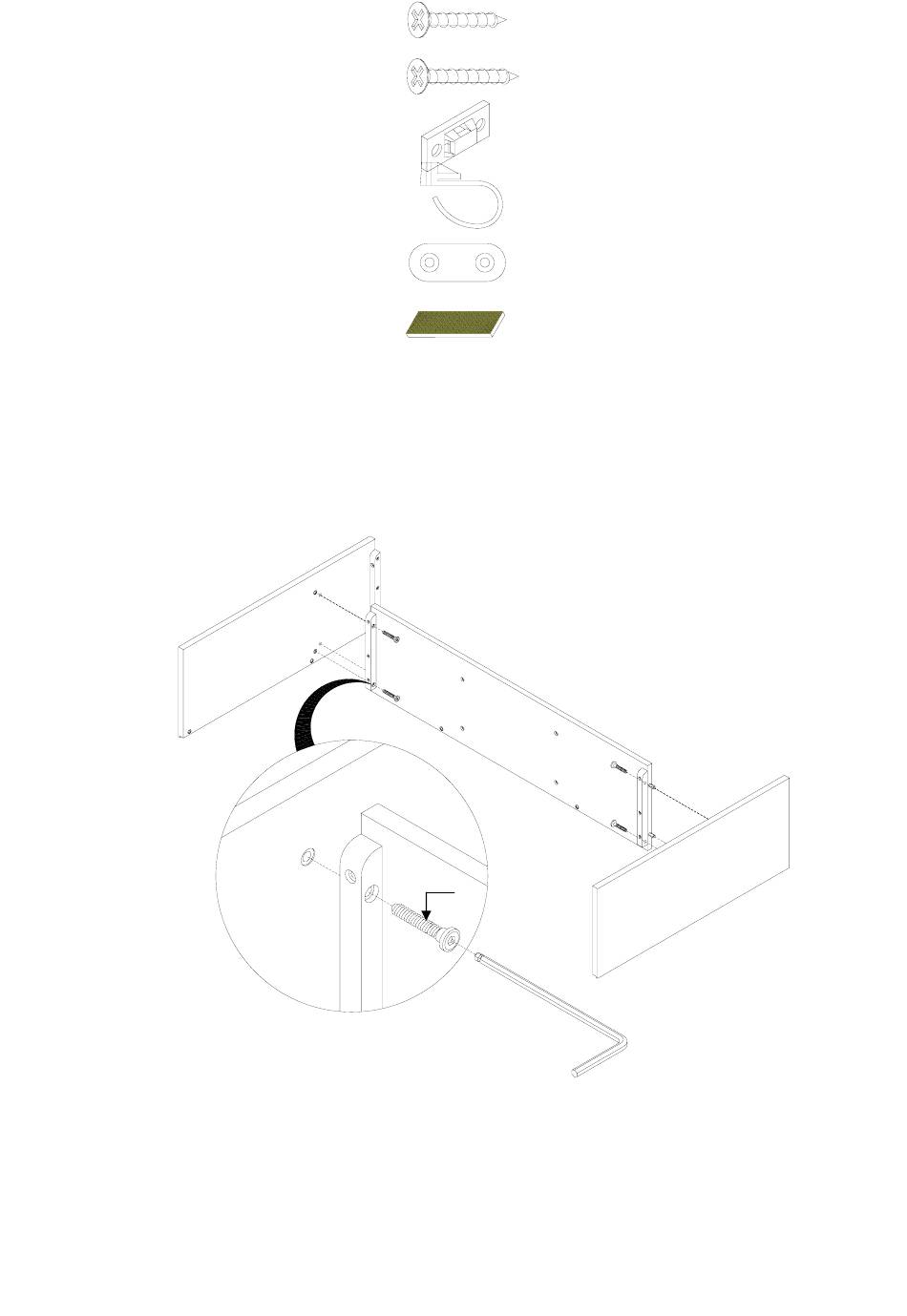

(R) #4x20mm Screw -2pcs
(S) #4x30mm Screw -2pcs
(T) Bracket -2pcs
(U) Nylon Strap -1pc
(V) Mending Plate -2pcs
(W) Felt Pad - 4pcs

ASSEMBLY INSTRUCTIONS:

1. Position the Left side board (B), the Right side board (C), and the bottom shelf (D) exactly as shown below with the
wooden dowels on the sides of the Bottom shelf (D) fully inserted into the pre-drilled holes on the side boards (B)&(C).
Insert the (4) #1/4"x1" Allen Bolt (L) through the pre-drilled holes on the (1) left side board (B) and (1) right side board(C)
and tighten securely with the 4mm Alley Key (K) provided. (Fig. 1)
(Fig. 1)
B
D
L
C
K
