PRE-ASSEMBLY:
•
Please read all instruction before beginning assembly. The illustrations provided allow for easier assembly when
used in conjunction with the assembly instructions.
•
Remove all parts and hardware from box and lay out on a carpeted or scratch-free work surface, as this will avoid
damaging any parts during assembly. The shipping box provides and ideal work surface. Do not dispose of any
contents until assembly is completed to avoid accidentally discarding small parts or hardware.
•
For your safety and ease, adult assembly by two people is recommended.
•
Save all packing materials until assembly is complete to avoid accidentally discarding smaller parts or hardware.
•
Use the parts and hardware lists to identify and separate each of the pieces included prior to starting assembly.
•
Note: Do not fully tighten all bolts until all parts are in place. Failure to follow these instructions may cause the bolts
to misalign during assembly.
•
If using power tools to aid in assembly please use caution. Power tools can damage hardware or split wood.

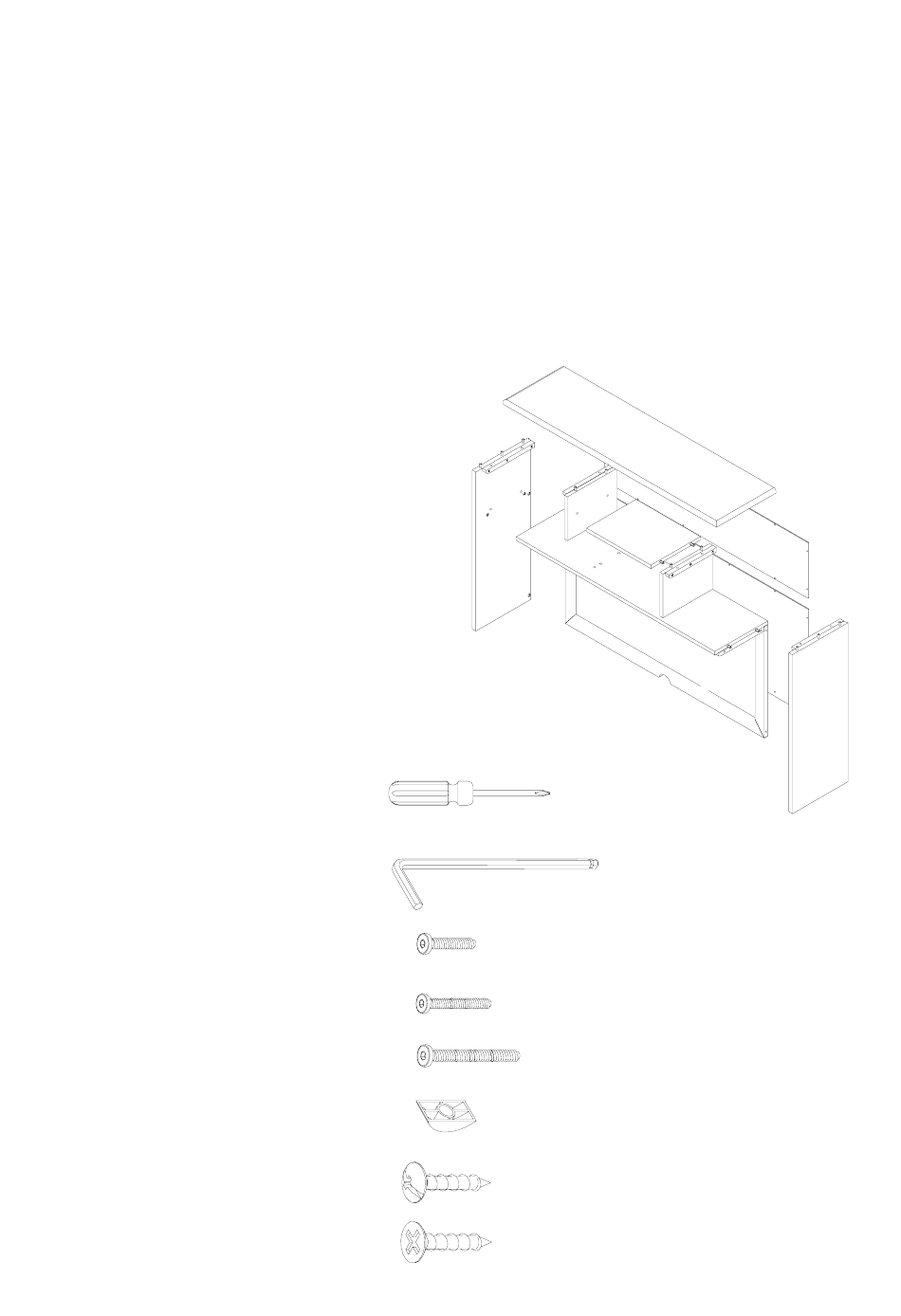

PARTS INCLUDED:
(A) Top Shelf -1pc
(B) Left Side Board -1pc
(C) Right Side Board -1pc
(D) Bottom Shelf -1pc
(E) Back Corkboard -1pc
(F) Right Divider -1pc
(G) Left Divider -1pc
(H) Center Shelf -1pc
(I) Upper Back Panel -1pc
(J) Lower Back Panel -1pc
TOOLS REQUIRED:
Phillips Head Screwdriver (not included)
HARDWARE ENCLOSED:
(K) 4mm Allen Key -1pc
(L) 1/4"x1" Allen Bolt -16pcs
(M) 1/4"x1-3/8" Allen Bolt - 2pcs
(N) 1/4"x2" Allen Bolt - 4pcs
(O) Curve Washer - 6pcs
(P) #3.5x15mm Pan Head Screw -26pcs
(Q) #3.5x15mm Flat Head Screw - 4pcs
pottery barn kids
KENDALL LARGE DESK HUTCH
A
G
H
B
I
F
D
J
E
C
Advertisement
Table of Contents
Related Manuals for pottery barn kids KENDALL LARGE DESK HUTCH
Summary of Contents for pottery barn kids KENDALL LARGE DESK HUTCH
- Page 1 KENDALL LARGE DESK HUTCH PRE-ASSEMBLY: • Please read all instruction before beginning assembly. The illustrations provided allow for easier assembly when used in conjunction with the assembly instructions. • Remove all parts and hardware from box and lay out on a carpeted or scratch-free work surface, as this will avoid damaging any parts during assembly.
- Page 2 (R) #4x20mm Screw -2pcs (S) #4x30mm Screw -2pcs (T) Bracket -2pcs (U) Nylon Strap -1pc (V) Mending Plate -2pcs (W) Felt Pad - 4pcs ASSEMBLY INSTRUCTIONS: 1. Position the Left side board (B), the Right side board (C), and the bottom shelf (D) exactly as shown below with the wooden dowels on the sides of the Bottom shelf (D) fully inserted into the pre-drilled holes on the side boards (B)&(C).
- Page 3 2. Position the Back Corkboard (E) onto the frame that you assembled in Step 1. Insert the 1/4"x2” Allen Bolt (N) through the Curve Washer (O) into the pre-drilled holes at 4 corners of the Back Corkboard (E). Screw the Bolts in but do not tighten securely.
- Page 4 4. Position the assembled divider frame (assembled in step 3) on the top of the frame (assembled in step 2) with the wooden dowels fully inserted into the pre-drilled holes on the top of the Bottom Shelf (D). Insert the (4) #1/4”x1” Allen Bolts (L) into the pre-drilled holes on the Bottom Shelf (D) and tighten securely with the 4mm Allen Key (K) provided.
- Page 5 6. Lay the hutch down with the back is facing up. Position the Upper Back Panel (I) and the Lower Back Panel (J) on the back frame of the Hutch exactly as shown below. Insert the (22) #3.5x15mm Pan Head Screws (P) into the pre-drilled holes on the Upper Panel (I) and the Lower Back Panel (J), tightening securely with Phillips Head Screwdriver (not included).
- Page 6 8. Attach the Hutch to the Kendall Large Desk by placing a Mending Plate (V) over the pre-drilled pilot holes located on the Hutch/Desk, and inserting the #3.5x15mm Flat Head Screws (Q). Fasten the connections with a screwdriver (not included). Repeat this step for the other Mending Plate (V). (Fig. 8) (Fig.
- Page 7 Anti Tip Kit Assembly Instructions: Note: For safe mounting it is essential to use the proper hardware for your wall type. The included hardware is for drywall or stud mounting only. For other wall types (ie: plaster, concrete, brick…) please consult your local hardware store. Determine the final position of the furniture piece.
