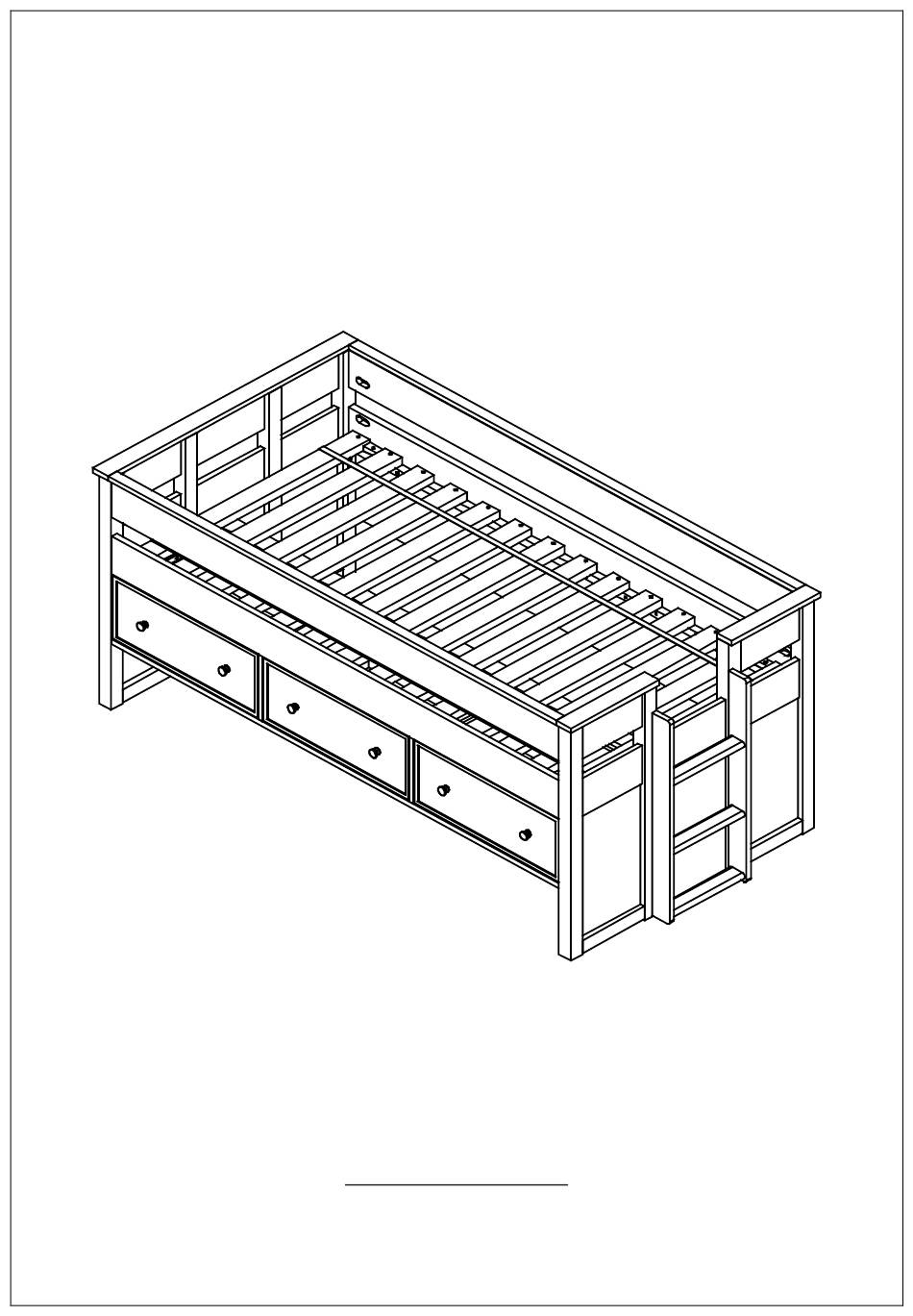

- Page 1 Elliott Twin Captain Bed www.potterybarnkids.com Date: 2016-MAR-22 Page 1 of 7 Rev:...
- Page 2 Important Safety Instructions: • Please read all instructions carefully before assembling. • For your safety, assembly by two or more adults is strongly recommended. • Keep instructions for future use. • Use only vendor supplied hardware to assemble. Using unauthorized hardware could jeopardize the structural integrity of the item.
- Page 3 Assembly Instruction Steps: 1. Remove the 3 drawers and set aside as shown below. Open the Drawers to its maximum opening Each drawer is equipped with 2 rubber stopper that prevents the drawer from being removed during normal operation During assembly, the drawer can be removed with minor force as the rubber stoppers will bend to allow the drawer to be removed When removing the drawer, it MUST be removed at a straight angle.
- Page 4 3. Assemble (A) and (B) to (D) by aligning pre-drill holes with wooden dowels as shown below. *Note: Do not fully tighten bolts (K) at this time to leave flexibility. (K) Bolt 8x (M) Spring Washer 8x (N) Flat Washer 8x (O) Half-Moon Metal Block 8x 4.
- Page 5 5. Attach (E) and (F) to (A) and (B) as shown below. *Note: Do not fully tighten bolts before BOTH (E) and (F) are assembled. Check alignments before tightening. (L) Bolt 12x (M) Spring Washer 12x (N) Flat Washer 12x Insert (L), (M) and (N) to connect (D) &...
- Page 6 7. Assemble (G) to bedframe as shown below. (P) Wood 28x 8. Put the 3 drawers back. Insert the drawer by aligning the female runner and male runner as shown below.(See Fig. A) Bend the plastic stopper a bit before push drawer all the way in (See Fig.B) *Note: It will require some force to get the drawer back into the Pedestal.
- Page 7 9. Place the assembled trundle (assembly following AI and hardware shipped with the trundle) under the storage bed. Care Instructions: • Dust often using a clean, soft, dry and lint-free cloth. • Blot spills immediately and wipe with a clean, damp, cloth. •...
