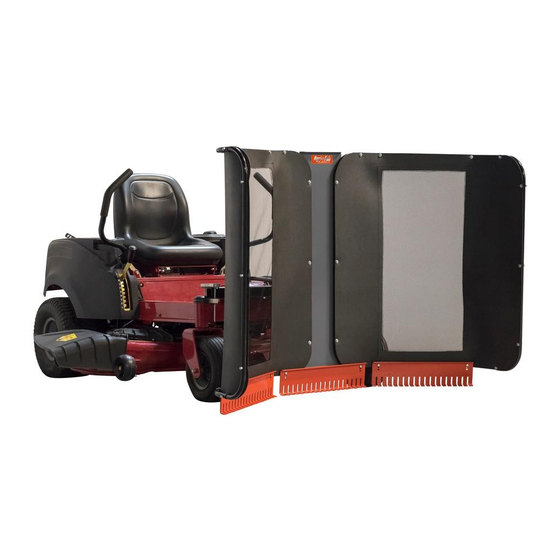

Agri-Fab Platinum 45-0550 Assembly Instructions Manual

Leaf blade
Hide thumbs

Advertisement

Quick Links

Download this manual
45-0550
Leaf BLade
the fastest way to purchase parts www.speedepart.com
FORM NO. 3-53 (01/15/2021)

Advertisement

loading
Need help?

Need help?

Do you have a question about the Platinum 45-0550 and is the answer not in the manual?

Questions and answers

Related Manuals for Agri-Fab Platinum 45-0550

Summary of Contents for Agri-Fab Platinum 45-0550

  • Page 1 45-0550 Leaf BLade the fastest way to purchase parts www.speedepart.com FORM NO. 3-53 (01/15/2021)

  • Page 2: Safety Rules

    NOTE: The Leaf Blade works best in conjunction with the Leaf Blower. NOTICE CAUTION PINCH POINT This equipment is designed for leaf removal only. Do not move other objects. Read the owner’s manual for additional operating instructions. 40240 agri-fab.com 800-448-9282 Reorder No. 3-71...
  • Page 3 CaRTON CONTeNTS - PaRTS Ref qTY PaRT NO deSCRIPTION Ref qTY PaRT NO deSCRIPTION 45814GY1 Slider Tube 45812OR1 Leaf Rake 69643GY1 Hitch Mount Assembly 48098 Anti-Scalp Wheel 45908 Mounting Bracket 2-22GY1 Wheel Support 45816GY1 Pivot Bracket 45811GY1 Bulkhead 69642GY1 Blade Mount Assembly 2-23GY1 Rake Brace 45810GY1...
  • Page 4 CaRTON CONTeNTS - HaRdWaRe SHOWN fULL SIZe NOT SHOWN fULL SIZe Ref qTY PaRT NO deSCRIPTION Ref qTY PaRT NO deSCRIPTION 43432 Hex Bolt, 3/8-16 x 2-1/2 GR5 47810 Nyloc Hex Nut, .312-18 43081 Washer, .375 x .875 x .083 45164 Hex Bolt, 1/4-20 x 2-1/4 G5 HA23162...
  • Page 5 aSSeMBLY INSTRUCTIONS STeP 2: TOOLS ReqUIRed fOR aSSeMBLY (See fIGURe 2) • Attach the hitch mount assembly (2) to the tractor (1) Adjustable Wrench frame using two U-bolts (D) secured with two (2) 7/16" Wrenches mounting brackets (3), four washers (B), and four (2) 1/2"...
  • Page 6 aSSeMBLe THe BLade MOUNT aSSeMBLY aSSeMBLe THe PUSHeR WaLL aSSeMBLIeS STeP 3: (See fIGURe 3) • Attach four pivot brackets (4) to the blade mount STeP 5: (See fIGURe 5) assembly (5) using four hex bolts (A) and Nyloc hex • Assemble the pusher wall frame by inserting two nuts (C).
  • Page 7 STeP 7: aSSeMBLe aNd aTTaCH THe WHeeLS (See fIGURe 7) • With the second assembled frame lying flat and the greater angle to the left, place a pusher wall (8) on top STeP 9: (See fIGURe 9) with the stitching facing the frame. • Attach the wheel (10) to the bottom hole in a wheel • Align the pusher wall holes with the holes in the frame support (11) using a hex bolt (I), two step bushings (J),...
  • Page 8 STeP 12: aTTaCH THe PUSHeR WaLLS TO THe (See fIGURe 12) • Stand the right pusher wall assembly (8) upside down BULkHead as shown. • Make sure the right side (less angle) of the pusher wall STeP 11: (See fIGURe 11) assembly is against the bulkhead.
  • Page 9 aTTaCH THe Leaf Rake TO THe aTTaCH THe PIvOT aSSeMBLY TO THe BULkHead BULkHead STeP 13: STeP 14: (See fIGURe 13) (See fIGURe 14) • Lay the bulkhead with the pusher wall assemblies flat. • While holding the pusher wall assembly up to • Place the rake brace (13) on the leaf rake (9), aligned the blade mount assembly (5), insert the pivot shaft to the top of the leaf rake.
  • Page 10 STeP 16: aTTaCH PUSH TUBeS TO THe BULkHead (See fIGURe 16) • Attach the two push tubes (15) together using a clevis pin (Q) and a spacer (R) between the push tubes at STeP 15: (See fIGURe 15) the end closest to the bulkhead. • With a push tube (15) level to the hitch mount • Insert a second clevis pin through the opposite side of assembly (2), insert the uncapped end of the push...

  • Page 11: Operation

    OPeRaTION eNGaGe THe Leaf BLade aSSeMBLY 1. Sit on the tractor so that your feet can reach the push tube handles. CaUTION: failure to obey the following 2. When engaging the leaf blade assembly, be prepared cautions could result in personal injury for the weight of the pusher walls to push against your or product damage: feet.

  • Page 12: Maintenance

    STORaGe adjUST THe Leaf BLade HeIGHT NOTE: If using the leaf blade on uneven terrain, raise the To store, remove the push wall assembly from the hitch leaf blade assembly one hole higher to prevent damage to mount assembly. the unit. • Engage the leaf rake so that the wheels are on the 1.
  • Page 13 This page intentionally left blank.
  • Page 14 RePaIR PaRTS fOR 45-0550 Leaf BLade CAUTION PINCH POINT 40240 NOTICE This equipment is designed for leaf removal only. Do not move other objects. Read the owner’s manual for additional operating instructions. agri-fab.com 800-448-9282 Reorder No. 3-71...
  • Page 15 RePaIR PaRTS fOR 45-0550 Leaf BLade Ref qTY PaRT NO deSCRIPTION Ref qTY PaRT NO deSCRIPTION 69642GY1 ASS'Y, BLADE MOUNT (WLDMNT) 45164 BOLT, HEX 1/4-20 X 2-1/4 G5 69643GY1 ASS'Y, HITCH MOUNT (WLDMNT) 1509-69 BOLT, HEX 1/4-20 X 1-3/4 GR5 45817GY1 SHAFT, PIVOT 23625...
  • Page 16 Agri-Fab, Inc. Unauthorized uses and/or reproductions of this manual will subject such unauthorized user to civil and criminal penalties as provided by the United States Copyright Laws.
