TECHNICALDATASHEET
ARTISAN

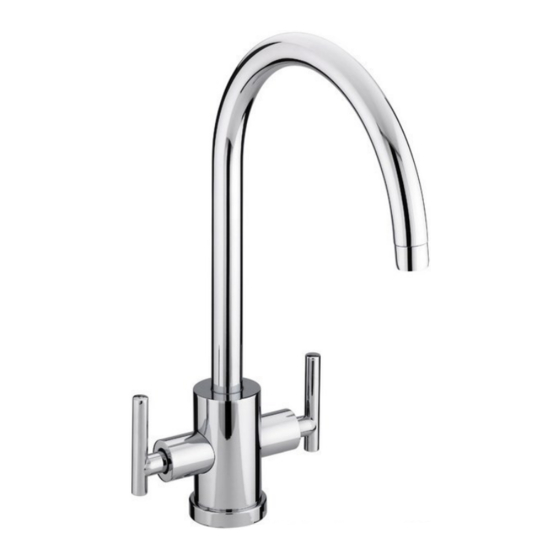

ARTISAN MONOBLOC SINK MIXER
ProductSpecification
Product Code:
Finish:
Product Type:
Construction:
Valve Type:
Supply:
Inlet Connections:
Water Pressure:
AdditionalInformation
• Dual flow.
• Supplied with metal handles.
• Chrome plated to BS EN 248.
Technical Advice:
Guarantee:
Compliance/Approvals
WRAS:
FlowRates (litres per minute)
SystemPressure
AR SNK C (mixed)
Bristan, Birch Coppice Business Park, Dordon, Tamworth, B78 1SG
Telephone: 0844 701 6274 Facsimile: 0844 701 6275
Web Site: www.bristan.com Email: enquire@bristan.com
AR SNK C
Chrome
Contemporary
Body is of brass construction
and is designed to conform to BS EN 200
¼ turn ½" ceramic disc valves
Suitable for all plumbing systems
M12 x 15mm screw-in copper tail pipes
Min. 0.5 bar, Max. 8.0 bar
For further information please call 0844 7016273 or email customercare@bristan.com.
5 years covering manufacturing faults.
Certificate No. 0601116
0.5bar
1.0bar
13.6
19.8
1.5bar
2bar
24.6
28.6
3bar
5bar
35.3
45.9
D2
