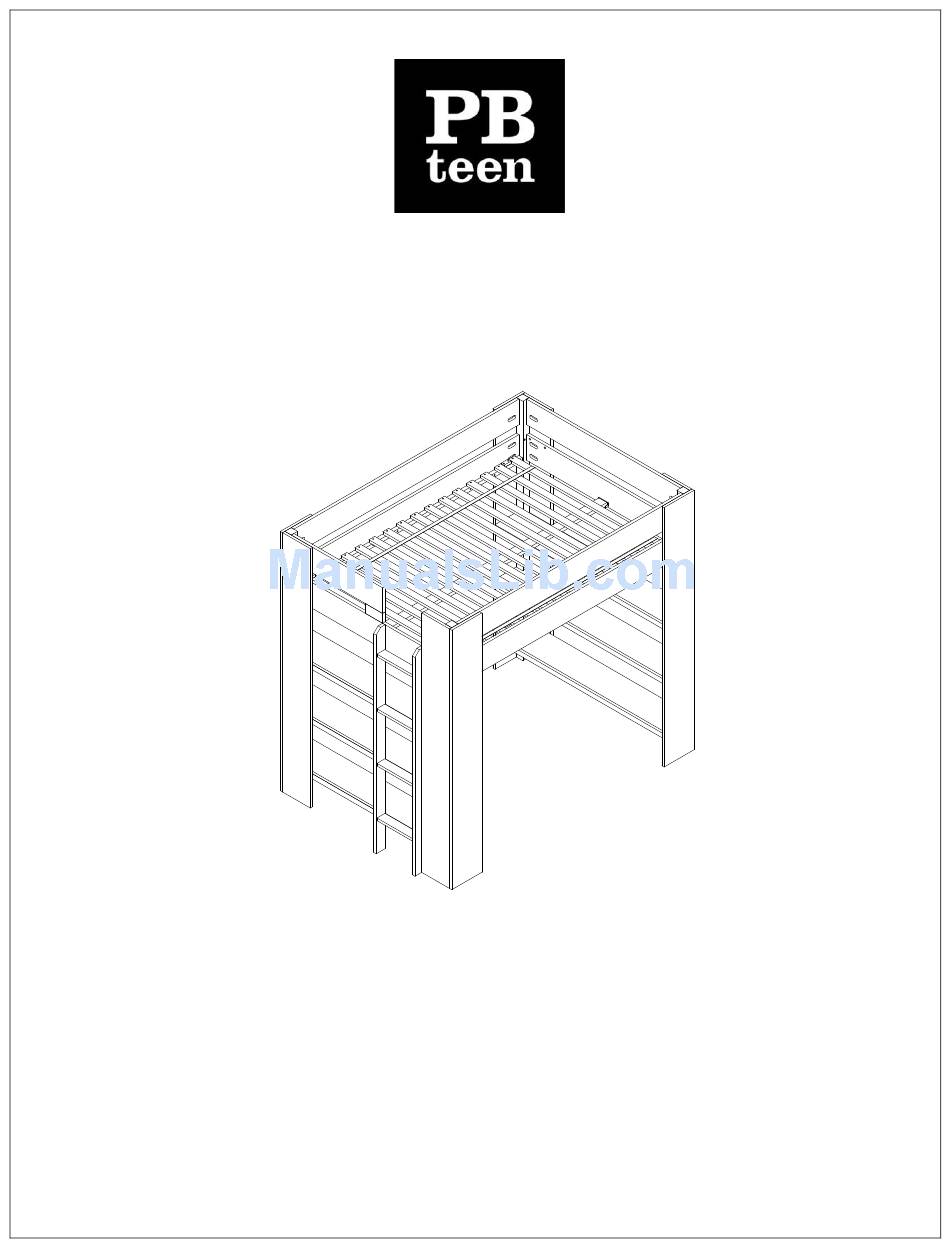

- Page 1 COSTA LOFT BED Date: 03-02-2016 www. pbteen.com Page 1 of 13 Rev:...
- Page 2 ! WARNING: . Failure to follow these warnings and assembly instructions could result in serious injury or death. To help prevent serious or fatal injuries from entrapment or falls: Read all instructions before assembling bunk bed. Before each usage or assembly, inspect bunk bed for damaged hardware, loose joints, missing parts or sharp edges.
- Page 3 Important Safety Instructions: Please read all instructions carefully before assembling. For your safety, assembly by two or more adults is strongly recommended. Keep instructions for future use. Use only vendor supplied hardware to assemble. Using unauthorized hardware could jeopardize the structural integrity of the item.
- Page 4 Hardware Included: Fitting Flat washer Spring washer Short Allen bolt M6x30 mm Medium Allen bolt Long Allen Bolt Allen key Wood Screw 4 x30 mm - 14x M6x50 mm M6x65 mm Tools Required (not included): Philips Head Screwdriver Assembly Instruction Steps: Look for the letter sticker A,B,C,D …...
- Page 5 Attach the headboard upper and lower panels (G&H) to the left and right post (A&B) by aligning the exposed wood dowels on the panel with pre-drilled holes on the post. Secure with fitting, flat washer, spring washer and medium Allen bolt (55 mm) using Allen key as shown 3.
- Page 6 4. Attach the vertical panels 1 and 4 (C&F) to the left and right post (A&B) by aligning the pre-drilled holes with inserted nuts. Secure with flat washer, spring washer and long Allen bolt (65 mm) using Allen key. 5. Attach the headboard shelves (I) to the vertical panels by aligning the pre-drilled holes with inserted nuts. Secure the shelves to vertical panels (D&E) by flat washer, spring washer and short Allen bolt (30 mm) using Allen key.
- Page 7 6. Secure the shelves (I) to vertical panels 1 and 4 (C&F) by flat washer, spring washer and short Allen bolt (30 mm) using Allen key. II. ASSEMBLY THE FOOTBOARD (A) Left post (B) Right post (J) Vertical panel 5 (K) Vertical panel 6 (L) Vertical panel 7 (M) Vertical panel 8...
- Page 8 Attach the footboard panel (N) to the left and right post (A&B) by aligning the exposed wood dowels on the panel with pre-drilled holes on the post. Secure with fitting, flat washer, spring washer and medium Allen bolt (55 mm) using Allen key as shown 9.
- Page 9 10. Attach the vertical panels 5 and 8 (J&M) to the left and right post (A&B) by aligning the pre-drilled holes with inserted nuts. Secure with flat washer, spring washer and long Allen bolt (65 mm) using Allen key 11. Attach the footboard shelves (O) to the vertical panels by aligning the pre-drilled holes with inserted nuts. Secure the shelves to vertical panels (K&L) by flat washer, spring washer and short Allen bolt (30 mm) using Allen key.
- Page 10 12. Secure the shelves (O) to vertical panels (J&M) by flat washer, spring washer and short Allen bolt (30 mm) using Allen key. 13. Attach the ladder (P) to footboard panel (N) and shelves (O) by aligning the pre-drilled holes on the panel and shelves flat washer, spring washer and short Allen bolt (30 mm) using Allen key.
- Page 11 III. Assembly the side rail, center support rail and slat roll to build up the bed 14. Attach the upper side rails (Q) to the headboard by aligning the exposed wood dowel with pre-drilled holes. Secure fitting, flat washer, spring washer and medium Allen bolt (55 mm) using Allen key as the upper side rail by shown 15.
- Page 12 16. Attach the footboard to side rails by aligning the pre-drilled holes on the footboard post with exposed wood dowels on the side rails 17. Secure the assembly by fitting, flat washer, spring washer and medium Allen bolt (55 mm) using Allen key as shown 18.
- Page 13 19. Roll out the slat roll (T) onto the inner side of side rails. 20. Secure the slat roll with wood screw using a Phillip Head Screwdriver. Assembly is completed Care Instructions: Dust often using a clean, soft, dry and lint-free cloth. ...
