Summary of Contents for PB TEEN COSTA HUTCH TWIN

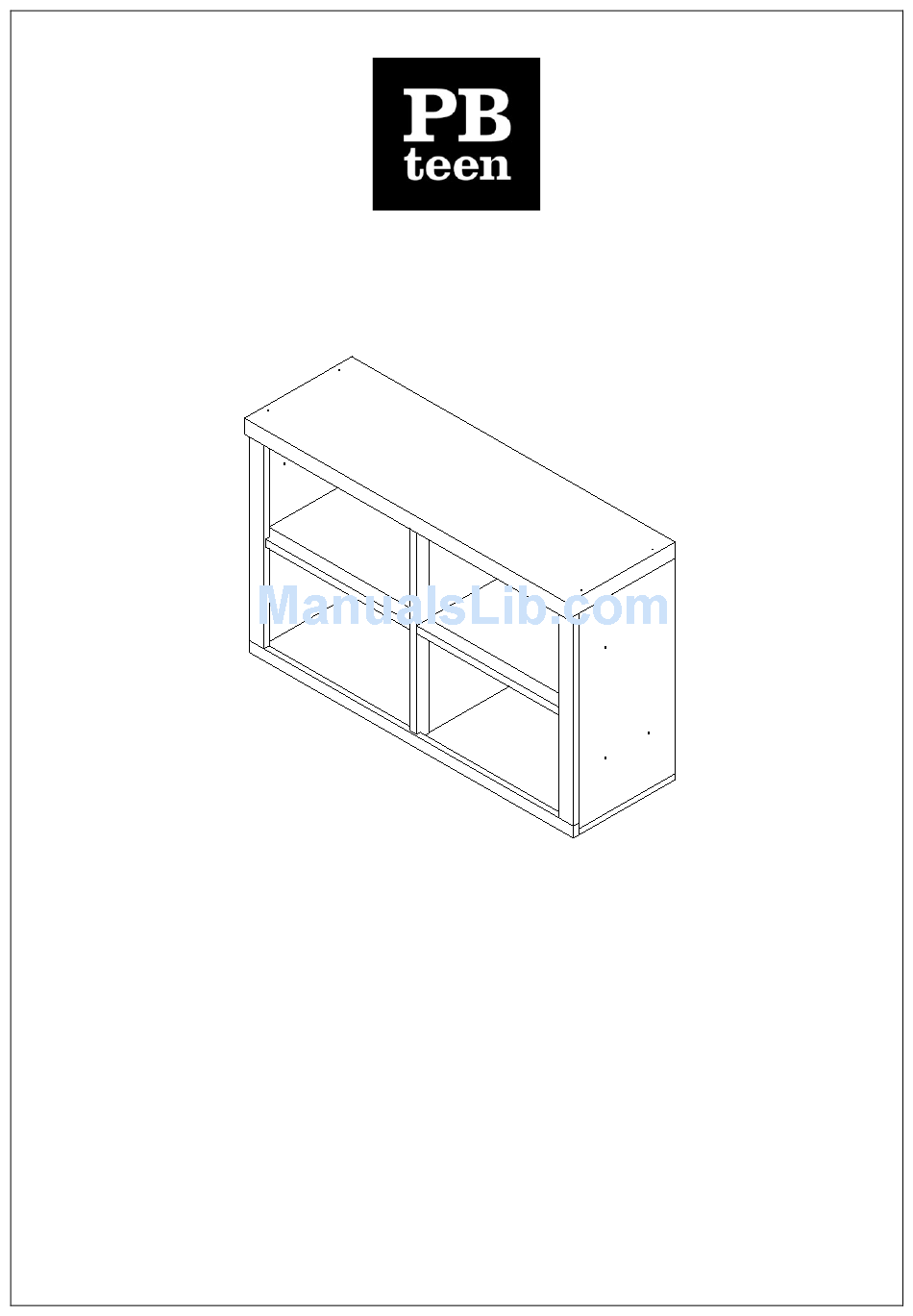

- Page 1 COSTA HUTCH TWIN Date: 03-25- 2016 www. pbteen.com Page 1 of 8 Rev:...
- Page 2 Important Safety Instructions: • Please read all instructions carefully before assembling. • For your safety, assembly by two or more adults is strongly recommended. • Keep instructions for future use. • Use only vendor supplied hardware to assemble. Using unauthorized hardware could jeopardize the structural integrity of the item.
- Page 3 Hardware Included: (I)-Flat washer (J) - Spring washer (K) - Allen bolt (L) - Allen key M6x25 mm (M)-Wood screw (N)-Connecting screw Drill bit MDF block with sleeve nut 3.5x20 mm 5 mm 50x50x19 mm Hardware from bookcases (O)-Mending plate (P) Short wood screw Tools Required (Not Included): Phillip Head Screwdriver...
- Page 4 Attached left and right side panels (B&C) to the shelf (F) by aligning the pre-drilled holes on the side panels with exposed wooden dowels on the shelf. Secure with flat washer (I), spring washer (J) and Allen bolt (K) using Allen key (L). Attach the bottom panel (D) to the side panels (B&C) and vertical panel (E) by aligning the pre-drilled holes and exposed wooden dowels on the panel.
- Page 5 Repeat above steps to attach the top panel (A) to side and vertical panel (B,C,E). Attach the back panel (G) to the back side of hutch. Secure with wood screw (M) using a Phillip Head Screwdriver. Date: 03-25- 2016 www. pbteen.com Page 5 of 8 Rev:...
- Page 6 To assembly with the bookcase. Need to drill through the holes (4) on the side panel of the bookcase using the drill bit provided and MDF block Positions need to drill thruogh Attach the drill bit to the power drill. Lay the bookcases on the floor.
- Page 7 Slowly place the hutch in between the two bookcases with the mending plate stay on top of the bookcase. Insert the connection sleeve and screws (N) into the pre-drilled holes from the bookcase and hutch as shown below. Tighten the connecting sleeve and screw together using a Phillips head screwdriver. Repeat with all remaining connecting sleeves and screws.
- Page 8 Slowly turn the bookcase and hutch upright. NOTE: Installation of the Anti Tip Kit is REQUIRED. Please follow the separate instructions to secure the bookcase and hutch to the wall, by using the tipping-restraint kit included. Assembly is completed. Care Instructions: •...
