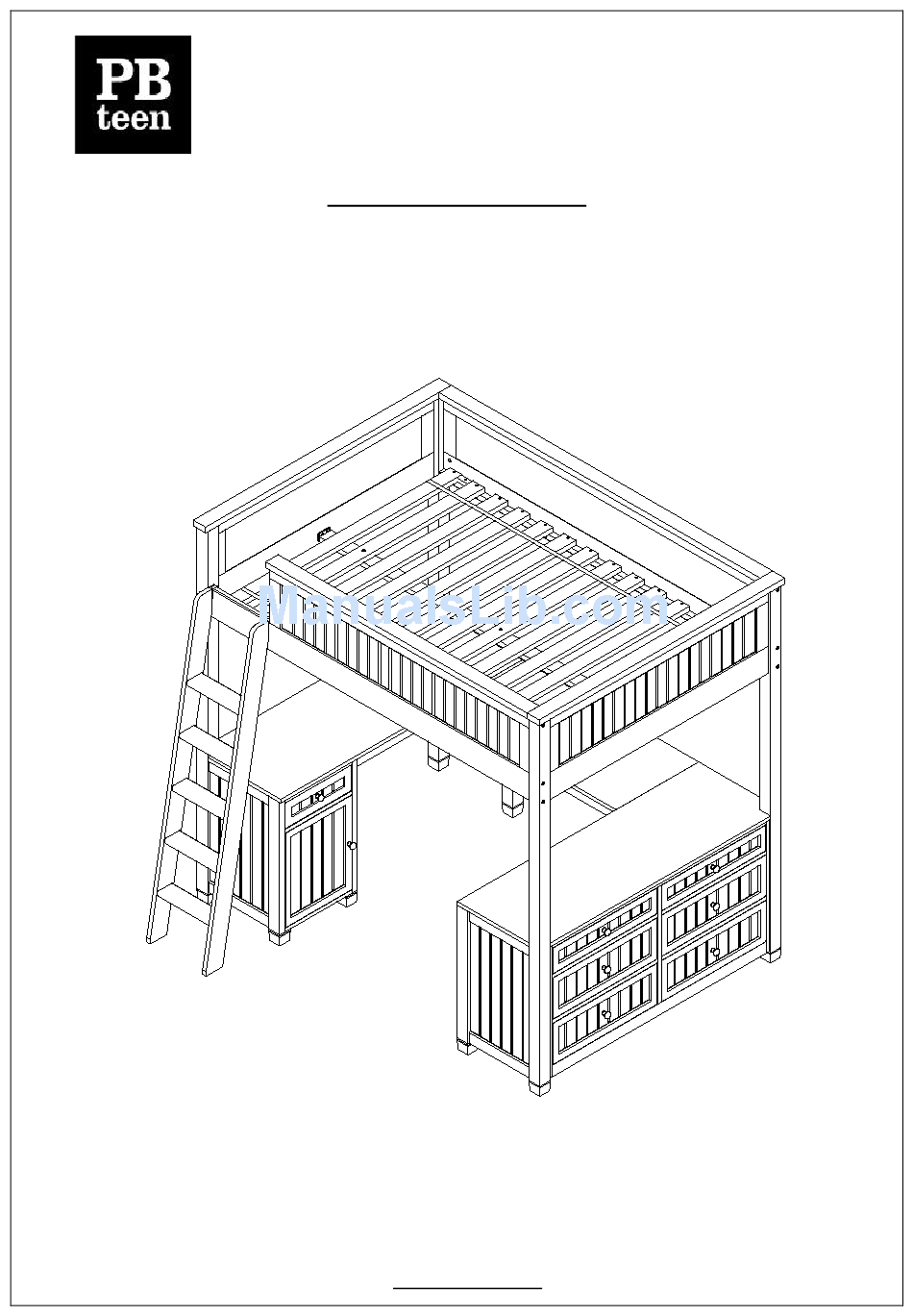

- Page 1 BEADBOARD LOFT BED ASSEMBLY INSTRUCTIONS www.pbteen.com Date: 2013-Apr.-25 Page 1 of 10 Rev:...
- Page 2 WARNING: Failure to follow these warnings and assembly instructions could result in serious injury or death. To prevent serious or fatal injuries from entrapment or falls please follow these warnings: Read all instructions before assembling this bunk bed. Before each usage or assembly, inspect bunk bed for damaged hardware, ...
- Page 3 Important Safety Instructions: • Please read all instructions carefully before assembling this loft bed. • For your safety, assembly by two or more adults is strongly recommended. • Keep these instructions for future use. • Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item.
- Page 4 Assembly Instruction Steps: 1. Remove the drawer boxes from Dresser (L) and keep the drawer boxes for later use. 2. Attach Dresser Foot (M) and Dresser Support Leg (N) to the pre-drilled holes located on the dresser bottom, as seen in the illustration below. 3.
- Page 5 6. Place the Small Desktop (I) upside down on a soft, scratch-free surface. 7. Attach Desk Post (J) to the bottom of Small Desktop (I), as seen in the illustration below. 8. Insert (2) Small Bolts (V) each with a Small Spring Washer (W) and Small Flat Washer (X) into the pre-installed metal inserts on the Small Desk (I), as seen in the illustration below.
- Page 6 15. Remove the drawer box from Nightstand (K) and keep the drawer box for later use. 16. Place the Large Desktop (H) onto Nightstand (K). 17. Insert (4) Small Bolts (V) each with a Small Spring Washer (W) and Small Flat Washer (X) from the Nightstand (K) into the metal inserts on the bottom of the Large Desktop (H).
- Page 7 Align the wooden dowels on both ends of the Rear Guardrail (D) into the pre-drilled holes located on the Headboard and Footboard (A&B) posts. Insert Barrel Nuts (T) onto the cutouts of the Rear Guardrail (D) and insert Large Bolts (P) through the Headboard and Footboard posts (A &...
- Page 8 31. Insert (3) Small Bolts (U) each with a Small Spring Washer (W) and a Small Flat Washer (X) from the interior of the Nightstand (K) into the metal inserts located on Footboard (A) post. 32. Secure with Allen Key (O). 33.
- Page 9 35. Extend Slat Roll (F) onto the bed frame. 36. Insert (4) Large Bolts (Q) each with a Large Spring Washer (R) and a Large Flat Washer (S) from the pre-drilled holes on the center of the bed slats into the metal inserts pre-installed on Support Rail (E). 37.
- Page 10 39. Attach the Ladder (G) to the opening of the Short Guardrail. Make sure that the pre-installed hooks on the ladder sit well on the opening of the Short Guardrail. 40. Insert (2) Short Screws (Z) to secure the ladder and tighten using a Philips Head Screwdriver. 41.
