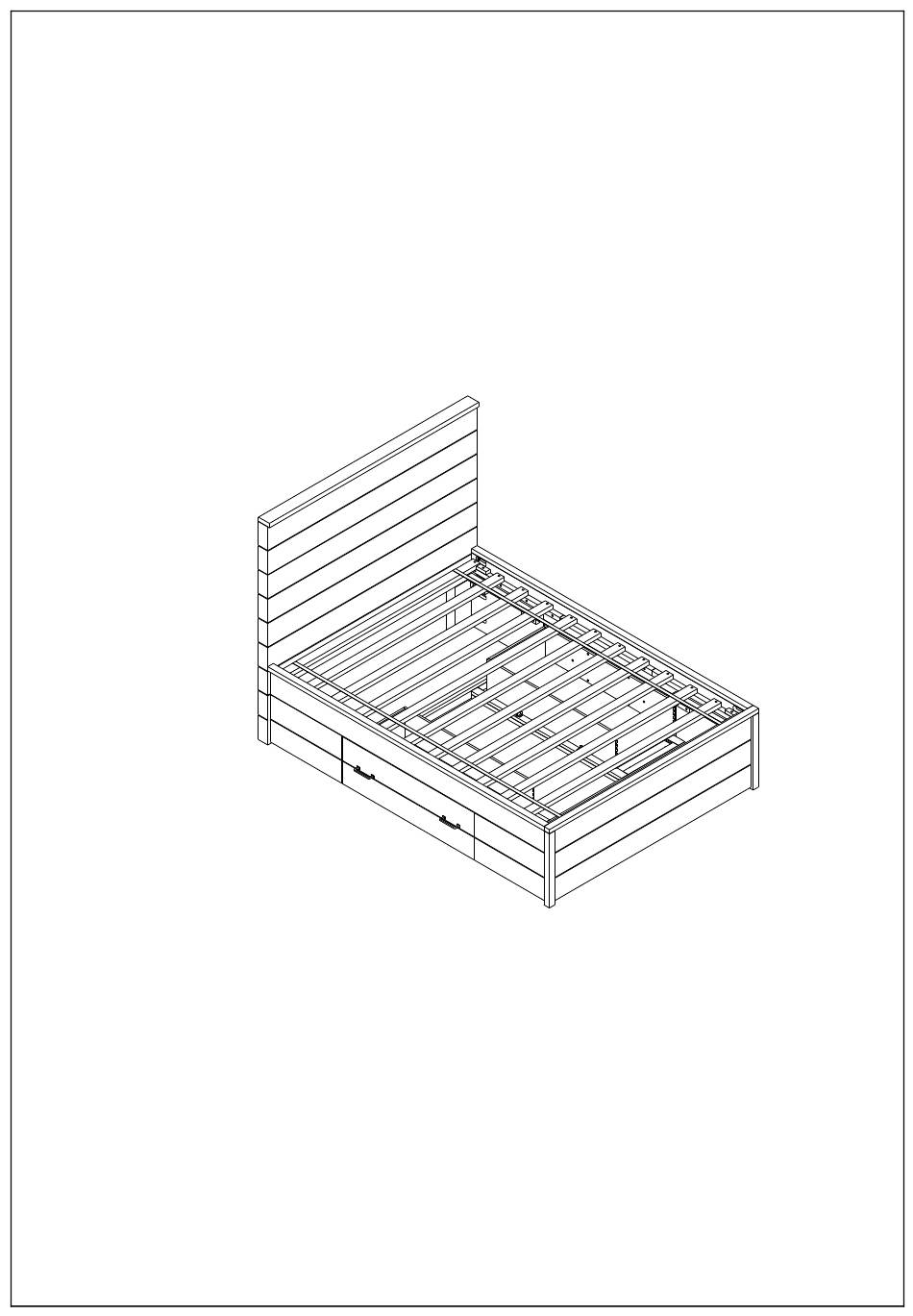

- Page 1 GRAYSON STORAGE BED Date: 2016-Jul.-08 Rev: Page 1 of 8...
- Page 2 www.potterybarnkids.com Important Safety Instructions: Please read all instructions carefully before assembling. For your safety, assembly by two or more adults is recommended. Keep instructions for future use. Use only vendor supplied hardware to assemble. Using unauthorized hardware could jeopardize the structural integrity of the item.
- Page 3 Hardware Included: (K) Ball Tip Allen Key (M) Allen Bolt (N) Allen Bolt – 1x ¼”x63mm – 8x 1/4”x38mm – 20x (L) Allen Bolt 5/16”x63mm -12 x (O)Spring Washer 5/16” - (P)Flat Washer (Q) Spring Washer (R)Flat Washer 1/4”- 5/16”-12x 1/4”...
- Page 4 Assembly Instruction Steps: Attach (B)&(C)to (A) using (K) as shown below. Attach (G&F) to (E) using (K) as shown below. Do not fully tighten . Date: 2016-Jul.-08 Rev: Page 4 of 8...
- Page 5 Attach (E)to (A)&(D) using (K) as shown below. Do not fully tighten. Attach (F&G)to (B&C&D) using (K) ,as shown below. Do not fully tighten. Date: 2016-Jul.-08 Rev: Page 5 of 8...
- Page 6 5.Attach (H)to (F)&(G). making sure the pre-drilled holes align. as shown below Do not fully tighten.. Adjust the lever(up and down) on (H) . as shown below. Date: 2016-Jul.-08 Rev: Page 6 of 8...
- Page 7 Attach (I)to (H). as shown below. Check alignments and secure all bolts with (K). Notes : Make sure the wooden drawer runners, and the rubber stoppers are properly aligned as you re-install the drawer. Attach Slat Roll (J) to the bed . Date: 2016-Jul.-08 Rev: Page 7 of 8...
- Page 8 Assembly is completed. Care Instructions: Dust often using a clean, soft, dry, lint-free cloth. Blot spills immediately, and wipe with a clean, damp cloth. We do not recommend the use of chemical cleansers, abrasives, or furniture polish on our lacquered finish.
