1

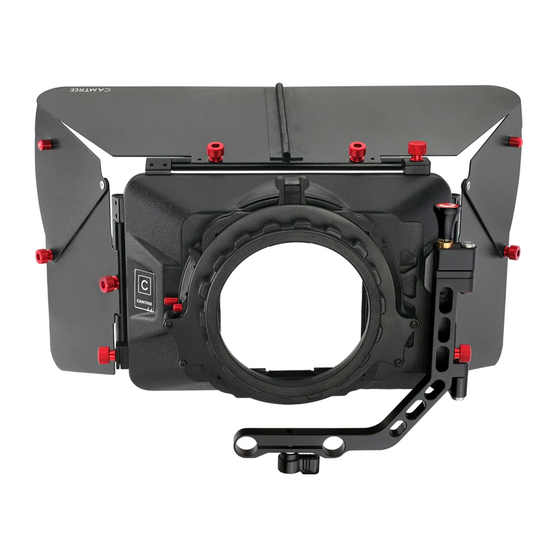

MB-20 Swing Matte Box
(C-MB-20)
A s s e m b l y M a n u a l
What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that
is listed below.
Top Barn Door
Side Barn Door
4x4 Non-Rotating
4x4 Rotating Filter Holder
Filter Holder
Knicker
Swing Away Bracket
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.
Advertisement
Related Manuals for Camtree MB-20
Summary of Contents for Camtree MB-20
- Page 1 MB-20 Swing Matte Box (C-MB-20) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
- Page 2 NOTE: The filter holder supports the use of 4x4” square filters, kit includes 2pcs of filter holders, one is rotating 180° and another is non-rotating. YOUR MB-20 SWING AWAY WIDE ANGLE MATTE BOX ALL DRESSED UP AND READY TO GO!
