Wildfire Long-Throw WF-401F Operation Manual

High intensity uv-a lighting fixture
Hide thumbs
Table of Contents

Advertisement

Quick Links

Operation Manual
High Intensity UV-A Lighting Fixture
WF-401F

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Long-Throw WF-401F and is the answer not in the manual?

Questions and answers

Related Manuals for Wildfire Long-Throw WF-401F

Summary of Contents for Wildfire Long-Throw WF-401F

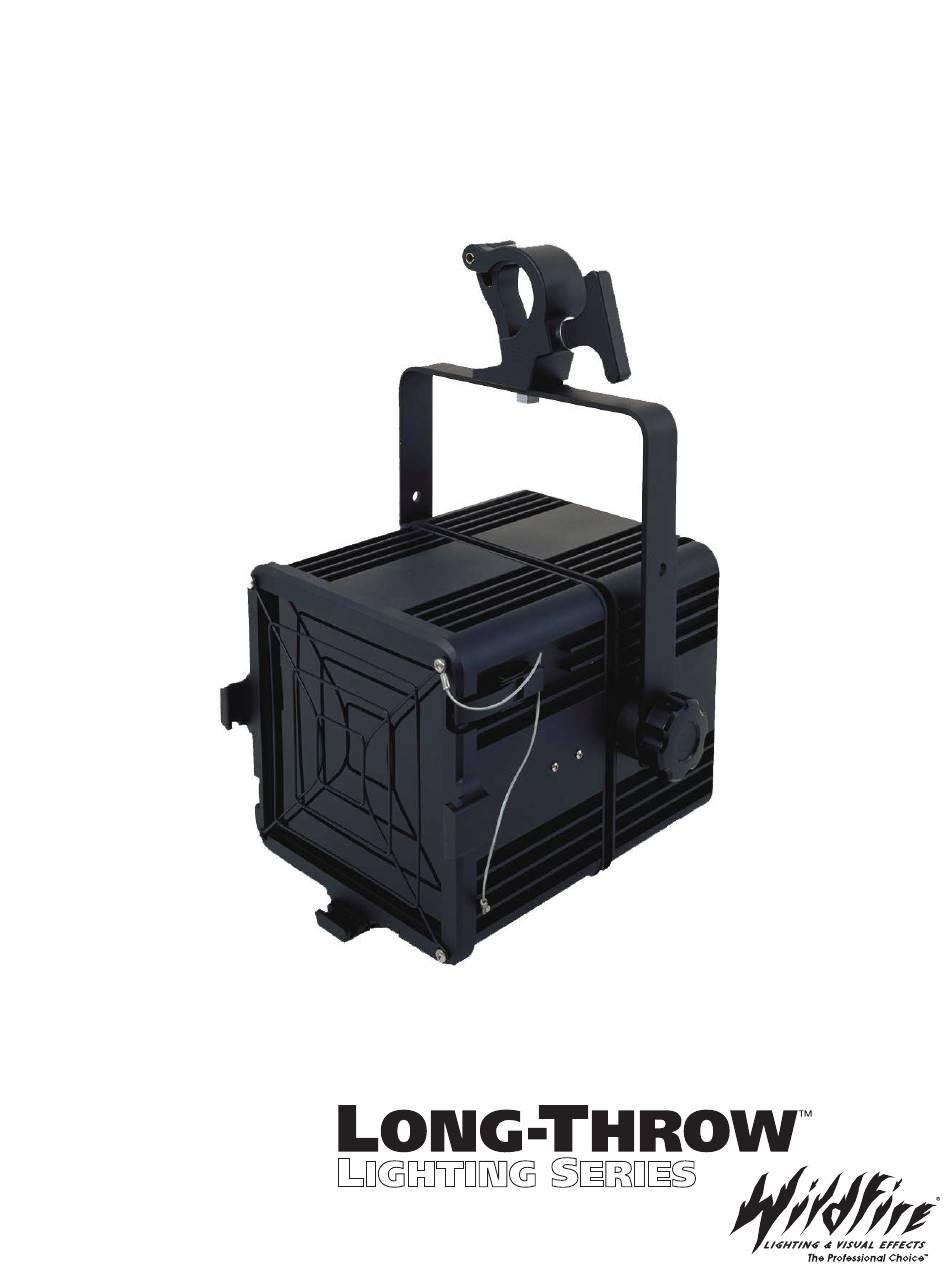

  • Page 1 Operation Manual High Intensity UV-A Lighting Fixture WF-401F...

  • Page 2: Table Of Contents

    Table of Contents Introduction Safety Statements Specifications Setup & Operation Unpacking Installation Operation Maintenance & Troubleshooting Lamp Replacement Cleaning Troubleshooting Diagrams Line View Exploded View Part List Schematic Spectral Transmission Graph Photometrics Chart...

  • Page 3: Introduction

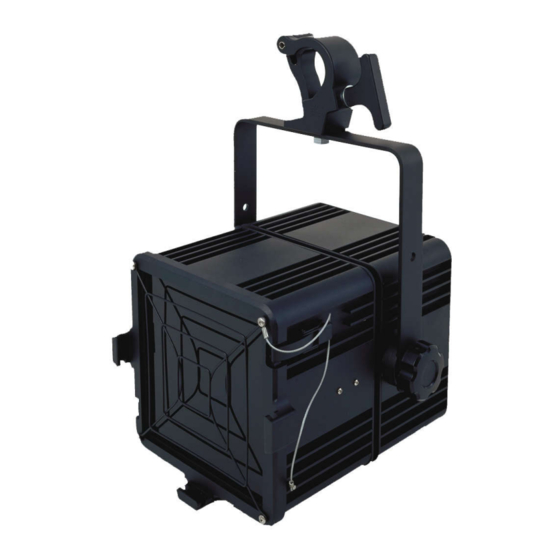

    Congratulations on your purchase of a Wildfire 401F Long-Throw UV-A Lighting Fixture. Designed to powerfully illuminate fluorescent objects across a 115° field the Wildfire 401F has become the first choice for lighting professionals around the world. Please take a moment to read this manual thoroughly before attempting to operate this fixture.

  • Page 4: Specifications

    120VAC / 50Hz.. 240VAC / 50Hz. 240VAC / 60Hz. Circuit Protection: 7 Amp Thermal Over-current Breaker Switch Lamp: Wildfire IronArc™ 400-Watt Metal Halide Model WF-L100 (1000 Hr. Rated) Beam: 115° Reflector: Specular Hammertone Aluminum Lens: 8” UV-A Transmission Filter Glass...

  • Page 5: Setup & Operation

    Setup & Operation Unpacking Unpack the fixture and carefully inspect for any signs of physical damage. Report any damage to Wildfire or your local distributor immediately. Included with each unit should be the following items: 1. Pipe mounting clamp, designed to attach the fixture to a 11/2” to 2” pipe truss 2.

  • Page 6: Maintenance & Troubleshooting

    If the fixture is still not working properly contact Wildfire or your local distributor. The effect is not working anymore – Try changing the lamp. The lamp in your Wildfire fixture is rated at 1000 hours. This does not necessarily mean that the lamp will “burn out” or not light after 1000 hours it may continue to burn for much longer period of time however the amount of UV it produces will be reduced considerably causing the effect to appear as though it isn’t working.

  • Page 7: Diagrams

    Diagrams Line View 15.15 10.10 10.63 8.20 14.00 12.76 14.80...

  • Page 8: Exploded View

    Exploded View Capacitor & Ignitor Reference...

  • Page 9: Part List

    Part # Safety Screen FAB-0077 Front lens Assembly ASM-0003 Draw Latch HAR-0076 Safety Switch ELE-0014 Reflector RFL-004 Wildfire IronArc 400 Watt Metal Halide UV Lamp WF-L100 Socket Bracket FAB-0056 Lamp Socket ELE-0040 Ballast Divider Plate FAB-0122 Component Plate FAB-0115 Rectangular Washer...

  • Page 10: Schematic

    Schematic PANEL RESET ENABLE LAMP TIMER POWER SWITCH & 7 AMP CIRCUIT BREAKER REMOTE RESET 100/277 SAFETY ENABLE POWER LED SWITCH PS-MH400IK Ballast GRND LAMP 400W CAPACITOR IGNITOR PS-MH400HJ Ballast PS-MH400(F)(G) Ballast...

  • Page 11: Spectral Transmission Graph

    Spectral Transmission Graph 100% VISIBLE LIGHT UV-B UV-A IR-A IR-B WAVELENGTH /NM Photometrics Chart 115° Flood Distance in Feet Meters Beam Diameter Feet 31.39 62.79 94.18 125.58 156.97 188.36 219.76 251.15 282.55 313.94 345.33 Beam Diameter Meters 9.57 19.10 28.70 38.30 47.90 57.40...
  • Page 12 5200 West 83rd Street, Los Angeles, CA 90045 310-645-7787 800-937-8065 Fax: 310-645-9009 www.wildfirefx.com mail@wildfirefx.com Wildfire and its symbol are registered trademarks of Wildfire, Inc. Los Angeles, CA The Professional Choice Long Throw and IronArc are trademarks of Wildfire, Inc. Los Angeles, CA 2001 Wildfire, Inc.
