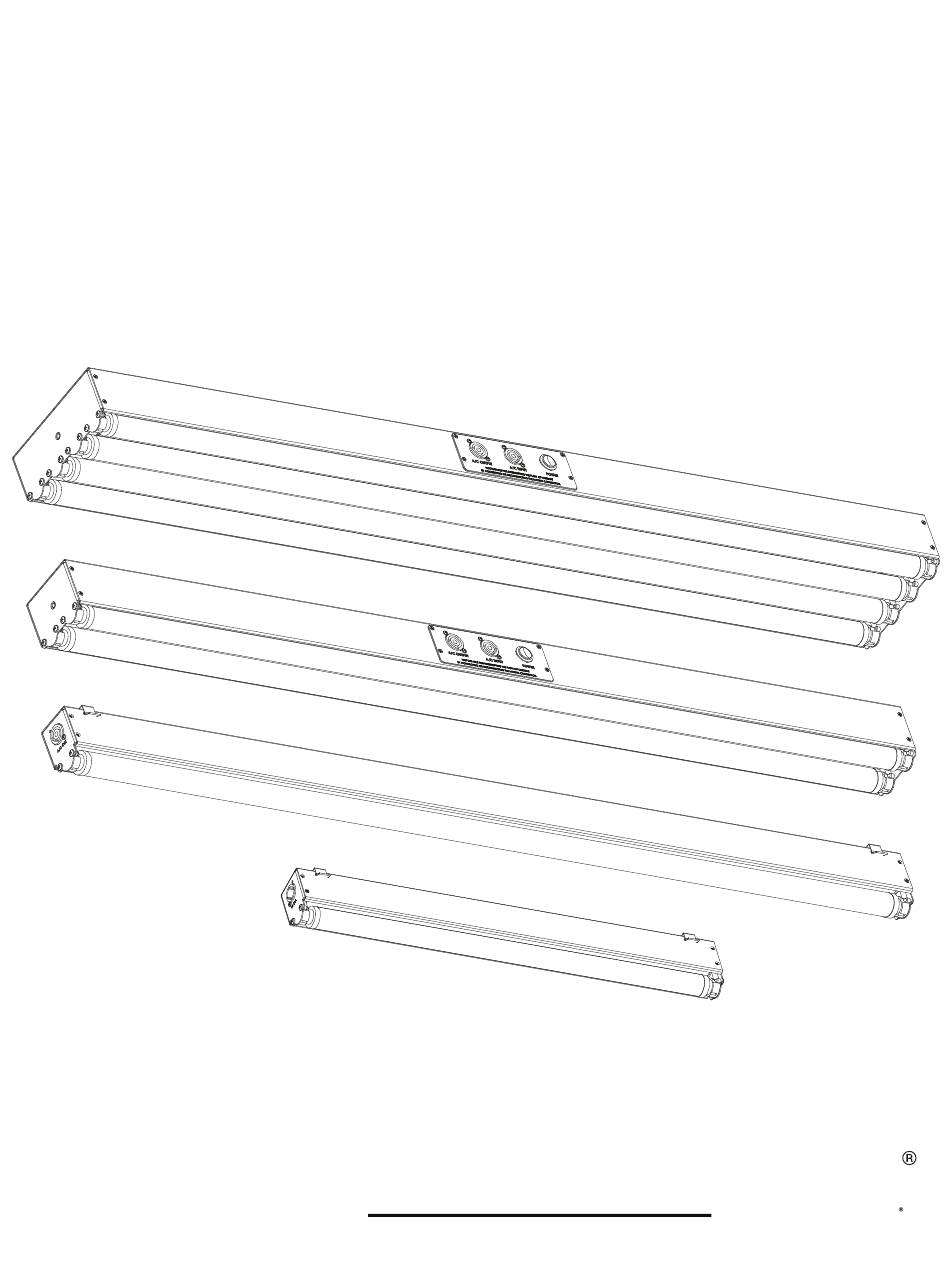

- Page 1 Operation Manual Ultraviolet LED Lighting Fixtures UB-44 UB-42 UB-41 UB-21 LTRA LADE BY WILDFIRE...
-
Page 2: Table Of Contents
Table of Contents Introduction Safety Information Specifications Setup and Operation Unpacking Optional Accessories Setup Maintenance & Troubleshooting Lamp Replacement Cleaning Troubleshooting Diagrams Isometric & Line Views UB-44 Isometric & Line Views UB-42 Isometric & Line Views UB-41 Isometric & Line Views UB-21 Exploded View &... -
Page 3: Introduction
Introduction Congratulations on your purchase of an UltraBlade LED lighting series fixture by Wildfire. These powerful and versatile ultraviolet LED lighting fixtures feature Wildfire’s SableLED UV LED tube lamps. Each UltraBlade LED fixture is precision engineered to provide you with years of trouble-free service. Please take a moment to read this manual thoroughly before attempting to operate this fixture improper set-up, use or servicing may cause damage to the fixture and/or lamps and void the warranty. -
Page 4: Specifications
IP-20 Indoor use Warranty: Three Year Parts and Labor Standard Equipment: Wildfire SableLED UV LED Tube Lamps, Spring Mounting Clips, PowerCON Power Out Cable Connector Optional Accessories: 147-021 Truss Clamp (All Models) 147-002 Safety Cable (All Models) 147-041 Floor Stand Kit (UB-42 & UB-44) 147-040 Adjustable L Bracket Kit (UB-42 &... -
Page 5: Setup And Operation
Setup & Operation Unpacking Unpack the fixture and carefully inspect it for any signs of physical damage. Report any damage to Wildfire or your local distributor immediately Optional Accessories: Truss Clamp – These clamps when attached to both of the optional adjustable mounting brackets allows you to mount the fixture to a standard 2”... -
Page 6: Maintenance & Troubleshooting
Maintenance & Troubleshooting LED Lamp Replacement Turn the power switch to the off position and unplug the fixture. If this is not possible then steps should be taken that would allow the fixture to remain in an off state while re-lamping. Holding the lamp firmly with two hands, one hand near each end of the lamp, rotate the lamp about its long center-line axis, one quarter (1/4) turn either clockwise or counter-clockwise. -
Page 7: Diagrams
Diagrams Isometric & Line Views UB-44 48.37" 48.12" 7.0" 6.75" 3.12"... -
Page 8: Isometric & Line Views
Isometric & Line Views UB-42 48.37" 48.12" 3.75" 3.50" 3.12"... - Page 9 Isometric & Line Views UB-41 48.37" 48.12" 2.0" 3.12" 3.25"...
-
Page 10: Isometric & Line Views
Isometric & Line Views UB-21 24.37" 24.12" 2.0" 3.12" 3.25"... -
Page 11: Exploded View & Part List
Exploded View & Part List UB-44-1 QTY. PART # PART NAME QTY. PART# PART NAME 106-050 Connector, Cable, PowerCON, Power Input 104-129-03 Housing UB-44 104-138-01 Housing End, UB-44 104-135-02 Housing Plate, UB-42 & 44 PowerCON 107-003 Cord, Power, 16 AWG, 9 121-003 Screw, M, PHL, PH, 4-40 x 3/8”... -
Page 12: Exploded View & Part List Ub-44-2
Exploded View & Part List UB-44-2 QTY. PART # PART NAME QTY. PART# PART NAME 104-137-02 Housing Plate, UB-42 & 44, Hardwire 104-129-03 Housing UB-44 104-138-01 Housing End, UB-44 121-095 Screw, M, PHL, 4-40 x 1/4”, 100 ° , 18-8 SS 104-145-01 Cover Wiring, UB-44 121-076... - Page 13 Exploded View & Part List UB-42-1 QTY. PART # PART NAME QTY. PART# PART NAME 106-050 Connector, Cable, PowerCON, Power Input 104-127-03 Housing UB-42 104-132-02 Housing End, UB-42 104-135-02 Housing Plate, UB-42 & 44 PowerCON 1 107-003 Cord, Power, 16 AWG, 9’ 121-003 Screw, M, PHL, PH, 4-40 x 3/8”...
-
Page 14: Exploded View & Part List
Exploded View & Part List UB-42-2 QTY. PART # PART NAME QTY. PART# PART NAME 104-137-02 Housing Plate, UB-42 & 44 Hardwire 104-127-03 Housing UB-42 121-095 104-132-02 Housing End, UB-42 Screw, M, PHL, 4-40 x 1/4”, 100 ° , 18-8 SS 104-143-02 Cover, Wiring, UB-42 121-076... -
Page 15: Exploded View & Part List
Exploded View & Part List UB-41-1 QTY. PART # PART NAME QTY. PART# PART NAME 106-050 Connector, Cable, PowerCON, Power Input 108-004 Socket Lamp G13 Base 121-017 Screw, SM, PHL, PH, #8 x 3/8” 18-8 SS 107-003 Cord, Power, 16 AWG, 9’ 142-004 Lamp, LED, SableLED, T8, 365nm, 48”, 15W 104-130-02... -
Page 16: Exploded View & Part List
Exploded View & Part List UB-41-2 QTY. PART # PART NAME QTY. PART# PART NAME 108-004 Socket Lamp G13 Base 121-076 Standoff, 3/16” Hex, F-F, 4-40 x 1 3/4” 121-017 Screw, SM, PHL, PH, #8 x 3/8” 18-8 SS 104-134-01 Housing End, UB-21 &... -
Page 17: Exploded View & Part List
Exploded View & Part List UB-21-1 QTY. PART # PART NAME QTY. PART# PART NAME Housing End, UB-21 & UB-41, Input 104-130-02 106-053 Connector, Panel, PowerCON, Power Output Socket Lamp G13 Base 108-004 104-140-02 Cover, Wiring, UB-21 Screw, SM, PHL, PH, #8 x 3/8” 18-8 SS 121-017 121-076 Standoff, 3/16”... -
Page 18: Exploded View & Part List
Exploded View & Part List UB-21-2 QTY. PART # PART NAME QTY. PART# PART NAME Housing End, UB-21 & UB-41, Hardwire 121-025 Screw, SM, PHL, PH #8 x 1”, 18-8SS 104-134-01 Socket Lamp G13 Base 108-004 104-140-02 Cover, Wiring, UB-21 Screw, SM, PHL, PH, #8 x 3/8”... -
Page 19: Schematic
Schematic, UB-44-1 AC INPUT AC OUTPUT POWER SWITCH BLACK WHITE GREEN... -
Page 20: Schematic Ub-44-2
Schematic, UB-44-2 BLACK 100-240V WHITE GREEN GRND... -
Page 21: Schematic
Schematic, UB-42-1 & UB-42-2 AC INPUT AC OUTPUT POWER SWITCH BLACK WHITE GREEN BLACK 100-240V WHITE GREEN GRND... -
Page 22: Schematic
Schematic, UB-41-1 & UB-41-2 AC INPUT AC OUTPUT BLACK WHITE GREEN BLACK 100-240V WHITE GREEN GRND... -
Page 23: Schematic
Schematic, UB-21-1 & UB-21-2 AC INPUT AC OUTPUT BLACK WHITE GREEN BLACK 100-240V WHITE GREEN GRND... -
Page 24: Spectral Output Graph
Wildfire Lighting Three Year Limited Warranty Wildfire Lighting warrants to the original owner or retail customer, that for a period of three years from the date of delivery of any Wildfire Fixture; whether used in a portable or permanent installation, such fixtures will be free from defects in material and workmanship under normal use and conditions. - Page 25 2908 Oregon Ct. Suite G1, Torrance, CA 90503 P: 310.755.6780 800.937.8065 F: 310.755.6781 wildfirelighting.com mail@wildfirelighting.com 2019 Wildfire, Inc. 215-040-05...
