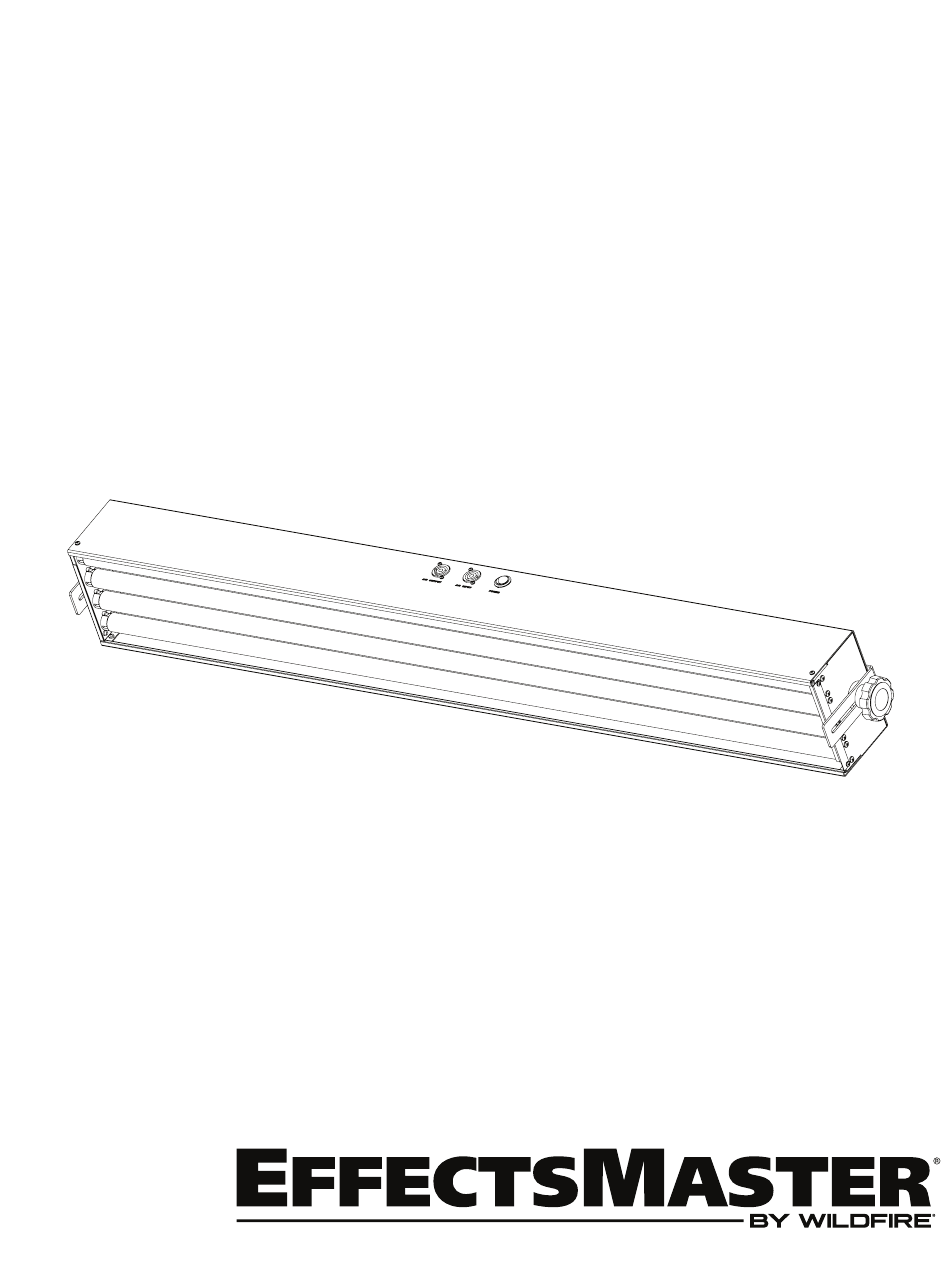

- Page 1 Operation Manual Ultraviolet Fluorescent Lighting Fixtures EM-44V...
-
Page 2: Table Of Contents
Table of Contents Introduction Safety Information Specifications Setup and Operation Unpacking Optional Accessories Setup Operation Maintenance & Troubleshooting Lamp Replacement Cleaning Troubleshooting Diagrams Isometric & Line Views Exploded View & Part List Schematic Spectral Output Graph Photometrics Chart Limited Warranty... -
Page 3: Introduction
Introduction Congratulations on your purchase of an Effects Master VHO Series fixture by Wildfire. This 4 lamp black light powerhouse features proprietary VHO electronic ballasting and polished Everbrite reflectors for maximum state- of-the-art performance. Each Effects Master VHO fixture is precision engineered to provide you with years of trouble free service. -
Page 4: Specifications
6’ 16/3 SOW with PowerCON in and male Edison Power Connections: Neutrik PowerCON In and Out Power Linking: 3 Units at 120VAC Lamps: Four Wildfire SableLux F32T8BLB Lamps (Not included) Peak Spectra Output: 368nm With Wildfire SableLux Lamps Installed. Lamp Life: 8,000 Hrs. Weight: 17.60 lbs./7.98 kg. -
Page 5: Setup And Operation
Setup & Operation Unpacking Unpack the fixture and carefully inspect it for any signs of physical damage. Report any damage to Wildfire or your local distributor immediately. Included with each unit should be the following items: 1. Two “L” shaped mounting brackets with one 1/2” mounting hole for mounting the fixture to a standard c-clamp and two 3/8”... -
Page 6: Maintenance & Troubleshooting
Maintenance & Troubleshooting Lamp Replacement Refer to Fixtures Specifications on page 4 for information on selecting the proper replacement lamp for your fixture. Unplug the fixture. If this is not possible then steps should be taken that would allow the fixture to remain in an off state while re-lamping. -
Page 7: Diagrams
Diagrams Isometric & Line Views 51.37” 48.25” 4.25” 6.5”... -
Page 8: Exploded View & Part List
Exploded View & Part List QTY. PART # PART NAME QTY. PART# PART NAME 104-066-05 Housing Effects Master VHO 106-051 Receptacle, PowerCON 1, Power-In NAC3MPA-1 104-060-03 Cover Housing Side VHO 106-053 Receptacle, PowerCON 1, Power-Out NAC3MPB-1 121-005 Screw, M, PHL, PH, 6-32 x 1/4” 18-8 SS 110-007 to 010 Ballast, (120V)(220V)(100V)(277V) 126-002-03... -
Page 9: Schematic
Schematic, EM-44V AC INPUT AC OUTPUT POWER SWITCH BLACK BLACK WHITE WHITE GREEN GREEN BROWN ELECTRONIC BALLAST YELLOW ORANGE BLUE PURPLE 9 AMP FUSE... -
Page 10: Spectral Output Graph
Spectral Output Graph With Wildfire SableLux BLB Lamps VISIBLE LIGHT UV-B UV-A WAVELENGTH /NM Photometrics Chart Model EM-44V With SableLux Lamps Distance in Feet Meters 76.0 151.9 303.8 455.7 607.7 759.6 911.5 Beam Angle Feet 23.1 46.3 92.5 138.8 185.2 231.5... -
Page 11: Limited Warranty
Wildfire, Inc. Three Year Limited Warranty Wildfire, Inc. warrants to the original owner or retail customer, that for a period of three years from the date of delivery of any Wildfire Fixture; whether used in a portable or permanent installation, such fixtures will be free from defects in material and workmanship under normal use and conditions. - Page 12 2908 Oregon Ct. Suite G1, Torrance, CA 90503 P: 310.755.6780 800.937.8065 F: 310.755.6781 wildfirelighting.com mail@wildfirelighting.com 2017 Wildfire, Inc. 215-007-03...
