Summary of Contents for Wildfire EM-23S

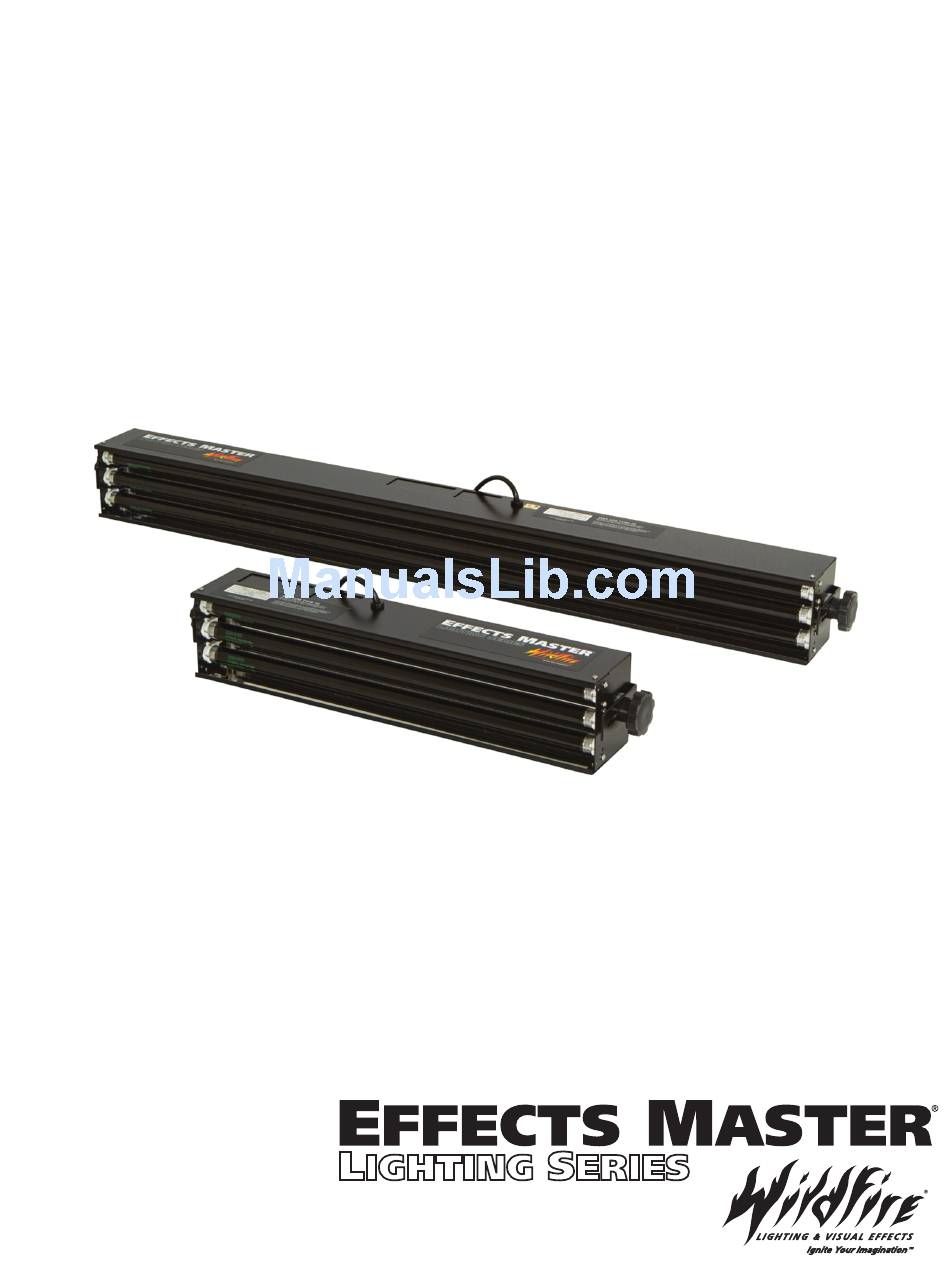

- Page 1 Operation Manual Ultraviolet Fluorescent Lighting Fixtures EM-23S EM-43S...
-
Page 2: Table Of Contents
Table of Contents Specifications Introduction Unpacking Optional Accessories Setup Maintenance & Troubleshooting Lamp Replacement Cleaning Troubleshooting Diagrams Isometric & Line Views Exploded View & Part List, EM-42S Exploded View & Part List, EM-22S Schematic Spectral Output Graph Photometrics Chart Limited Warranty... -
Page 3: Specifications
F40T(12)(10)(8) Non Energy saver Type Lamps Lamp Life: 8,000 Hrs. Beam: 40’ Throw, 165° Spread Reflector: Polished Everbright Aluminum Peak Spectra Output: 368nm With Wildfire SableLux Lamps Installed. Optimum Operating Temperature: 50° F to 100° F Weight: EM-23S: 9.95 lbs./4.51 kg. EM-43S: 15.75 lbs./7.14 kg. -
Page 4: Introduction
Unpacking Unpack the fixture and carefully inspect it for any signs of physical damage. Report any damage to Wildfire or your local distributor immediately. Included with each unit should be the following items: 1. Two “L” shaped mounting brackets with one 1/2” mounting hole for mounting the fixture to a standard c-clamp and two 3/8”... -
Page 5: Maintenance & Troubleshooting
Maintenance & Troubleshooting Lamp Replacement Refer to Fixtures Specifications on page 4 for information on selecting the proper replacement lamp for your fixture. Unplug the fixture. If this is not possible then steps should be taken that would allow the fixture to remain in an off state while re-lamping. -
Page 6: Diagrams
Diagrams Isometric & Line Views 5.00" 24.12" 4.32" 27.37" 5.00" 48.12" 4.32" 51.37"... -
Page 7: Exploded View & Part List, Em-42S
Exploded View & Part List EM-43S QTY. PART # PART NAME QTY. PART # PART NAME 104-065-03 Housing, 4' 121-017 SS, PHL, PH, #8, 3/8", 18-8 SS 104-059-03 Cover, Housing, Side 141-002 Lamp,SableLux Flouresent, 4' (Optional Lamps) 121-005 Screw, M, PHL, PH, 6-32 x 3/8" 18-8 SS 121-036 Nut, Nylock, 6-32, 18-8 SS 126-003-03... -
Page 8: Exploded View & Part List, Em-22S
Exploded View & Part List EM-23S QTY. PART # PART NAME QTY. PART # PART NAME 104-064-02 Housing, 2' 121-017 SS, PHL, PH, #8, 3/8", 18-8 SS 104-059-03 Cover, Housing, Side 141-001 Lamp, Fluoresent, 2' (Optional Lamps) 121-005 Screw, M, PHL, PH, 6-32 x 1/4" 18-8 SS... -
Page 9: Schematic
Schematic, EM-23S & EM-43S 100-220V BLACK WHITE GRND GREEN BLUE BLUE BROWN ELECTRONIC BALLAST BROWN YELLOW YELLOW ORANGE ORANGE... -
Page 10: Spectral Output Graph
Spectral Output Graph With Wildfire SableLux BLB Lamps UV-B UV-A VISIBLE LIGHT WAVELENGTH /NM Photometrics Chart Model EM-23S With Narva Lamps Model EM-43S With SableLux Lamps Distance in Feet Meters Distance in Feet Meters Beam Angle Feet 76.0 151.9 303.8 455.7... -
Page 11: Limited Warranty
Limited Warranty Wildfire, Inc. warrants to the original owner or retail customer, that for a period of three years from the date of delivery of any Wildfire Fixture; whether used in a portable or permanent installation, such fixtures will be free from defects in material and workmanship under normal use and conditions.
