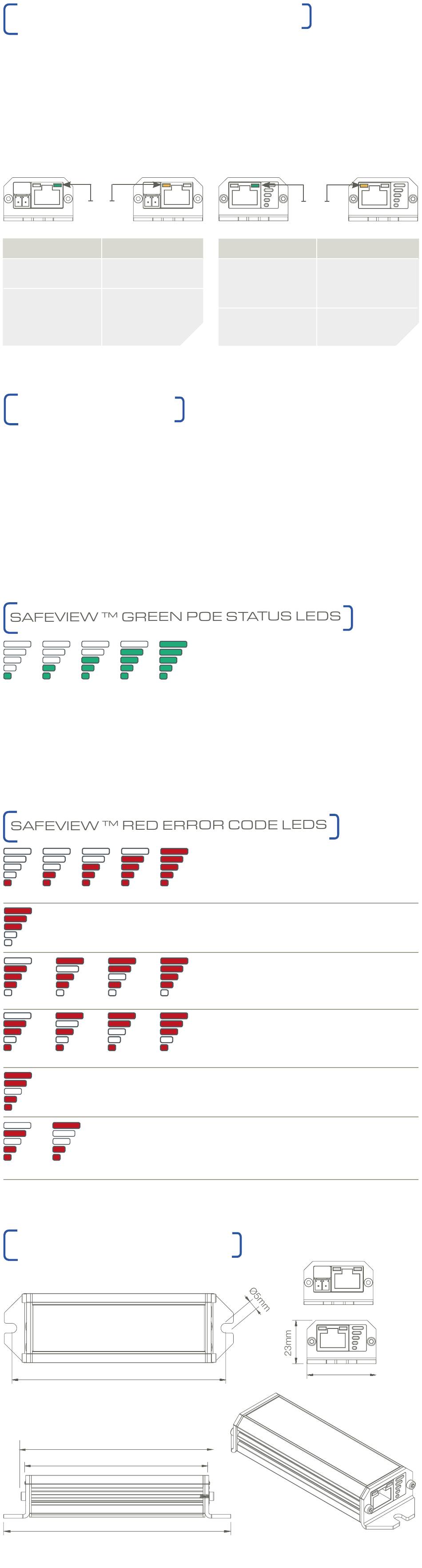

Veracity LONGSPAN VLS-1P-B Quick Start Manual page 2

ETHERNET AND LONGSPAN LEDS
| The tables below show the Ethernet and
LONGSPAN interface ports LED status
on both Base and Camera devices.
|
The green LONGSPAN LED may blink
quickly while connecting.
BASE
+ _
Green
LED
ETHERNET LEDS FUNCTION
RJ45 Green
On
RJ45 Yellow
On
Flash
SAFEVIEW ™ LEDS
| SAFEVIEW™ warning and error codes
are very rarely displayed in typical
installations.
| However, they can assist you to quickly
resolve any installation issues that may
occasionally arise.
5 10 15
Green LEDs show POE power available for
camera (or other POE-compliant device) in watts.
The power level is displayed after the camera
side unit has powered up.
5 10 15
Overload Short-circuit Signature High-temp
Overload Short-circuit Signature High-temp
Wiring Equipment
LONGSPAN DIMENSIONS
CAMERA
+ _
Yellow
LED
Power
Power Good
Link / Activity
Link Established
Network Activity
20 25
20 25
111mm
100mm
96mm
120mm
| For extremely long runs, it may take a
few seconds to optimise the link.
| For more detailed connection information
please refer to the current LONGSPAN
datasheet on www.veracityglobal.com
BASE
Green
LED
LONGSPAN LEDS FUNCTION
RJ45 Green
On
Flash
Blink
RJ45 Yellow
On
Flash
| The maximum POE power available for
connected devices is detected and
displayed automatically.
| SAFEVIEW™ LEDs display status and
diagnostic information for both the local
and remote unit.
In normal operation, the SAFEVIEW™ LEDs
display power available in flashing or steady green.
ON = POE enabled to camera.
FLASH = POE available but not enabled, no
compliant device detected.
Consider fitting a Veracity 57V DC power supply
if the power displayed is less than your camera
requires.
If LONGSPAN detects an error or fault, a
diagnostic code will flash red on SAFEVIEW™
POE power draw has exceeded limit.
Power source must be upgraded.
Voltage too low, POE disabled. Check voltage
and polarity of power supply.
POE to camera refused or disconnected due to
error as indicated.
POE over LONGSPAN refused or disconnected
due to error as indicated.
POE over LONGSPAN enabled but no link.
Check cable length, wiring, and equipment.
Cable wiring error / inferior equipment detected,
connection refused.
CAMERA
Yellow
LED
Power
100Mbps
10Mbps
No link
Link / Activity
Link Established
Network Activity
+ _
36mm
