NOTE:
PLEASE COUNT AND INSPECT ALL PIECES BEFORE DISPOSING OF ANY CARTON OR PACKING MATERIALS.
COMPONENTS
REF#
QTY.
1
1
2
1
3
1
HARDWARE BAG (Part No. DS111)
REF#
QTY.
E1
20
E2
8
E3
6
Replacement Parts not included in assembly
REF#
QTY.
R1
1
R2
1
R3
1

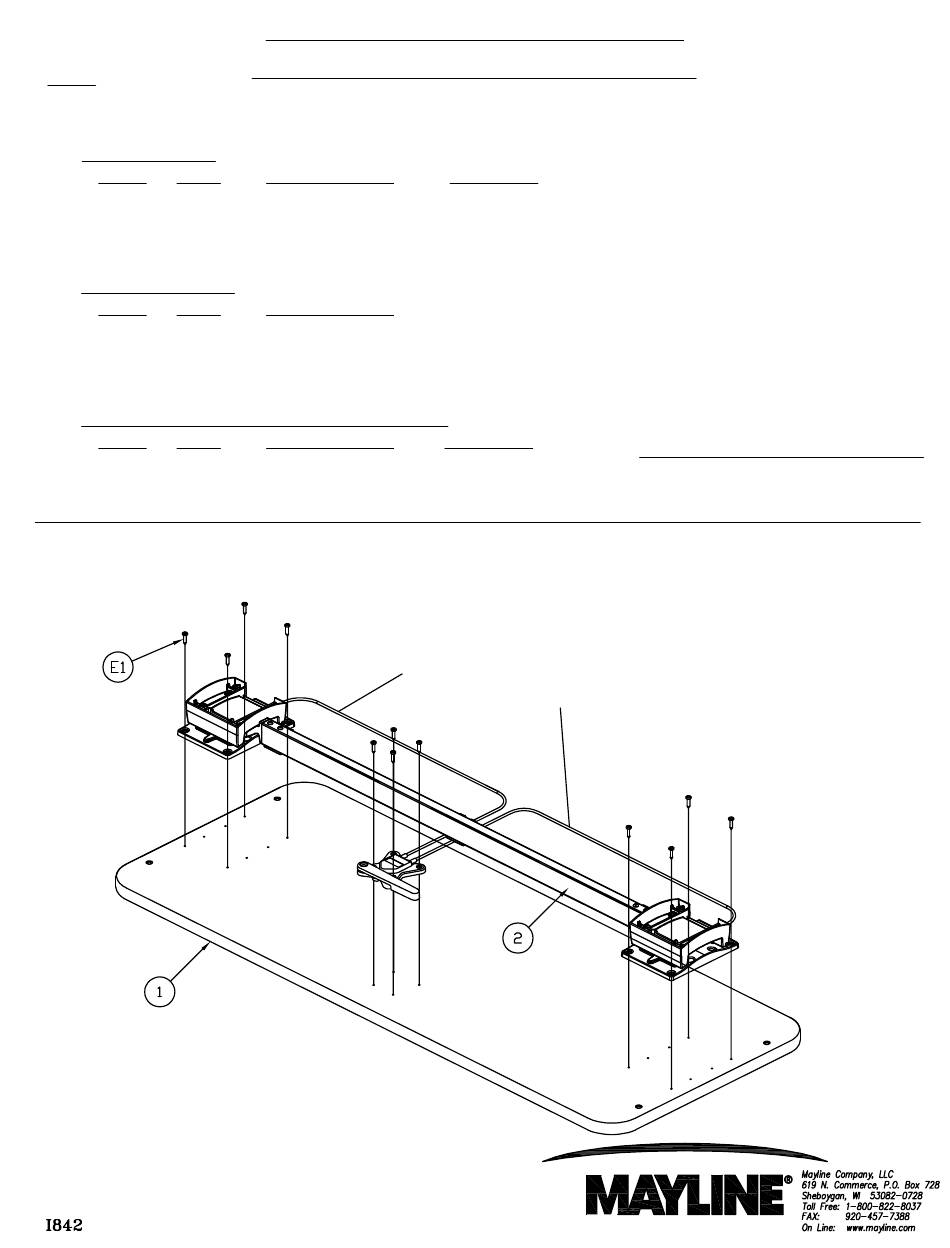

1. Place Top (1) face down on a clean flat surface. Attach Mech/Handle Assembly (2) onto Top
using 12 Screws (E1). **
REV 02
09/08/15
P/N
ASSEMBLY INSTRUCTIONS
COHERE FLIP & NEST TABLE
When ordering components, specific color and/or size information may be required.
Contact a Mayline Customer Service Representative. 1-800-822-8037
DESCRIPTION
Top
Mech/Handle Assy
Leg Assembly
DESCRIPTION
Screw, #12 x 1" PHS
Screw, 1/4-20 x 1/2" PHS
Cable Clip & Screw, #6 x 1/2" PHS
DESCRIPTION
Caster Standard
Caster Premium
Pull Handle, Yoke
PLACE MECH ASSY WITH CABLES
PART NO.
CALL ~~**
** Denotes Color Code
CALL~~
~~Denotes Size
CALL ~~**
PART NO.
DS108
DS109
DS469
**IMPORTANT**
OPPOSITE SIDE OF HANDLE.
(1)
Recommended tools for Assembly:
#3 Phillips bit for larger screws.
#2 Phillips bit for smaller screws.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mayline Cohere 1842
Summary of Contents for Mayline Cohere 1842
- Page 1 COHERE FLIP & NEST TABLE NOTE: PLEASE COUNT AND INSPECT ALL PIECES BEFORE DISPOSING OF ANY CARTON OR PACKING MATERIALS. When ordering components, specific color and/or size information may be required. Contact a Mayline Customer Service Representative. 1-800-822-8037 COMPONENTS REF# QTY.
- Page 2 2. Rotate the handle assembly to unlock, then rotate the Mech assembly up 90 degrees. Attach additional 8 Screws (E1) into the Top. 3. Attach Leg Assembly (3) onto the Mech Assembly using 8 Screws (E2). 4. Layout cable on one side similar as shown below and attach 2 or 3 Cable Clips (E3) to Top using Screw (E3).
- Page 3 OPERATING INSTRUCTIONS 1. Rotate Top Up - Rotate handle to unlock and lift table top up 90 degrees. 2. Rotate Top Down - Rotate handle to unlock and lower table top down 90 degrees. Replacement Parts not included in assembly Extra inserts on the underside of the top are for optional ganging kit 10GA &...
