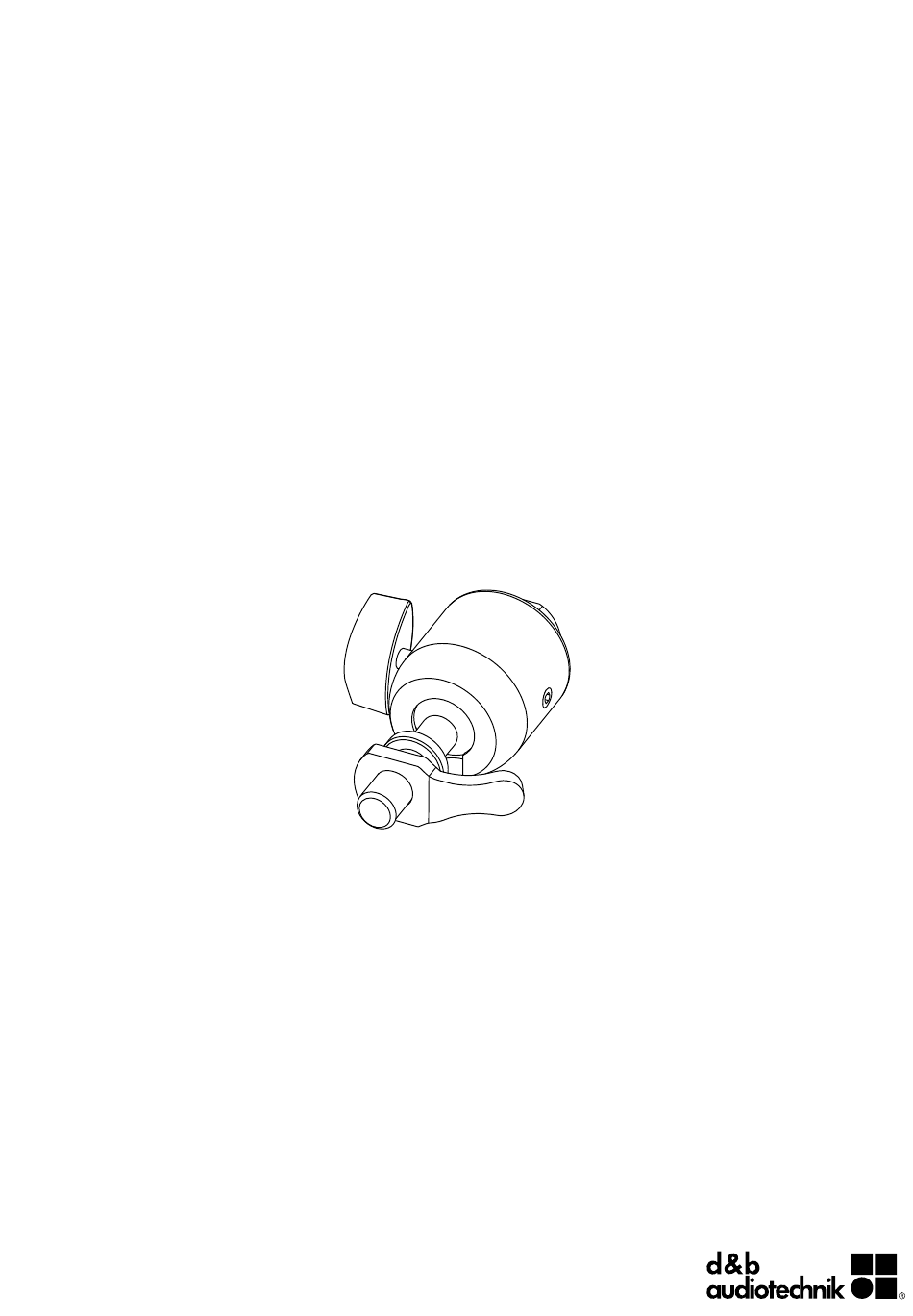

- Page 1 Z5356 E4/E5 Ball joint adapter Mounting instructions (1.2 EN)
- Page 2 General information Z5356 E4/E5 Ball joint adapter Mounting instructions Version: 1.2 EN, 03/2013, D2964.EN.01 Copyright © 2013 by d&b audiotechnik GmbH; all rights reserved. Keep this manual with the product or in a safe place so that it is available for future reference.
- Page 3 Contents Z5356 Mounting instructions........4 1.1. Safety precautions............4 1.2. Intended use..............4 1.3. Assembly..............4 1.4. Z5038 Fixing plate M10........... 5 d&b Z5356 E4/E5 Ball joint adapter , Mounting instructions (1.2 EN)
- Page 4 3 kg (6.6 lb) (according to BGV C1) which implies the weight of one E4 or E5 cabinet. 1.2. Intended use The d&b Z5356 E4/E5 Ball joint adapter must only be used in conjunction with the d&b E-Series loudspeakers E4 and E5 as described in these mounting instructions.
- Page 5 0° to –80° (horizontal setup). E5 loudspeaker For the E5 cabinet, angles can be set from 0° to –35° (vertical setup) or from 0° to –75° (horizontal setup). d&b Z5356 E4/E5 Ball joint adapter , Mounting instructions (1.2 EN)
- Page 6 3. Tighten the M10 socket using the spanner (size #17). 4. Set the desired angle of the cabinet and adjust the set screw [S]. 5. Finally tighten the fixing screw [F]. d&b Z5356 E4/E5 Ball joint adapter , Mounting instructions (1.2 EN)
- Page 7 www.dbaudio.com...
