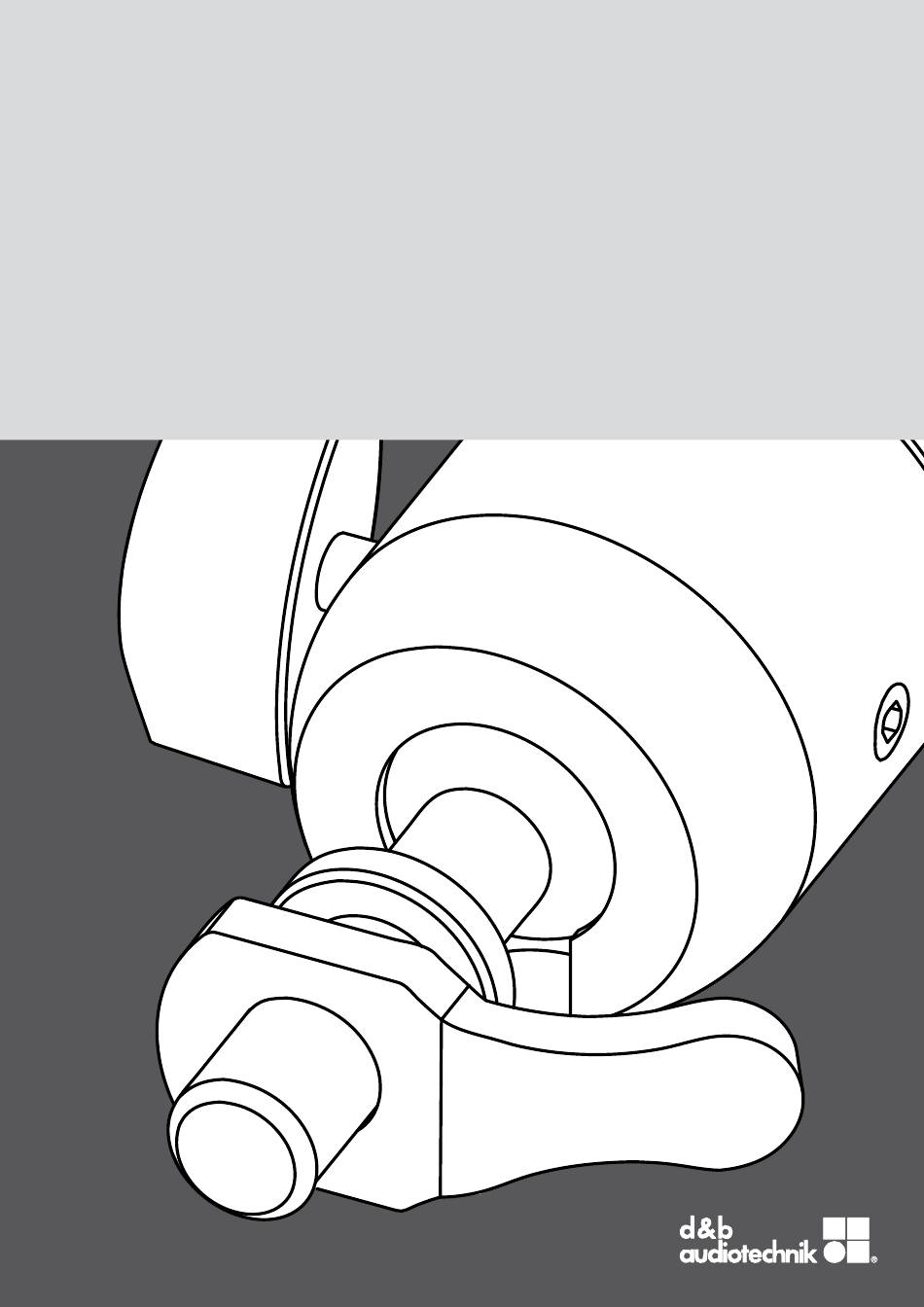

- Page 1 Z5357 Mounting instructions 1.1 en...
- Page 2 General information Z5357 Mounting instructions Version: 1.1 en, 04/2018, D2968.EN .01 Copyright © 2018 by d&b audiotechnik GmbH; all rights reserved. Keep these mountings instructions with the product or in a safe place so that they are available for future reference.
- Page 3 Z5357 Mounting instructions......... 4 1.1. Safety precautions..............4 1.2. Intended use................4 1.3. Scope of supply................. 4 1.4. Assembly..................5 1.5. Z5038 Fixing plate M10 option..........5 Manufacturer's declaration..........7 2.1. Conformity.................. 7 2.2. Disposal..................7 d&b Z5357 Mounting instructions 1.1 en...
- Page 4 3 kg (6.6 lb) which implies the weight of one E4 or E5 cabinet. 1.2. Intended use The d&b Z5357 E4/E5 Ball joint adapter must only be used in conjunction with the d&b E-Series loudspeakers E4 and E5 as described in these mounting instructions.
- Page 5 For the E4 cabinet, angles can be set from 0° to –50° (vertical setup) or from 0° to –80° (horizontal setup). E5 loudspeaker For the E5 cabinet, angles can be set from 0° to –35° (vertical setup) or from 0° to –75° (horizontal setup). d&b Z5357 Mounting instructions 1.1 en...
- Page 6 2. Attach the assembly and bolt down the threaded insert to the mounting plate. 3. Tighten the M10 socket using the spanner (#17). 4. Set the desired angle of the cabinet and tighten the set screw [2] and fixing screw [3]. d&b Z5357 Mounting instructions 1.1 en...
- Page 7 2. Manufacturer's declaration 2.1. Conformity This declaration covers: ▪ d&b Z5357 E4/E5 Ball joint adapter. National standards and technical specifications applied: DIN 18 800, DIN 1055, DGUV Vorschrift 17, BGI 810-3. Backnang, 2018-04-27 Frank Bothe, Head of R&D d&b audiotechnik GmbH 2.2.
- Page 8 www.dbaudio.com...
