1 P O
RODUCT VERVIEW
Thank you for choosing the miniDSP Harmony DSP 8x12 advanced in-car audio processor and power amplifier.
The Harmony DSP 8x12 features stereo optical and 6-channel USB digital inputs, 12 speaker- or line-level analog
outputs, a full eight channels of Dirac Live room correction and miniDSP's powerful audio processing on each
output channel.
By use of the onboard matrix mixers, the Harmony DSP 8x12 is adaptable to many configurations, ranging from a
simple stereo correction and EQ system, through to integration of one or more subwoofers, through to a
complete active multichannel surround system. Low-noise digital-input line/power drivers ensure pristine audio
quality in any vehicle environment.
Four complete processing configurations are stored on-board and can be selected from the OLED wired remote
or by infrared remote control.
1.1 T
YPICAL USAGE
Figure 1 illustrates a straightforward installation, with two or four channels supplied by the source device and
four speakers being driven by a power amplifier. The included miniDSP UMIK-1 is used to perform Dirac Live
calibration.
miniDSP Ltd, Hong Kong / www.minidsp.com

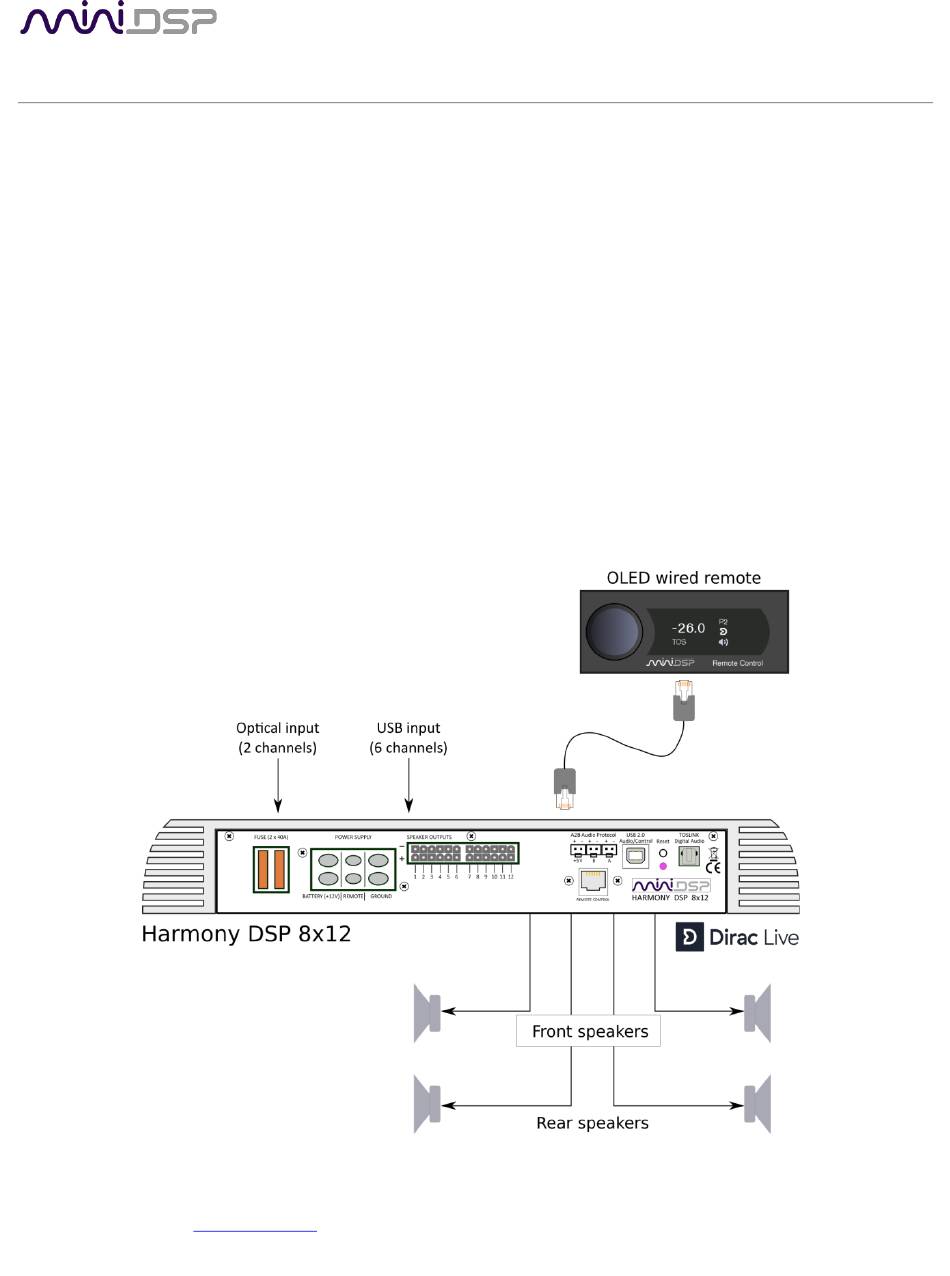

Figure 1. Basic system setup with four-channel acoustic correction
