4.9 O
UTPUT TABS

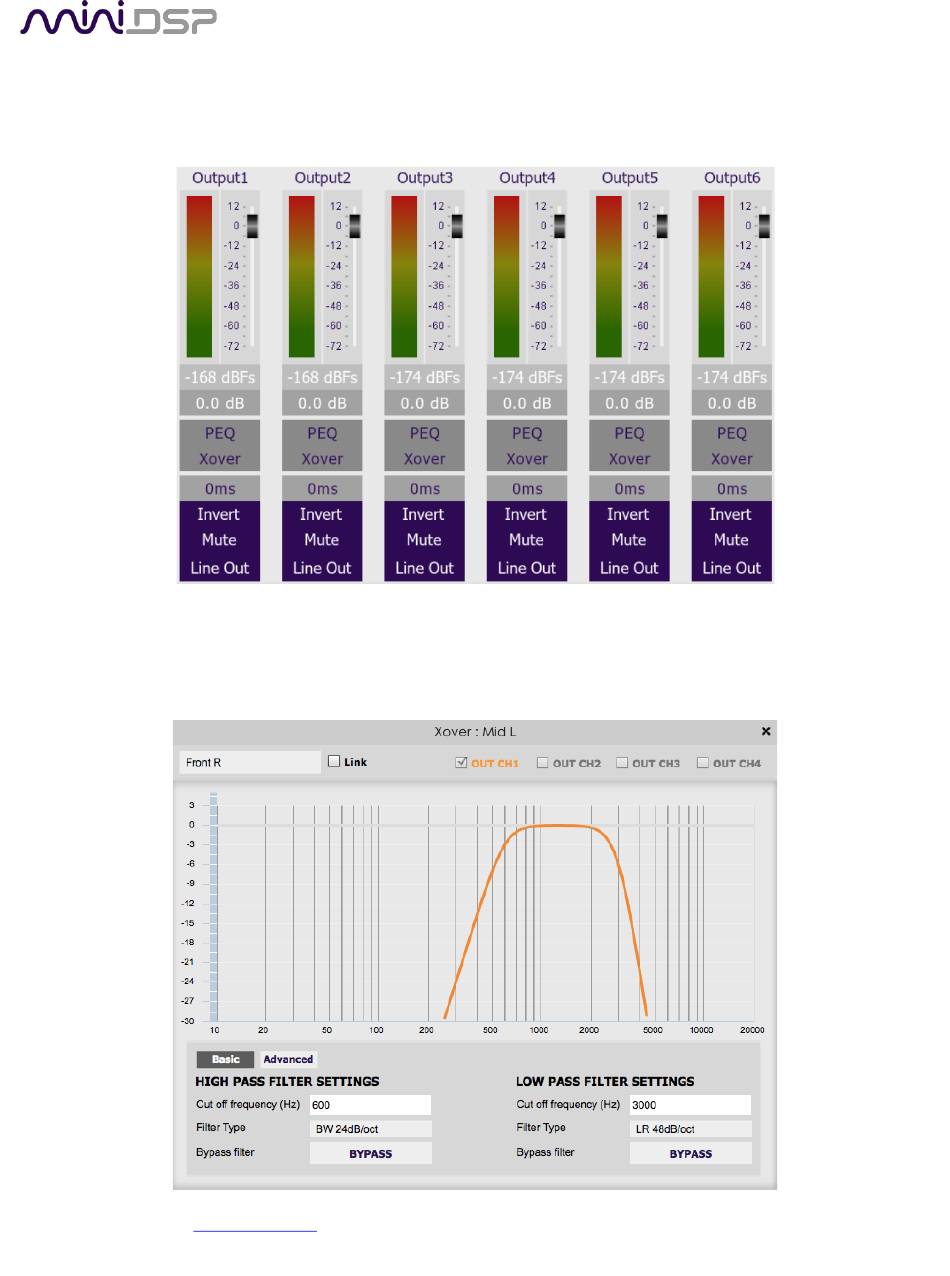

There are two output tabs: one for channels 1 to 6 and one for channels 7 to 12. Each displays a row of six
output channel control strips. All output channels are identical. This screenshot shows channels 1 to 6:
Each output channel has a complete "strip" of controls with customizable label, level meter, gain adjustment,
signal processing (see the Plugin Reference starting on page 32 for full details), and output mode (Line, BTL,
PBTL) selection. Signal processing functions are accessed by clicking on the relevant button – for example, the
crossover settings screen is opened by clicking on the Xover button:
25
