PULSAR
55se

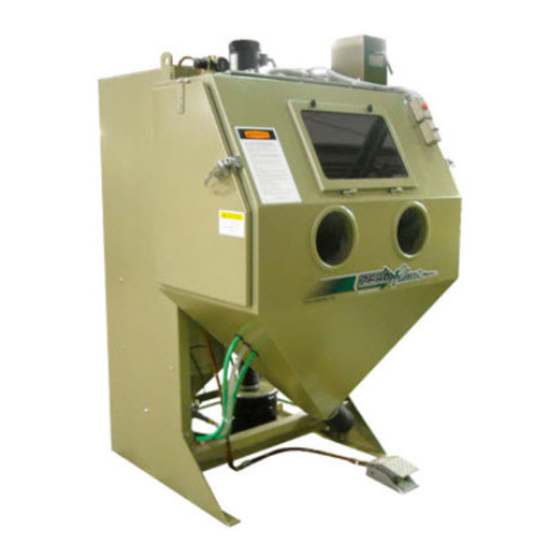

Ergonomic Suction Cabinet
O. M. 25727
DATE OF ISSUE: 03/93
REVISION:
D, 02/19
NOTICE TO PURCHASERS AND USERS OF OUR
PRODUCTS AND THIS INFORMATIONAL MATERIAL
Clemco proudly provides products for the abrasive blast industry
and is confident that industry professionals will use their knowledge
and expertise for the safe and efficient use of these products.
The products described in this material and the information relating
to these products are intended for knowledgeable, experienced
users. It is the responsibility of the employer to ensure that proper
training of operators has been performed and a safe work
environment is provided.
No representation is intended or made as to the suitability of the
products described here for any purpose or application, or to the
efficiency, production rate, or useful life of these products. All
estimates
regarding
production
rates
or
finishes
are
the
responsibility of the user and must be derived solely from the user's
experience and expertise, not from information contained in this
material.
It is possible that the products described in this material may be
combined with other products by the user for purposes determined
solely by the user. No representations are intended or made as to
the suitability of, engineering balance of, or compliance with
© 2019 CLEMCO INDUSTRIES CORP.
regulations or standard practice of any such combination of
One Cable Car Dr.
products or components the user may employ.
Washington, MO 63090
Phone (636) 239-4300
This equipment is only one component of a cabinet blasting
Fax (800) 726-7559
operation. Other products, such as air compressors, air filters and
Email: info@clemcoindustries.com
receivers, abrasives, equipment for ventilating or dehumidifying, or
www.clemcoindustries.com
other equipment, even if offered by Clemco, may have been
manufactured or supplied by others. The information Clemco
provides is intended to support the products Clemco manufactures.
Users must contact each manufacturer and supplier of products
used in the blast operation for warnings, information, training, and
instruction relating to the proper and safe use of their equipment.
