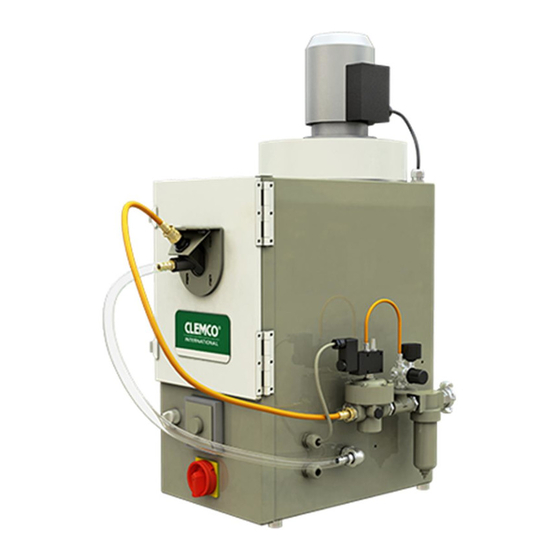

Mini tumble blast cabinet

Advertisement

Quick Links

DCM 161 MINI TUMBLE
BLAST CABINET
Clemco Industries Corp. • One Cable Car Drive • Washington, MO 63090
Phone: (636) 239-4300 • Fax: (636) 239-0788
Email: info@clemcoindustries.com
www.clemcoindustries.com
NOTICE TO PURCHASERS AND USERS OF OUR PRODUCTS
AND THIS INFORMATIONAL MATERIAL
The products described in this material, and the information relating to
those products, is intended for knowledgeable, experienced users of
abrasive blasting equipment.
No representation is intended or made as to the suitability of the products
described herein for any particular purpose of application. No represen-
tations are intended or made as to the efficiency, production rate, or the
useful life of the products described herein. Any estimate regarding
production rates or production finishes are the responsibility of the user
and must be derived solely from the user's experience and expertise, and
must not be based on information in this material.
The products described in this material may be combined by the user in a
variety of ways for purposes determined solely by the user. No
representations are intended or made as to the suitability or engineering
balance of the combination of products determined by the user in his
selection, nor as to the compliance with regulations or standard practice
of such combinations of components or products.
It is the responsibility of the knowledgeable, experienced users of the
products mentioned in this material to familiarize themselves with the
appropriate laws, regulations and safe practices that apply to these
products, equipment that is connected to these products, and materials
that may be used with these products.
It is the responsibility of the user to insure that proper training of
operators has been performed and a safe work environment is provided.
Our company is proud to provide a variety of products to the abrasive
blasting industry, and we have confidence that the professionals in our
industry will utilize their knowledge and expertise in the safe efficient use
of these products.
OWNER'S MANUAL
© CLEMCO INDUSTRIES CORP. 2002 • Stock No.: 14408 • Manual No.: 883-0489 • Date of Issue: , Rev. C, 07/02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZERO DCM-161 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Clemco ZERO DCM-161

  • Page 1 OWNER’S MANUAL © CLEMCO INDUSTRIES CORP. 2002 • Stock No.: 14408 • Manual No.: 883-0489 • Date of Issue: , Rev. C, 07/02...
  • Page 2 The cabinet requires approximately 17 cfm of Safety Alerts compressed air at a maximum of 60 psi. 1.2.1 Clemco uses safety alert signal words, based on Theory of Operation ANSI Z535.4-1998, to alert the user of a potentially hazardous situation that may be encountered while 1.4.1...
  • Page 3 DCM-161 MINI TUMBLE BLAST CABINET Page 2 Tumble Barrel Door Interlock Switch Blast Nozzle Filter Bag Air inlet port. Must be kept open Exhauster Media Drain Plug Blast Gun Air Hose Door Interlock Bracket Air Filter/Regulator Compressed air inlet Timer Control Media Hose Figure 1 Nozzle Options...
  • Page 4: Installation

    DCM-161 MINI TUMBLE BLAST CABINET Page 3 1.8.6 Fine-mesh Media: In most cases media finer than 180 will carryover to the dust bag. WARNING 1.8.7 Lightweight Media: In most cases plastic If twist-on type air hose couplings are used, media most agricultural media...
  • Page 5 DCM-161 MINI TUMBLE BLAST CABINET Page 4 Loading and Unloading Parts 3.4.5 Start the blast cycle by setting the timer for the blast duration. Blasting begins as soon as the timer is 3.3.1 Parts must be free of oil, water, grease, or other set.
  • Page 6 DCM-161 MINI TUMBLE BLAST CABINET Page 5 Timer Door Interlock, Figure 4 4.2.1 Set the timer for the duration of the blast cycle. Blasting automatically stops when the timer times out. WARNING Trial and error will determine the timer setting for the Never attempt to override the interlock system.
  • Page 7: Maintenance

    DCM-161 MINI TUMBLE BLAST CABINET Page 6 MAINTENANCE 5.3.2 From inside the cabinet door, unscrew the holding nut from the gun end, and pull the nozzle from the gun. Inspect the nozzle O-ring and replace if worn or WARNING damaged. Insert a new nozzle, placing the tapered end This machine is not to be used for applications toward the jet.
  • Page 8 DCM-161 MINI TUMBLE BLAST CABINET Page 7 Reduction In Blast Cleaning Rate 6.5.4 Absorption. Some media tends to absorb moisture from the air, especially fine-mesh media in high 6.3.1 Low media level reducing media flow. Check humidity areas. Empty the media and store it in an and fill if low.
  • Page 9: Accessories And Replacement Parts

    DCM-161 MINI TUMBLE BLAST CABINET Page 8 ACCESSORIES AND REPLACEMENT PARTS Barrel assembly Standard, with 3/16" diameter holes..12230 Optional Accessories Optional, with 1/16" diameter holes... 18254 Motor, 1/2-HP 115-VAC ....... 12308 Tumble barrel w/ 1/16" holes ......... 18254 Paddle wheel, 100 cfm ........ 12339 Lock pins (pkg.
  • Page 10 DCM-161 MINI TUMBLE BLAST CABINET Page 9 Gun feed and Plumbing Assembly, Figure 6 Adapter, 3/8 male NPT x 1/2" male flare ..11726 Fitting, hose, 1/2" barb x 1/2" fem. swivel ..15002 Item Description Stock No. Hose, 1/2" clear media, 3 ft. required ..12476 Bracket, gun mount ........
