Toa MB-WT3 Instruction Manual

RACK MOUNT BRACKET KIT
Please follow the instructions in this manual to obtain the optimum results from this unit.
We also recommend that you keep this manual handy for future reference.
1. GENERAL DESCRIPTION
The MB-WT3 and MB-WT4 are dedicated Rack
Mount Bracket Kits for mounting equipment with
panel width of 210 mm into an EIA standard 19"
equipment rack.
The MB-WT3 is for single unit mounting and the MB-
WT4 for dual unit mounting.

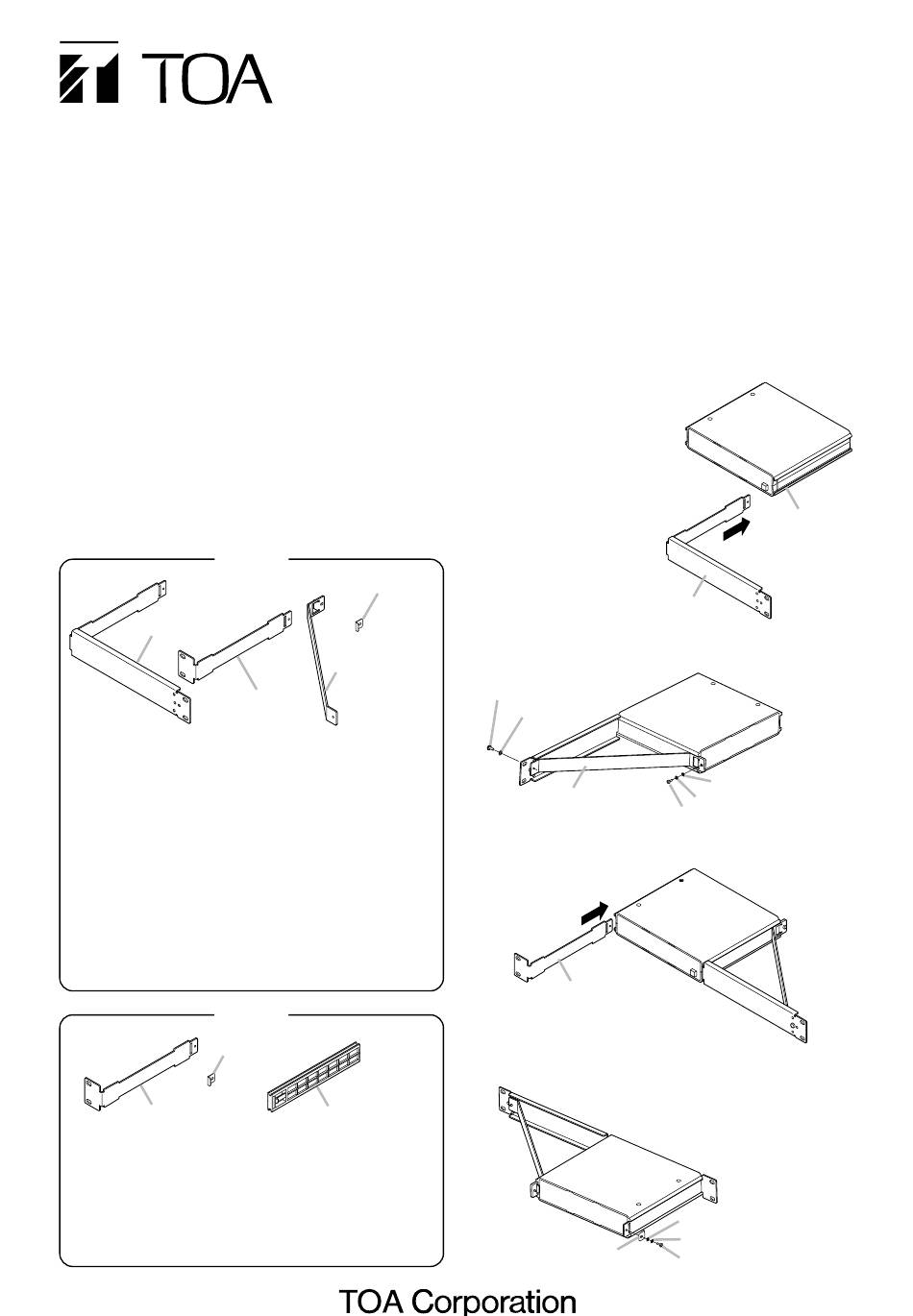

2. COMPONENT PARTS
MB-WT3
Bracket A ...1
Bracket B ... 1
Stay Mounting Hardware
Machine screw M4 x 8 .............................. 1
Flat washer (for M4) .................................. 1
Machine screw M3 x 6 .............................. 1
Spring washer (for M3) .............................. 1
Flat washer (for M3) .................................. 1
Bracket Stopper Mounting Hardware
Machine screw M3 x 6 .............................. 1
Spring washer (for M3) .............................. 1
Flat washer (for M3) .................................. 1
Rack Mounting Hardware
Rack mounting screw 5 x 12 ..................... 4
Fiber washer (for M5) ................................ 4
MB-WT4
Bracket Stopper ... 2
Bracket ... 2
Bracket Stopper Mounting Hardware
Machine screw M3 x 6 .............................. 2
Spring washer (for M3) .............................. 2
Flat washer (for M3) .................................. 2
Rack Mounting Hardware
Rack mounting screw 5 x 12 ..................... 4
Fiber washer (for M5) ................................ 4
3. MB-WT3 INSTALLATION
Step 1. Slide the Bracket A into the unit's guide rail
Note
Though this figure shows the
way to place the unit on the
left in a rack, the MB-WT3
permits the way to position
the unit on either side.
Bracket Stopper ... 1
Step 2. Mount the Stay to the Bracket A.
Stay ... 1
Step 3. Slide the Bracket B into the unit's guide rail
Step 4. Secure the Bracket Stopper to the Bracket B.
Connector ... 1
INSTRUCTION MANUAL
until it stops.
Bracket A
Machine screw M4 x 8
Flat washer
(for M4)
Stay
until it stops.
Bracket B
Bracket Stopper
MB-WT3
MB-WT4
Guide rail
Flat washer (for M3)
Spring washer (for M3)
Machine screw M3 x 6
Flat washer (for M3)
Spring washer (for M3)
Machine screw M3 x 6
