DIGITAL SMART SENSOR MODULES
NXSMP Digital Smart Sensors can be connected to both FX and SP ports. Utilizing the FX ports a maximum of 32 NXSMP Digital Sensors, NXRCFX
Room Controllers and/or NX enabled luminaires can be connected in a daisy chain fashion using the FX ports. NXSMP Digital Sensors can also be
placed on the SP ports but are limited up to 14 sensors per room controller.
LEGACY OCCUPANCY SENSORS
The NXRCFX Room Controller is compatible with any low voltage Hubbell Control Solutions vacancy/occupancy sensor that uses the red/black/blue
control wires. A low voltage wiring adaptor (RJ45ADAPTOR) is required to make the wiring transition from leads on the sensor to the RJ45 SmartPORT
on the room controller. Hubbell Control Solutions sensors ordered under the NXOS series model numbers are supplied with the RJ45 adaptor
included. Legacy Occupancy Sensors can be connected to either of the SP ports located on the room controller. (See Figure 3)
DIGITAL SWITCH STATIONS
The NX Digital Wall Stations (NXSW) can be connected to the SP ports located on the room controller. (See Figure 4) When connecting NX Wall
Stations do not exceed eight switches per SP port. Once connected, NX Wall Stations automatically configure to control all loads and provide basic
control. NX Wall Stations can be further configured or customized through the use of the controlHUBB mobile application or the NXAC Area Controller
user interface. For additional information on NX Wall Station functions please refer to the NX Wall Station Guide.
To additional NXRCFX Room Controllers, NX
enabled fixtures, or NXSMP Digital Sensors
LEGACY DAYLIGHT SENSOR
The NXDS open loop daylight sensor can be connected to either SP port using the supplied RJ45 adaptor. (See Figure 4) The model NXDS daylight
sensor will self-configure to control Load A (Red Switched Wire and Violet Dimming Wire) in Test Mode. The NXDS will become active 30 seconds
after the load has been turned on. While the unit is in Test Mode, the photocell operation can be verified by observing Load A while simultaneously
covering the NXDS or exposing the photocell to bright light. The above process will confirm that the NXDS a NXRCFX are functioning properly. The
NXDS must be calibrated in order to meet project specific requirements. Configuration of the NXDS can be performed utilizing the controlHUBB
mobile application or NXAC area controller interface.
RESETTING THE ROOM CONTROLLER TO FACTORY DEFAULT SETTINGS
Should you wish to erase all manual configuration and restore the room controller to its factory default settings, perform the following step:
Simultaneously press and hold buttons A and B on the room controller. After a few seconds, LED A and B will begin alternately blink. Continue to hold
buttons A and B until the blink pattern changes to a double blink pattern. Release buttons A and B. When the blinking stops, all loads will turn on
indicating the room controller has be reset to factory default settings. After a reset, the room wil auto configure based on the connected devices.
Tip: If the installation has more than one room controller connected together in the room, the reset process done on any one of the room controllers
will reset all of the room controllers.
Copyright © 2020 Hubbell Control Solutions, a division of Hubbell Lighting, Inc. All rights reserved. All product and company names, logos and product
identifiers are trademarks ™ or registered trademarks ® of Hubbell Lighting, Inc. or their respective owners. Use of them does not necessarily imply any
4
™

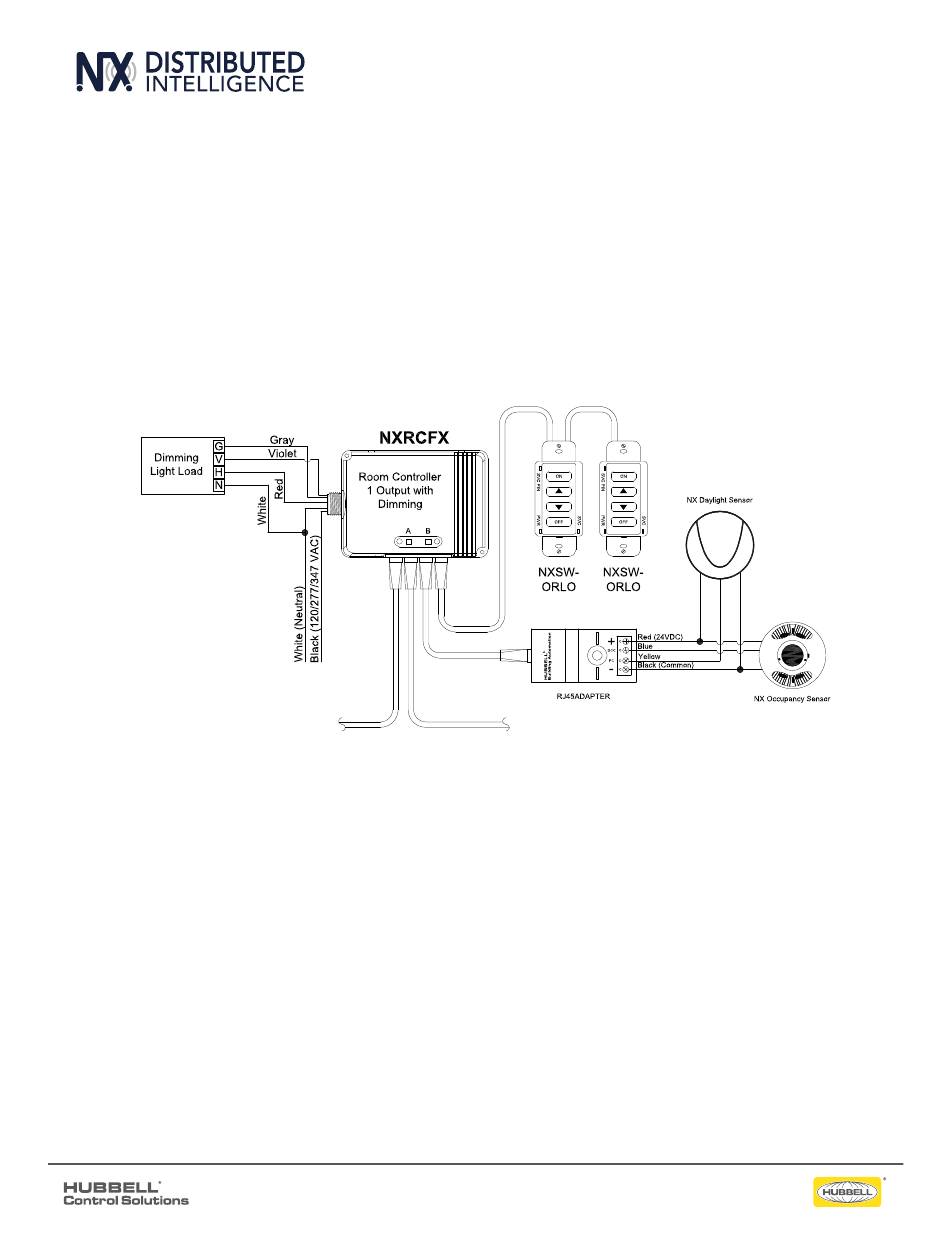

FIGURE 4: CONNECTING NX DEVICES TO THE NXRCFX ROOM CONTROLLER
