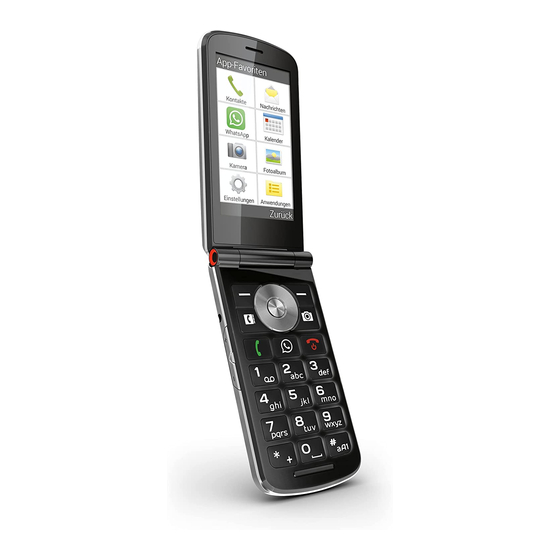

EMPORIA TOUCH smart User Manual

Hide thumbs Also See for TOUCH smart:
Table of Contents

Advertisement

Quick Links

Download this manual
Wi-Fi
connection or
mobile data tariff
required

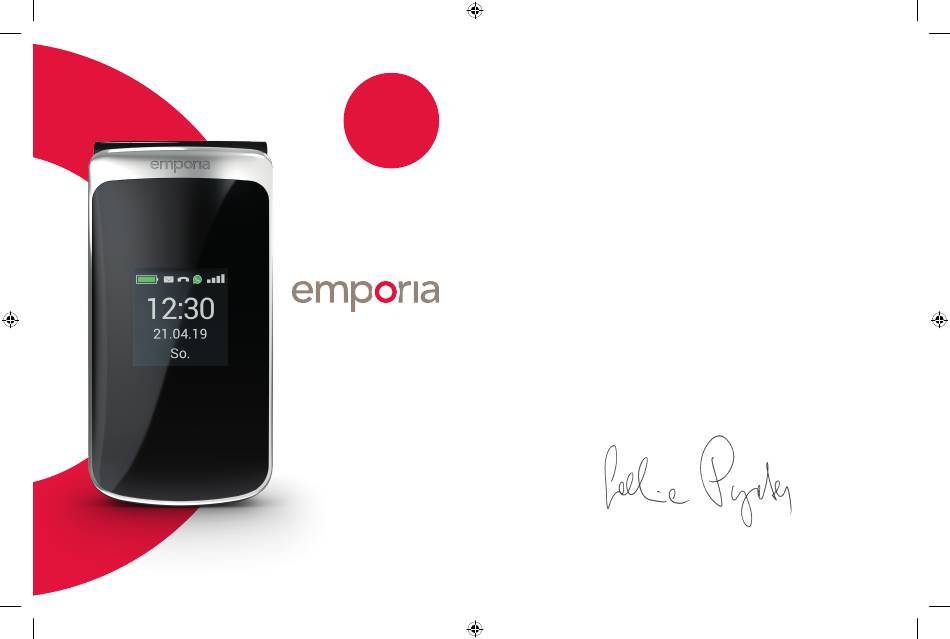

Thank you for purchasing an emporia product!
Please read this user guide before attempting to use your phone.
TOUCH
smart
Eveline Pupeter, emporia Telecom
www.emporiatelecom.co.uk / www.emporiatelecom.ie
English
V188i_GuideBook_V5_55710-ENG.indd 1
05.12.19 13:03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TOUCH smart and is the answer not in the manual?

Questions and answers

Related Manuals for EMPORIA TOUCH smart

Summary of Contents for EMPORIA TOUCH smart

  • Page 1 Wi-Fi connection or mobile data tariff required Thank you for purchasing an emporia product! Please read this user guide before attempting to use your phone. TOUCH smart Eveline Pupeter, emporia Telecom www.emporiatelecom.co.uk / www.emporiatelecom.ie English V188i_GuideBook_V5_55710-ENG.indd 1 05.12.19 13:03...
  • Page 2 › › YOUR MOBILE PHONE AT A GLANCE Loudspeaker SYMBOLS ON THE › Screen (in picture showing EXTERNAL DISPLAY standby mode) Reception indicator Navigation ring Battery Left function key 12:30 Time Selection key 21.08 Date Right-hand function key Phone book key Missed call Camera key Symbols in standby mode...
  • Page 3 › › SYMBOLS AND OPERATING THE PHONE How can I return a missed call? › 1. Tap on the word See on the screen below the notification Missed call. 2. The call function will open and the number or name of the caller highlighted by a red bar. How do I access a new message? ›...

  • Page 4: Getting Started

    1. GETTING STARTED Inserting a SIM card › • Remove the battery cover (opening in the bottom left-hand corner). • Slide the SIM card into the SIM card holder with the gold contacts facing down. • To add more storage, insert an SD card into the card holder with the gold contacts facing down.

  • Page 5: Saving Energy

    › • Press and hold the key for at least 2 seconds until the emporia logo appears. It will take a few seconds for the standby mode to be displayed. • To turn the phone off, press the for two seconds again.

  • Page 6: Setting Up Your Phone

    2. SETTING UP YOUR PHONE When you use a new SIM card for the first time, you need to select a number of settings. You will need to set the language, date, time and any necessary data connections. You can also configure these later in Menu and Settings if you wish.

  • Page 7: Menu Screen

    2.4 WhatsApp 1. When the phone is on standby, press the WhatsApp key 2. Tap on AGREE AND CONTINUE to accept the WhatsApp privacy policy and terms of service. 3. Enter your phone number and then confirm it by tapping on NEXT. 4.
  • Page 8 If you would like to set up the device for a relative or friend, it is best if you familiarise them with the functions and adjust the necessary settings. For example, in the Weather app, a location has to be specified. 2.6 Memory usage: recommendations to help your phone run smoothly This device is a feature phone that has been enhanced by...

  • Page 9: Using The Phone

    3. USING THE PHONE This phone can be controlled both via its touchscreen and via its numeric keypad and navigation ring. In the following, operating the phone using the keys has been prioritised. After starting, the phone is in standby mode. In standby mode the phone is on, but is not running any applications (calls, SMS messages, etc.).

  • Page 10: Using The Menu

    3.2 Using the menu Menu items: Contacts, Messages, WhatsApp, Calendar, › Camera, Photo album, Settings and Applications • Navigate through the menu items with the navigation ring. Your current selection will be highlighted by a blue border. • Press the selection key  to open the selected menu item.
  • Page 11 4. CALLS Incoming calls › • To answer: Open the phone and press Accept. • To reject: Press or close the phone. • To mute the ringtone temporarily: Press the button (on the side of the phone). The phone has been preset not to automatically answer incoming calls when it is opened.
  • Page 12 5. CONTACTS Searching for contacts: › In the main menu, open Contacts. _ Use the navigation ring to scroll through the entries (up/down) or sort them according to the letters they start with (left/right). _ The selected contact will be highlighted. _ Press the key to start the call _ Press the  selection key to open the contact...
  • Page 13 Transferring contacts from your old phone to this device › There are several ways to transfer the contacts from your old phone to this device: • Importing contacts from your SIM card The easiest thing to do is add the contacts from your old phone by transferring them with your SIM card.
  • Page 14 • Importing contacts in a VCF file You can also export the contacts on your old phone in a VCF file. This is a special format that enables you to open contacts on different devices. Transfer the VCF file to your smartphone using an external memory card or establish a Bluetooth connection from your old phone to the new device.
  • Page 15 Opening and editing contact records › If you want to open a contact record, select the contact using the navigation ring and then tap on Options _ Contact details. The contact record containing the contact's photo, mobile number, landline number, email address and birthday will then be displayed.
  • Page 16 6. MESSAGES Writing a message › Select Write message. Enter the text using the keypad. Sending a message › Enter a recipient that you want to send the message to. Open Options and select Send. You can now search for the recipient in your contacts, type in a phone number using the keypad or select a number from your recent calls list.
  • Page 17 Please pay attention to the following too: • The emporia TouchSMART doesn't have all the functions of a smartphone. With regard to WhatsApp, the device has been designed in a way that enables messages in chats including photos, short videos and audio files to be received and replied to.
  • Page 18 8. CALENDAR Open Calendar on the menu screen. • The current month will be shown in the overview. The overview cannot be changed to display the current week instead of the current month. • Today's date will be in blue. •...
  • Page 19 Opening an event entry in the calendar. › In the month calendar overview, the days you've entered events on will be highlighted. 1. If you tap on a day button, a list of all the hours of this day will be displayed.
  • Page 20 9. CAMERA Taking a photo or filming › When the phone is on standby, press the camera key or open Camera on the menu screen. Opening the camera can take a bit of time. The current camera mode (photo or video) will be shown in the centre.
  • Page 21 Taking a selfie › Options _ Choose between Back camera and Front-facing camera. For selfies, switch from the back camera to the front- facing camera. More options › Enable the flash or adjust the photo's picture size. After you've successfully taken a photo, it will automatically be saved in the photo album.

  • Page 22: Photo Album

    10. PHOTO ALBUM Viewing a photo or video › Open Calendar on the menu screen. All the photos and videos you take will be sorted chronologically according to the month in which they were taken. • Use the navigation ring to scroll through the images.
  • Page 23 Backing up photos on your PC › 1. Plug the USB connector end of the USB cable supplied with the phone into the PC and the other end into your phone. 2. When the phone is on standby, tap on Info or open the Info centre function in the list of all Applications on the menu screen.

  • Page 24: Automatic Switch-On/Switch-Off

    11. SETTINGS Menu items › Alarm, Automatic switch-on/switch-off, Silent mode, Wi-Fi, Bluetooth, Mobile data, Airplane mode, Location, Wi-Fi hotspot, Wallpaper and More settings Enabling a function › 1. If you tap on a grey Off button, it will change to a blue On button. 2.
  • Page 25 11.4 Wi-Fi • If you are already connected to a Wi-Fi network, the name of the network will be displayed when you tap on Wi-Fi. • To set up a Wi-Fi connection, you need the name of the Wi-Fi network and the matching password. If you have a Wi-Fi network at home, you can usually find this information on the underside of the Wi-Fi router.

  • Page 26: Airplane Mode

    11.6 Mobile data • Enabling your mobile data facility • The overview will show you how much data you have already used in the current billing period. If you use the phone's mobile data facility, your network tariff must include mobile data. 11.7 Airplane mode Airplane mode will disable the phone's cellular radio and other communication functions like Bluetooth and Wi-Fi, and...

  • Page 27: Alarm Clock

    12. ALARM CLOCK Turning on the alarm clock Enable the alarm on/off button in Quick settings or in the Alarm app itself, so that the indicator is blue and displays On. The alarm clock is now on. Setting the alarm clock ›...

  • Page 28: Info Centre

    13. INFO CENTRE This application provides you with an overview of all the notifications you have received regarding various apps. Put simply, all the new notices that your phone wants to share with you are collected here. This gives you a better overview of them all and ensures you don't miss any.

  • Page 29: System Update

    14. SYSTEM UPDATE You can download the latest software for the phone yourself and therefore update the system and improve applications yourself. Use a Wi-Fi network to transfer the data here. 1. Check that the battery is at least 30 % charged. If it isn't, the download cannot start.
  • Page 30 One of the most popular features of smartphones is their ability to provide information on the current weather and the weather forecast. The emporia Weather app is simple with a clear layout and also shows the current temperature on the home screen.
  • Page 31 5. Your desired place has now been set as a weather location. Select Back to view the weather forecast for the next few days for this location. The current temperature in this place will be shown above the date on the home screen. 6.
  • Page 32 16. EMPORIA EMERGENCY CALL FUNCTION If you use the battery cover with the integrated emergency button, you can enable the phone's emergency call function. Read the instructions carefully and set the emergency function according to your needs. You can save up to five emergency numbers (family members, friends and official institutions).
  • Page 33 • From the moment you make an emergency call, your emporia phone will automatically answer any incoming calls for one hour. To disable this function, press and hold the  button for approx. three seconds or turn your device off completely using the button and then turn it on again.

  • Page 34: Guarantee And Service

    • Operating temperature: -10 to 40° C Guarantee › • Hearing aid compatible M4/T4 • This guarantee is only valid if the original • Bluetooth batteries supplied by emporia have been used. • Mobile phone: 12 months • Battery: 6 months V188i_GuideBook_V5_55710-ENG.indd 34 05.12.19 13:03...

  • Page 35: Safety Information

    Frequencies Safety information › › • BT: 2402 MHz–2480 MHz • Turn off your phone in hospitals and whenever Transmitter power: < 0.003 W (EIRP) you are near medical equipment. There should • Wi-Fi: 2412 Mhz–2472 Mhz always be a distance of at least 20cm between Transmitter power: <...

  • Page 36: Intended Use

    Emporia is continuously adapting • This device has been tested for typical the phone's software to radio technology applications where the device is carried on the developments and makes these updates body.
  • Page 37 Disposal DECLARATION OF › › • Disposing of the CONFORMITY (DOC) packaging emporia telecom GmbH + CoKG The packaging and packaging aids (Industriezeile 36, 4020 Linz, Austria) are recyclable and should hereby declares that the be recycled. V188i / emporiaTOUCHsmart •...
  • Page 38 Druckfehler, Irrtümer und technische Änderungen vorbehalten. Subject to mistakes, printing errors and technical changes. Con riserva di errori di stampa, inesattezze e modifiche tecniche. Toutes erreurs d'impression, erreurs et modifications techniques réservées. Drukfouten, vergissingen en technische wijzigingen voorbehouden. Part no.: V188i_GuideBook_V5_55710-ENG | 201912 V188i_GuideBook_V5_55710-ENG.indd 38 05.12.19 13:03...
