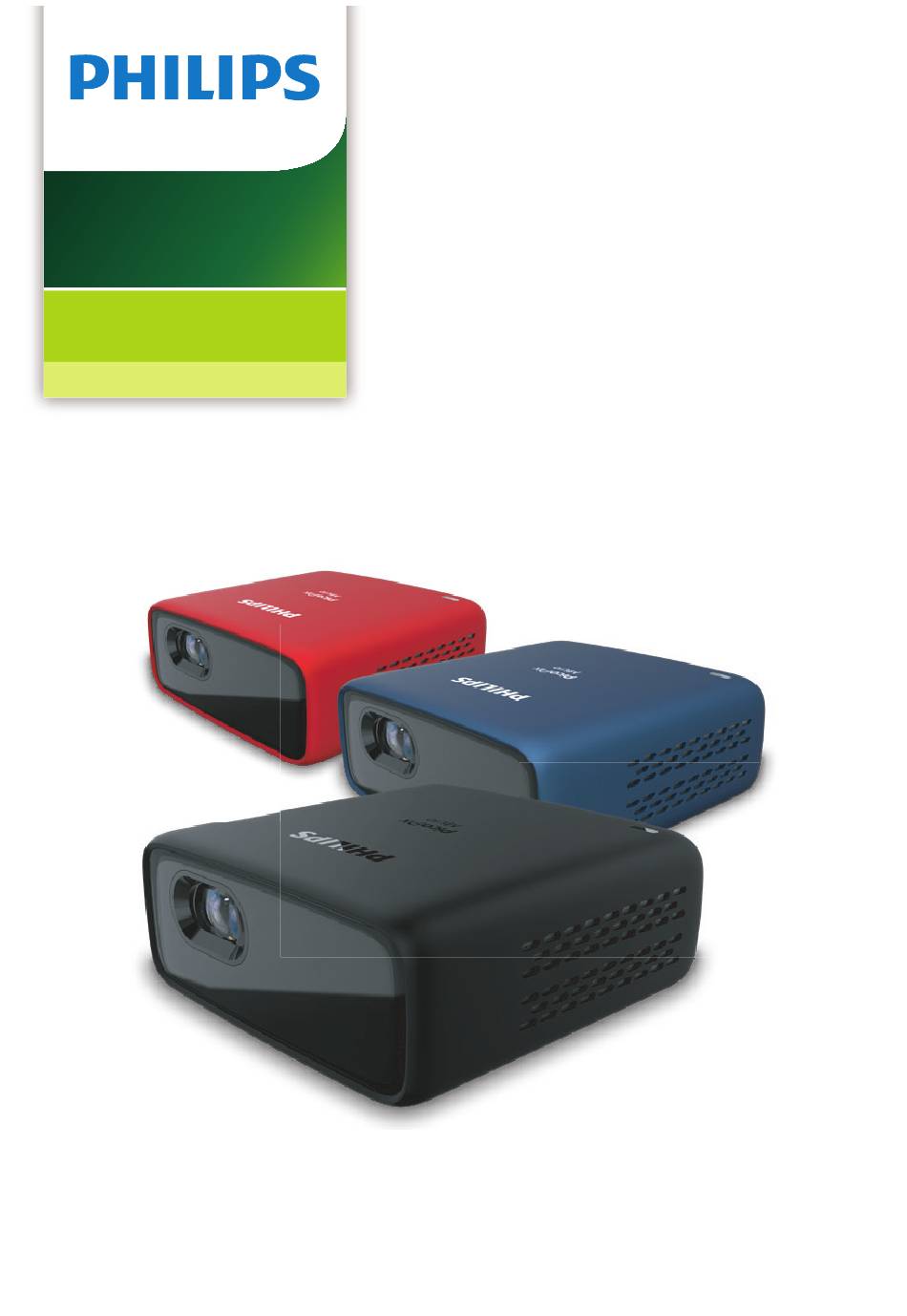

- Page 1 User Manual PicoPix Micro Portable projector PPX320/321/322 Register your product and get support at www.philips.com/support...
-
Page 2: Table Of Contents
Table of contents Introduction �������������������������������������������������3 7 Appendix ����������������������������������������������14 Dear customer ...............3 Technical data .............14 About this user manual ..........3 CE statement ...............15 What’s in the box ............3 FCC statement .............15 Customer service centre ..........3 Canada regulatory compliance ......15 General safety information ��������������� 4 Other notice ..............15 Setting up the product .......... -
Page 3: Introduction
Introduction What’s in the box PicoPix Micro projector (PPX320/321/322) USB cable Dear customer Quick Start Guide Thank you for purchasing this projector. We hope you enjoy this product and the many functions it offers! About this user manual The quick start guide supplied with this product allows you to start using this product quickly and easily. -
Page 4: General Safety Information
The built-in battery product. should be replaced by qualified service staff Do not remove the type label from this product, only. as this will void the warranty. Philips · PicoPix Micro... -
Page 5: Power Supply
2 Overview Power supply Use only a certified power adapter. Check Rear view whether the mains voltage of the power supply matches the mains voltage available at the setup location. This product complies with the voltage type specified on the product. The power outlet shall be installed near the product and shall be easily accessible. -
Page 6: Side View
• Using an HDMI cable, connect the HDMI connector (mini HDMI port) on the projector to the HDMI output on the playback device. Use an HDMI mini plug adapter for HDMI connection if necessary. HDMI Philips · PicoPix Micro... -
Page 7: Operation
4 Operation turns red. When fully charged, the red LED turns off. Notice Notice You need to connect the projector to The capacity of the built-in battery an HDMI device, so that the projection diminishes with time. If the projector screen can show images (see Connect, functions only with external power page 6). -
Page 8: Connecting To External Speakers Or Headphones
You can install the projector in the following speakers or headphones configurations. Follow the guidelines below for different projector placement. Connect external speakers or headphones to the projector. With this connection, audio from the projector is played through the external speakers or headphones. Philips · PicoPix Micro... - Page 9 Notice then navigate to select Proj. Direc. - Rev. front proj., then press OK. For overhead mounting on ceiling, purchase a projector mount Rear table recommended by an installation Place the projector on a table behind the professional and follow the instructions projection screen.
-
Page 10: Change Settings
• Display Duration: Select a timer to automatically turn the screen off when the • Picture Adj.: Adjust Brightness/Contrast/ projector is idle. Saturation/Toneburst/Sharpness with the values from 0 to 100. Philips · PicoPix Micro... -
Page 11: Restore Default Settings
6 Service Restore default settings If the projector does not function normally, reset the projector to the default settings. It will Built-in battery care delete all the current settings. The capacity of the built-in battery diminishes Navigate to Full Reset, and press OK, then •... -
Page 12: Update Software
Update software The latest software of the projector can be found on www.philips.com/support for you to get the best features and support from the projector. Before you update the software of the projector, check the current software version: •... -
Page 13: Troubleshooting
Troubleshooting Turn the projector off using Wait at least ten seconds. Power cycling Turn the projector on again using If the problem persists, please contact our If a problem occurs that cannot be corrected technical service centre or your dealer. with the instructions in this user manual, follow the steps given here. -
Page 14: Appendix
7 Appendix Package content PicoPix Micro projector, USB cable, Quick Start Guide Technical data Technology/optical Display technology ..........DLP Light source ...........OSRAM LED Resolution ........854 x 480 pixel Resolution supported ....1920 x 1080 pixel LED lifetime .......last over 20,000 hours Contrast ratio ............600:1... -
Page 15: Ce Statement
This device complies with Industry Canada CAN The Declaration of Compliance can be ICES-3 (B)/NMB-3(B) consulted on the site www.philips.com. RSS-Gen & RSS-247 statement: This device complies with Industry Canada RSS standard(s). FCC statement Operation is subject to the following two 15�19 Labeling requirements�... - Page 16 Screeneo Innovation SA shall not be liable for any damages or problems arising from the use of any options or any consumable materials other than those designated as original Screeneo Innovation SA/PHILIPS products or Screeneo Innovation SA/PHILIPS approved products. Screeneo Innovation SA shall not be held liable...
- Page 17 Screeneo Innovation SA Route de Lully 5c - 1131 Tolochenaz - Switzerland Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. used under license. Screeneo Innovation SA is the warrantor in relation to the product with which this booklet was packaged..
