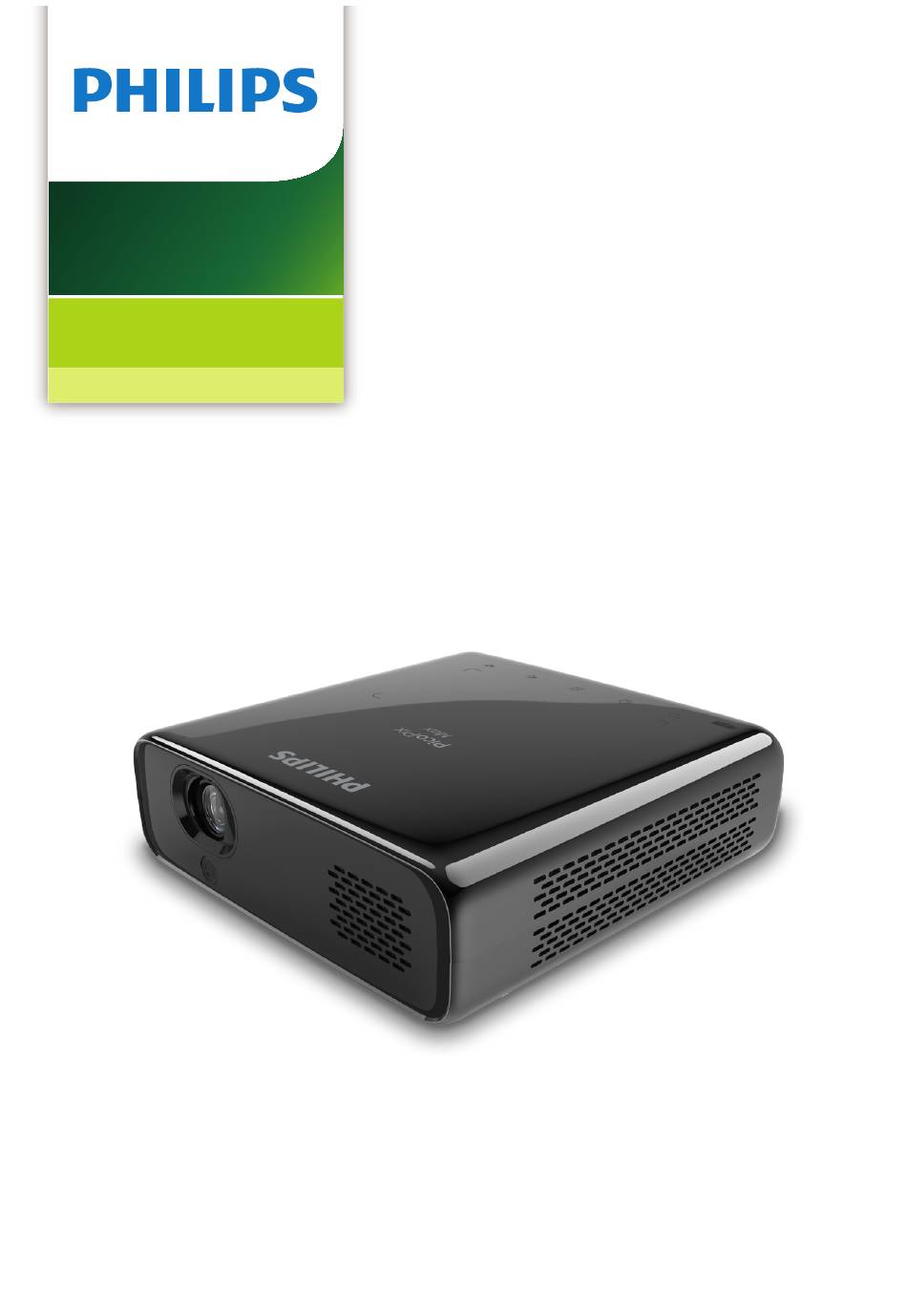

- Page 1 User Manual PicoPix Max Mobile Projector PPX620 Register your product and get support at www.philips.com/support...
-
Page 2: Table Of Contents
Table of contents Introduction �������������������������������������������������3 8 Wireless projection ��������������������������18 Dear customer ...............3 Screen mirroring for iOS devices and Mac ..18 About this user manual ..........3 Cast video for iOS devices........18 What’s in the box ............3 Screen mirroring for Android devices/Windows PC ..................19 Customer service centre ..........3 9 Change settings ���������������������������������20... -
Page 3: Introduction
Introduction What’s in the box Quick Start Guide PicoPix Max projector (PPX620) Dear customer Tripod + ball mount attachment Transport bag Thank you for purchasing this projector. 3x power plug adapter (EU, UK, US) and 1x We hope you enjoy this product and the many... -
Page 4: General Safety Information
The product has built-in battery. Do not product. dissemble and modify. The built-in battery Do not remove the type label from this product, should be replaced by qualified service staff as this will void the warranty. only. Philips · PicoPix Max... -
Page 5: Power Supply
2 Overview Power supply Use the supplied power adapter, or a compatible USB-C PD adapter of 60W or Top view higher. The adapter must support 15V at 3A or 4A. 20V is not supported. Check whether the mains voltage of the power supply matches the mains voltage available at the setup location. -
Page 6: Rear View
USB-C (POWER) Connect to the power supply. Return to a previous menu screen. Navigation buttons • Navigate menu options. • Hide on-screen pointer. Press and hold for one second to switch the projector on or off. Philips · PicoPix Max... -
Page 7: Initial Operation
3 Initial operation Front ceiling Mount the projector on the ceiling with upside up in front of the projection screen. A projector mount is required to mount the Placement projector on ceiling. You can install the projector in the following configurations. -
Page 8: Connect Power Supply
The capacity of the built-in battery diminishes with time. If the projector functions only with external power supply, the built-in battery is defective. Contact an authorised service centre to replace the built-in battery. Philips · PicoPix Max... -
Page 9: Prepare The Remote Control
Prepare the remote control Change screen size The projection screen size (or size of images) is CAUTION! determined by the distance between the lens of the projector and the projection surface. The improper use of batteries can lead to overheating, explosion, risk of fire and •... - Page 10 Digital zooming is not available when You can manually adjust the image shape by using HDMI or USB-C video input. re-positioning four corners of the projection image. This also lets you correct for left or right position of the projector. Philips · PicoPix Max...
-
Page 11: Basic Setup
Select Scan for devices in the Bluetooth settings interface to search for Bleutooth devices available. Select Philips AirMote from the Bluetooth device list, and press OK. Then the remote control is paired with the projector. Initial operation... -
Page 12: Use Home Screen
To browse, search and install applications, access Aptoide TV app store on the home screen. • To uninstall applications on the home screen, select an application, then press on the remote control to access the Uninstall option. Philips · PicoPix Max... -
Page 13: Customize Home Screen Wallpaper
Use the buttons on the mouse for or may not work correctly. Only the navigation and selection. preloaded apps have been tested by Philips. Use Bluetooth Keyboard/mouse Customize home screen Pair your Bluetooth keyboard or mouse with the projector as follows: wallpaper •... -
Page 14: Bluetooth Streaming
In the Bluetooth settings interface of the projector, select your Bluetooth speaker name from the Bluetooth device list. The projector is connected to your Bluetooth speaker. Audio from the projector streams to your Bluetooth speaker. Philips · PicoPix Max... -
Page 15: Connect To Playback Devices
6 Connect to Connect to devices through USB-C playback devices Connect a USB-C device (e.g. a mobile phone, tablet or laptop) to the projector through USB-C Notice connection. With this connection, images are Make sure all devices are disconnected shown on the projection screen, and audio is from the power outlet before establishing played on the projector. -
Page 16: Connect To External Wire Speakers Or Headphones
The file browser is displayed. Use the navigation buttons and OK on the remote control to select and open files. When connecting to the headphones, use the volume control on the remote control to adjust the volume to a comfortable level. Philips · PicoPix Max... -
Page 17: Copy Files To The Internal Storage
Copy files to the internal Play photo from storage storage devices The projector has 16GB of internal storage. You Select a photo file from the file browser, may copy files from an external storage to the and press OK. Then select a photo player internal storage. -
Page 18: Wireless Projection
Mac to the projector. After successful connection, the screen contents of your iPhone/Mac are casted to the projection surface. Philips · PicoPix Max... -
Page 19: Screen Mirroring For Android Devices/Windows
Screen mirroring for Trademark notice Apple, AirPlay and the AirPlay logo are Android devices/Windows trademarks or registered trademarks of Apple, Inc. in the US and other countries. You can share the screen contents of your Google, Android and the Android logo are Android device or Windows PC on the trademarks or registered trademarks of Google, projection screen. -
Page 20: Change Settings
Cleaner. square. • Auto Keystone Correction: Enable or disable auto correction of the image shape when tilting the projector upwards or downwards. • Calibration: Perform this function if Philips · PicoPix Max... -
Page 21: Service
The latest software of the projector can be • Charge the battery regularly. Don’t store found on www.philips.com/support for you the projector with a completely discharged to get the best features and support from the battery. -
Page 22: Troubleshooting
Bluetooth or video streaming does not run • Make sure that the wireless network is not smoothly. disturbed by microwave ovens, DECT phones, or other neighboring Wi-Fi devices. • For better Bluetooth or Wi-Fi performance, use a 5 GHz Wi-Fi network. Philips · PicoPix Max... - Page 23 Problems Solutions No image from the external HDMI device. • Disconnect the HDMI cable or switch off the HDMI device. • Wait three seconds. • Reconnect the HDMI cable or switch on the HDMI device again. No sound from the external connected •...
- Page 24 What to do if the projector does not work • Check that the HDMI cable is plugged in correctly. when connecting to a notebook PC? • Make sure that the notebook PC has been switched to projector display. Philips · PicoPix Max...
-
Page 25: Appendix
Display technology ..........DLP Light source ............LED Package content Resolution (with E-Shift technology) ....PicoPix Max projector, remote control with ............1920 x 1080 pixel 2 AAA batteries, USB-C cable, AC adapter, Resolution supported .........4K pixel power plugs (EU, UK, US), tripod + ball mount LED lifetime ...... -
Page 26: Ce Statement
Connect the equipment into an outlet on a circuit different from that to which the The Declaration of Compliance can be receiver is connected. consulted on the site www.philips.com. • Consult the dealer or an experienced radio/ Frequency bands Maximum output TV technician for help. -
Page 27: Other Notice
Packaging: The presence of the logo (green other than those designated as original dot) means that a contribution is paid to an Screeneo Innovation SA/PHILIPS products or approved national organisation to improve Screeneo Innovation SA/PHILIPS approved package recovery and recycling infrastructures. - Page 28 PHILIPS and the PHILIPS’ Shield Emblem are registered trademarks of Koninklijke Philips N.V. used under license. This product was brought to the market by Screeneo Innovation SA., further referred to in this document as Screeneo Innovation SA., and is the manufacturer of the product.
