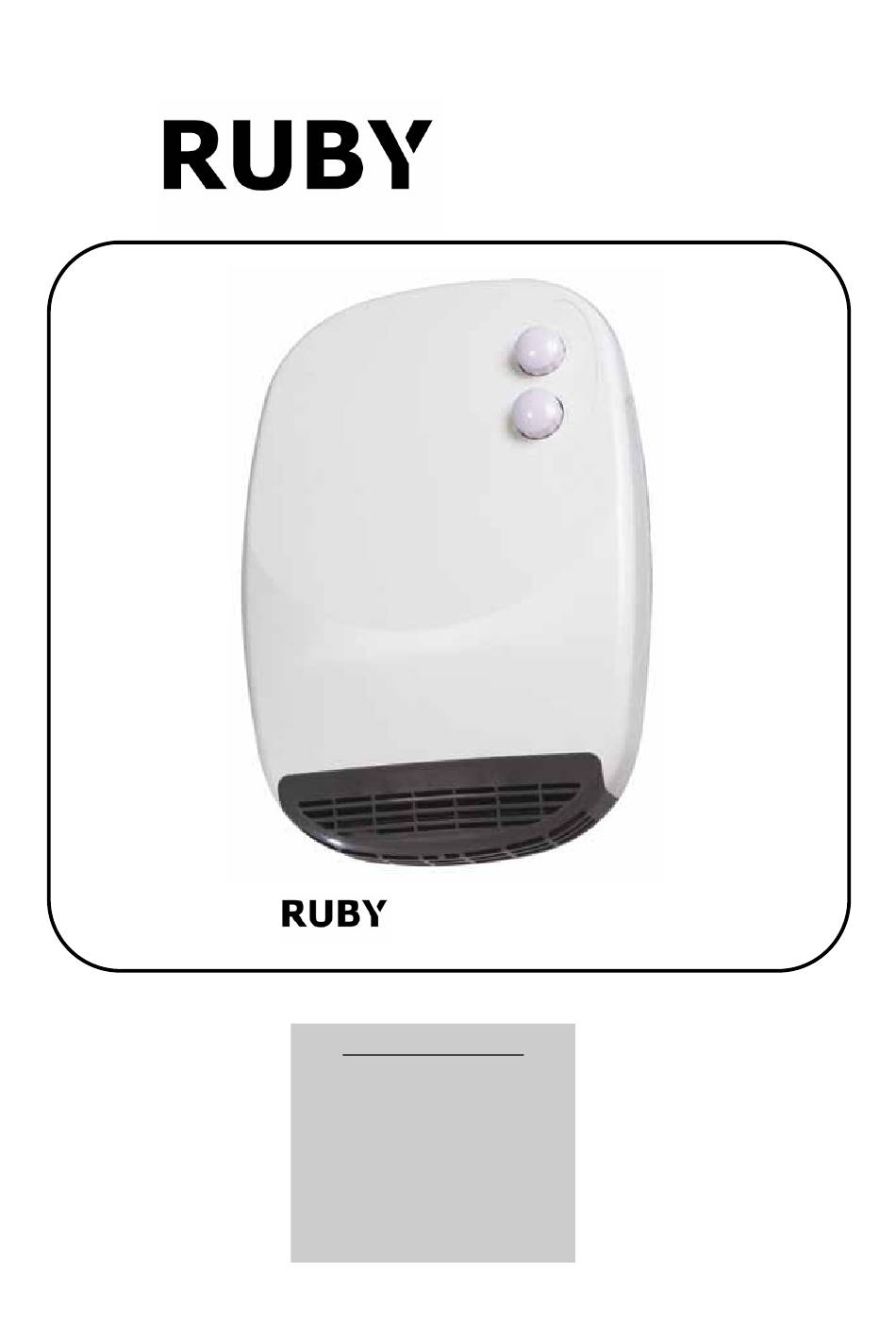

- Page 1 HEAT SDB-SS 2010 HEAT SDB 2000 INSTRUCTIONS Français : English : Nederlands Italian Spanish...
- Page 2 Thank you for choosing and for your trust in our brand name. Plaese read this manual carefully before using the apparatus. It is important thar you handle and use the apparatus according to the instructions, to prolong its life, and to avoid problems and accidents.
-
Page 3: Specifications
2000 Watts. SDB-SS 2010 SDB 2000 Output Power (W) 1000W/2000W 1000W/2000W Power supply (V) 230v/50Hz 230/50Hz Weight (kg) Protection class II, IP24 II, IP24 2. Description Timer Power switch & Thermostat Hot air outlet Towel rack for model SDB-SS 2010... - Page 4 (dust deposited on the appliance).In order to avoid overheating, do not cover the heater. Do not swing on the towel rack.(model SDB-SS 2010) This appliance is designed for wall-mounted installation. The heater must be installed so that the switch & control can not be touched by persons in the a bath or shower.
- Page 5 Installation To placed correctly the apparat, 1. For the model SDB-SS 2010, assemble the dry-towels on the support fixed at the wall (fig1) without you support on the bottom of the heating 2. Hang the apparatus on its support (fig2). There are 3 points of fixing to the back of the apparatus.
-
Page 6: Electric Connection
3. For the model SDB-SS 2010, assemble the heater on the towel rack by fitting the slots of the heater to the pins of the towel rack. Then screw the upper screw as mentioned in point 3 to assemble the heater and the towel rack together. (see fig 3) 5. -
Page 7: Turning On The Appliance
6. Turning on the appliance Turn the switch knob to select: Cool Drying Warm Drying Hot Drying There are two controls device. They are timer and thermostat. 1/ Timer It works during the mode of cool drying and the mode of warm drying. Thermostat During the mode of hot drying, turn the thermostat knob to the max position. - Page 8 8. Garantee Condition general of guarantee The heating system must be installed according to the instructions indicated in the intructions, according to the norm in force. The apparatus must be used under normal conditions and regularly maintained. Under these condition, it is guaranteed within the framework of the legislation in force.
-
Page 9: After Service
The guarantee applies only to the heating and its components other than whole or part of the electric installation of the apparatus. E) Litigations This guarantee at all does not limit the statutory rights of the customer under the national laws into force, nor the rights of the customer opposite to the retailer, fixed in their contract of sale/purchase.
