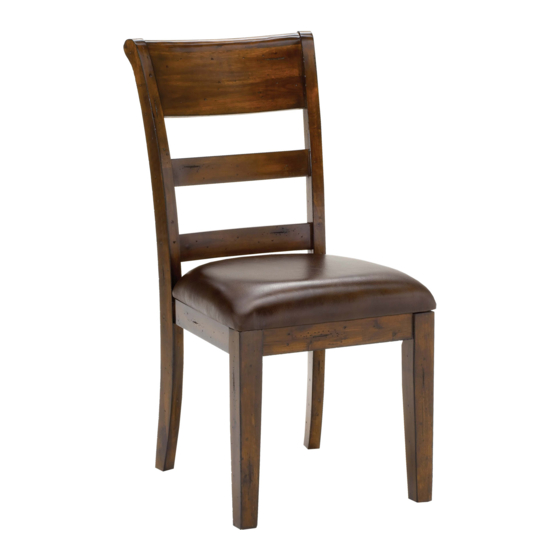

Hillsdale Furniture PARK AVENUE NON-SWIVEL DINING CHAIR Assembly Instructions

HILLSDALE
FURNITURE, LLC.
Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure that all
components are in proper position, tight and free from damage. Keep this assembly instruction for future reference. Adult assembly is required.
The product of Hillsdale Furniture, LLC is designed for residential use only. Customer Service Phone Number: 502-562-0000
HARDWARE LIST
A (9) 5/16" Spring Washers
B (9) 5/16" Flat Washers
C (4) 5/16" x 3" Bolts
D (4) 5/16" x 2" Bolts
E (1) 5/16" x 1-1/2" Bolt
F (1) 4mm Allen Wrench
PARTS LIST
G (1) Seat Back
H (1) Seat Frame
I (2) Front Legs
STEP 1
Begin assembly by
attaching the Seat
Frame (H) to the
Seat Back (G) with
2 Allen Bolts (C), 2
Spring Washers (A) and 2 Flat
Washers (B) from each side and 1 Allen Bolt (E), 1
Spring Washer (A) and 1 Flat Washer (B) from the
center. See Figures 1 and 2.
G
CARE & MAINTENANCE: The touch of a soft cloth is all the maintenance the finish will ever need. Please do not use harsh or abrasive cleaners for polishing,
as they may cause damage to the finish. Periodic checks are recommended to make sure that all bolts, screws and nuts are securely tightened.
PARK AVENUE NON-SWIVEL DINING CHAIR
PART QTY
A 9
C 4
E 1
E
A
B
FIGURE 1
G
H
Model #4692-802
HARDWARE
H
I
H
B
A
D
FIGURE 3
I
Date: 06-20-2012
PART QTY HARDWARE
B 9
D 4
F 1
C
A
B
FIGURE 2
STEP 2
Next attach the Front Legs (I) to
the Seat Frame (H) with 2 Allen
Bolts (D), 2 Spring Washers (A)
and 2 Flat Washers (B) per leg.
See Figure 3. The assembly
is now complete.
I
Page 1 of 1
H
G
