Murr Elektronik Emparro67 Series Installation Instructions

Murrelektronik GmbH
Falkenstraße 3
D-71570 Oppenweiler

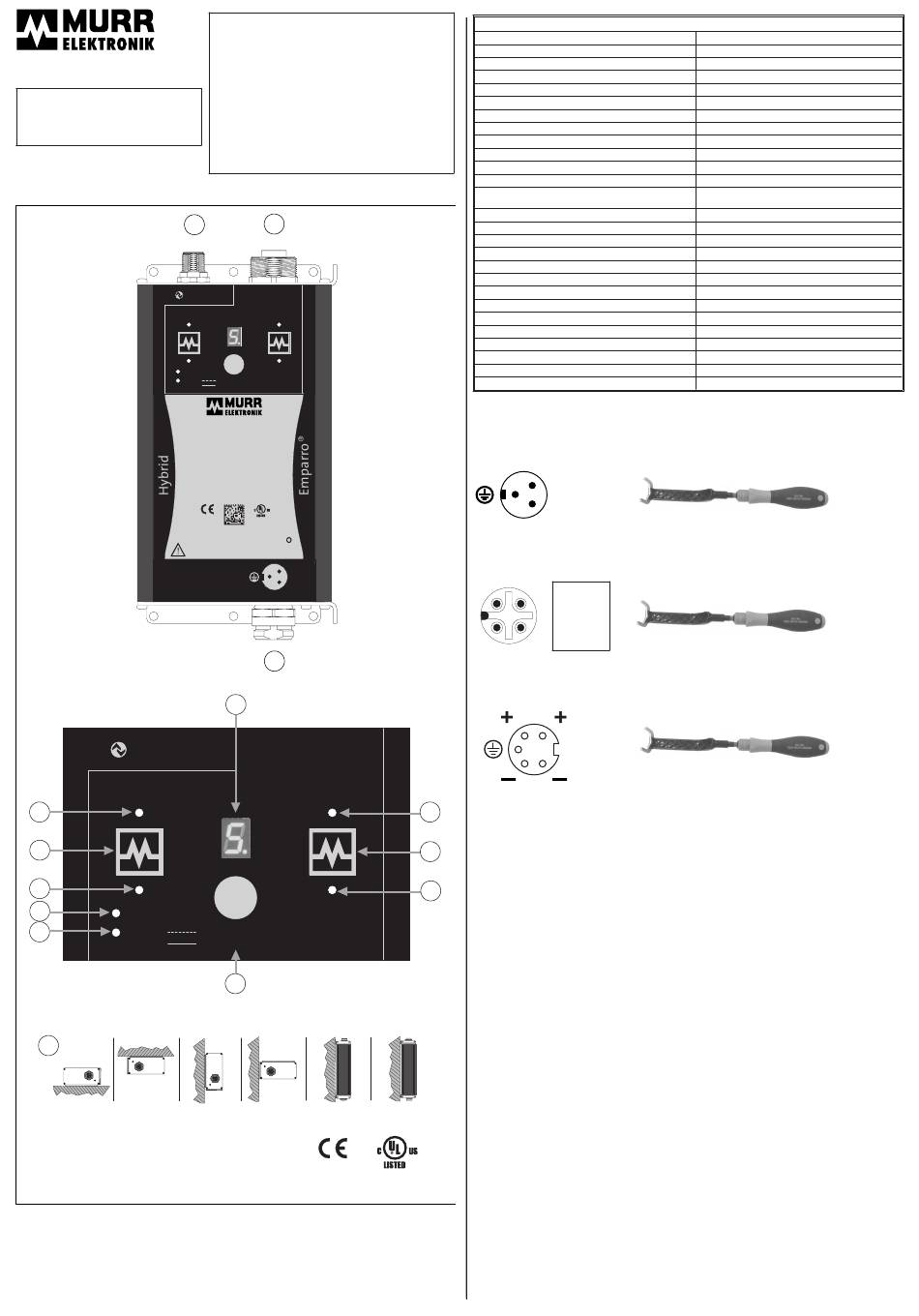

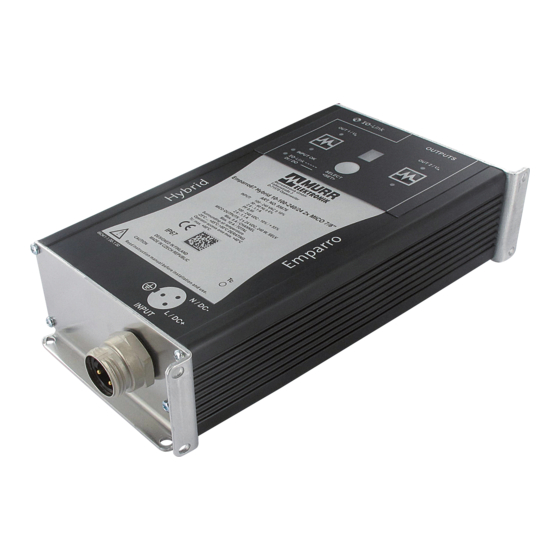

Emparro67 10-100-240/24 2xMICO 7/8" IOL
Art. No. 85676
INSTALLATION INSTRUCTIONS
Product of the Emparro67 series
IO-Link
OUT 1 / U
INPUT OK
IO-Link
DI / DO
Emparro67 Hybrid 10-100-240/24 2x MICO 7/8'' IOL
IO-Link
OUT 1 / U
S
8
7
6
5
INPUT OK
4
IO-Link
DI / DO
11
(1) General
Plug connector only under zero voltage (Insert / Remove).
The compact power supply unit is potted and suitable for harsh environmental conditions.
Only for use in pollution degree 2 environment (Controlled Environment).
In order to take the best advantage of
the features that this power supply has
to offer and to ensure long term
reliability for your equipment, please
read this manual carefully before
installation and use. It should be
retained for future reference.
3
2
OUTPUTS
OUT 2 / U
S A
SELECT
SELECT
<SET>
<SET>
Murrelektronik GmbH
Falkenstraße 3
D-71570 Oppenweiler
ART. NO. 85676
INPUT: 100 - 240 VAC ± 10%
50 - 60 Hz ± 6%
2.7 - 1.2 A
PF 0.95
100 - 240 VDC - 10% / + 55%
2.7 - 1.1 A
MICO OUTPUTS: 2 x 24 VDC, 240 W, SELV
Max. 8 A / OUTPUT
Max. 10 A / TOTAL
Surrounding air temperature
-25°C ... +80°C >50°C DERATING
Operator access area max. +40°C
Tc: max. +80°C
IND.CONT.EQ.
IP67
61RM
45012 - 1.00 - 1.00
Tc
DESIGNED IN FINLAND
MADE IN CZECH REPUBLIC
CAUTION
Read instruction manual before installation and use.
N / DC-
L / DC+
INPUT
1
9
OUTPUTS
OUT 2 / U
A
SELECT
SELECT
<SET>
<SET>
10
IP67
(2) Technical specification, Art. No. 85676
Nominal voltage
Input voltage range
Power distribution systems
Nominal frequency
Input current, I nom.
Inrush current
Efficiency, typ.
Power factor, typ.
Output power
Power losses
No-load power losses
Internal fuse F1:
External fuse max.
Safety class
Output voltage
Output voltage, adjustable via the IO-Link
Static regulation accuracy
Dynamic regulation accuracy typ.
Start-up time
Hold up time of the output, typ.
Output ripple
Overloading / temperature protection
Relative humidity
Maximum surrounding air temperature
Storage temperature
Protection class, case, EN 60529
Dimensions W x H x D; Weight
(3) Features
[1] Input terminal:
3-pin 7/8" receptacle male with external threads.
To tighten the mating connector use Murrelektronik 7/8" 1.5 Nm torque wrench set AF 22:
Art. No.: 7000-99104-0000000 with correct 7/8" wrench.
N / DC-
L / DC+
[2] IO-Link terminal:
4-pin M12 receptacle male with external threads.
To tighten the mating connector use Murrelektronik M12 0.6 Nm torque wrench set AF 13:
Art. No.: 7000-99102-0000000.
4
1
2
3
[3] Output terminal:
5-pin 7/8" receptacle female with internal threads.
To tighten the mating connector use Murrelektronik 7/8" 1.5 Nm torque wrench set AF 22:
Art. No.: 7000-99104-0000000 with correct 7/8" wrench.
(Us)
(Us)
[4] DI/DO, LED is yellow / IO-Link, LED is blinking green.
[5] Input power OK, LED is green.
8
[6] Channel is selected when the LED is yellow.
[7] The channel selector switch. You can turn the output ON or OFF with this switch.
[8] Channel output is ON / LED is green.
7
- channel output load is 90% or more from setting current / blinking green LED.
- channel output is OFF / LED is red.
- overcurrent trip / LED is blinking red.
[9] 7-segment display shows the current limit value. When changing the current limit, the dot will
6
blink.
[10] Select / set switch.
(4) Functionality
Checking current limit:
Press select switch [10], channel U has yellow LED ON [6] and 7-segment display show current
limit, press select switch [10] again and channel U
display show current limit. After checking limits, wait few seconds and channel LED [6] will go
OFF.
Adjusting the current limit:
REMARK!
Current setting only when outputs are in OFF mode (automatic).
1. Press select switch [10] for 3 seconds.
2. Both channels have yellow LED blinking [6].
3. Select the channel with the channel selector switch [7].
4. 7-segment display [9] shows the current value of the current channel and the dot in the display
is blinking.
5. Use select switch [10] to set current limit for selected channel (1A -> 2A -> 3A...).
6. After you have set current limit, press channel select switch [7] or wait few seconds.
7. To get the channel active, press the switch [7] and then channel output LED [8] will change
from red to green.
(5) Location
The power supply is cooled by natural convection. Protection degree of the housing is IP67.
Switch-Mode Power Supply for both inside and outside of the cabinet with 7/8'' input-, 7/8'' output
connector and M12 IO-Link connector.
(6) Mounting [11]
IND.CONT.EQ.
- front mounting with 6 x M4 screws.
61RM
- side mounting with 4 x M4 screws.
Vertical and horizontal mounting is possible. Not for direct sunlight.
(7) Switching on
Check input and output connectors and their connection before switching power on. Current limit
for different outputs U =2 A and U
(8) Loading capacity
The nominal current for one output is 8 A and the total current for both outputs is 10 A. If total
output current goes over 10 A for over 4 seconds, output U
We reserve the right to change this specification.
www.comoso.com
2,7 A
91,6% / 115 VAC - 92,8% / 230 VAC
0,99 / 115 VAC - 0,88 / 230 VAC
20 A in building installations. Circuit
breaker type B or C recommended.
0->100%->5%; <2ms:5%, >2ms: 2%
-25°C - +80°C (> +50°C derating)
1 24 V
2 DI/DO
3 0 V
4 IO link
(U )
A
(U )
A
A has yellow LED ON [6] and 7-segment
) =8 A (factory default).
V1.1
100 - 240 VAC
90 - 265 VAC
TN, TT, IT mains
50 - 60 Hz ±6%
/ 115 VAC - 1,2 A / 230 VAC
ms ms
< 5,9 A / 230 VAC after 1 ms
240 W
< 18,7 W with 230 VAC
< 3,7 W with 230 VAC
6,3 A (T)
1
24 VDC
24 - 28 VDC
+/- 1%
< 0,6 s
> 20 ms
< 10 mV
ms
Yes
4 - 100%
-40°C - +85°C
IP67
217 x 110 x 53 mm; 1,9 kg
) will be switched off.
