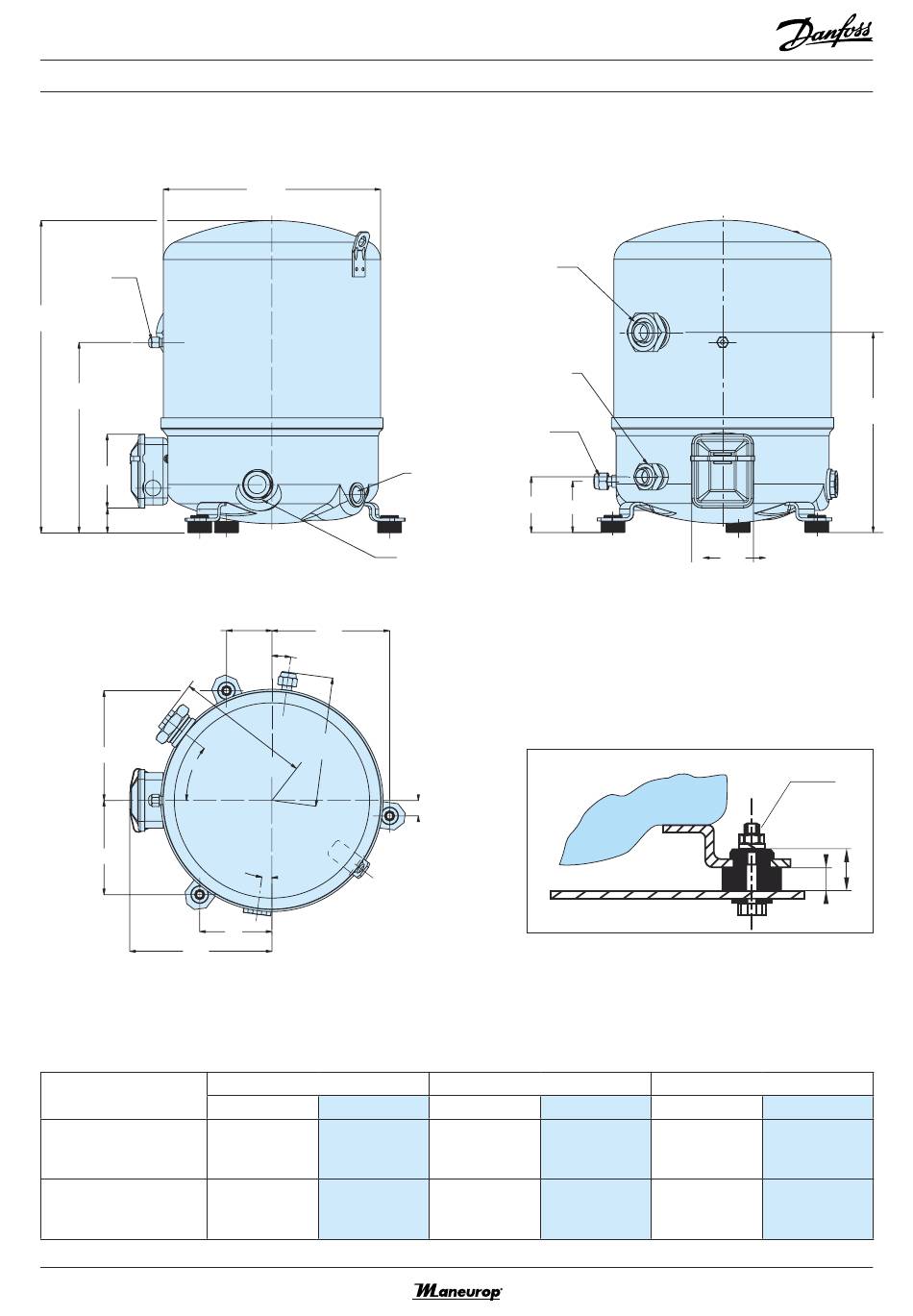

OUTLINE DRAWINGS
2 cylinders
Schrader
1/4"
413
252
98
32
60
145
38°
125
188
NTZ096
NTZ108
NTZ136
ø 288
156
8°
171
Suction 179
Discharge 176
8°
96
Rotolock connections size
Suction
Discharge
1"3/4
1"1/4
1"3/4
1"1/4
Suction rotolock
1"3/4
Discharge rotolock
1"1/4
Oil equalisation
3/8"
PTC
crankcase heater
74
68
Threaded oil
sight glass
Silent block
21
Pipe sizing
Suction
Discharge
7/8"
1"1/8"
RECIPROCATING COMPRESSORS
82
Rotolock valve
Suction
3/4"
V07
3/4"
V02
265
HM8-40
23
15
Discharge
V04
V04
7
