oConnor 1030D Operator's Manual page 10

Operators Guide
platform
platform sub-base
tilt lock lever
level bubble
button
level bubble
pan drag
adjustment knob
battery
compartment
8
platform hook

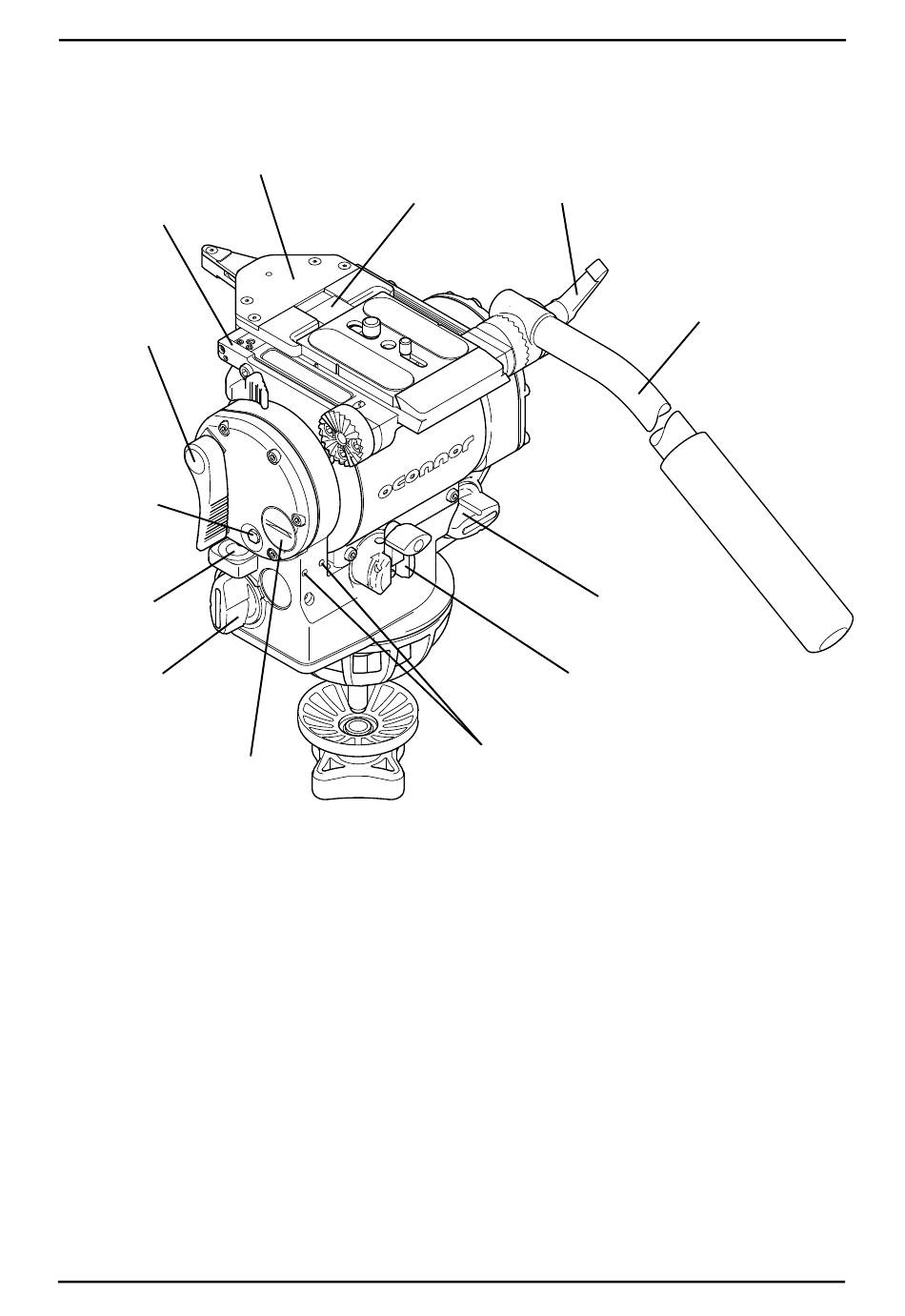

Figure 2 1030D/Ds Fluid Head, left-hand side (rear)
handle clamp
tilt drag
adjustment knob
counterbalance
crank handle
(fold-out)
provision for
attachments
handle
