u-blox EVK-M8230 Quick Start

Quick Start EVK-M8230

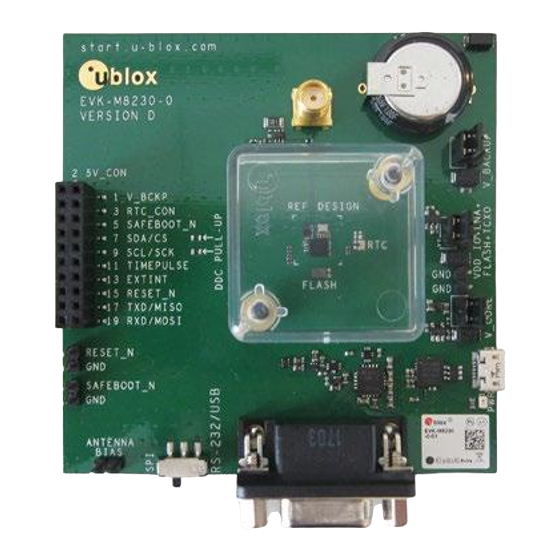

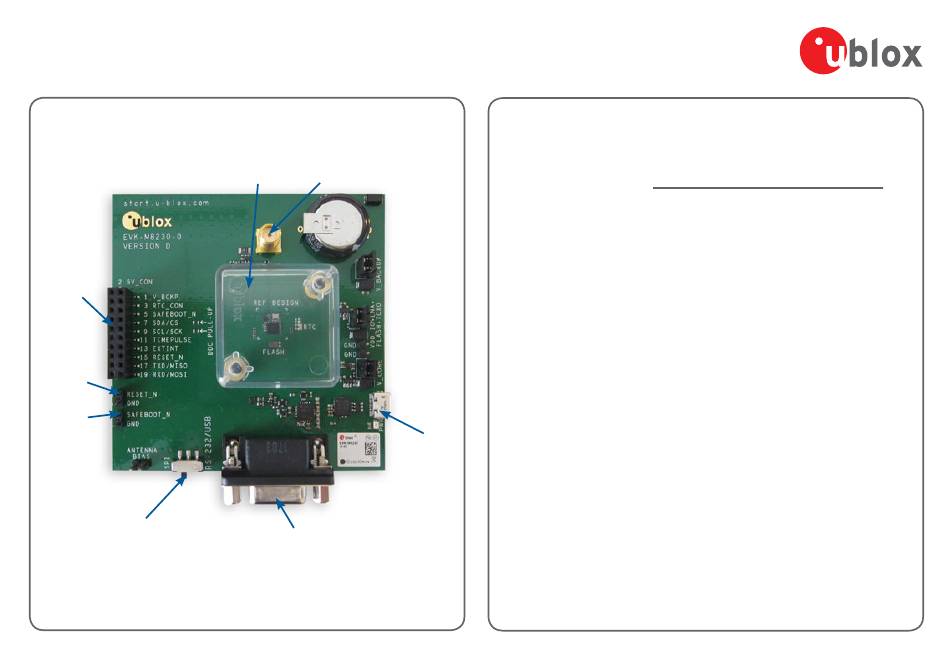

1. Overview

G (20-pin
connector)
F (RST)
E (Boot)
D (SPI or RS232/USB switch)
Copyright © 2017, u-blox AG
Plastic
A (RF IN)
protection cover
C (RS232)

2. Setup

1. Download the EVK-M8230 software (and docu-
mentation) from www.u-blox.com/evaluation-kits
and install the software. For more instructions, see
section 5, Installation.
2. Connect the EVK to PC. Options:
• USB: Connect via USB port (B). Set switch (D) to
RS232/USB.
• UART: Connect via RS232 (C). Set switch (D) to
RS232/USB.
Note: The Windows system will automatically search
for and install USB driver.
3. Provide power to the device at all times, either via
B (USB)
USB or the 5V_CON pin on the 20-pin connector (
4. Connect antenna signal to EVK via RF IN (
5. Start the u-center GNSS Evaluation Software and
select the corresponding COM port and baud rate.
G ).
A ).
