Summary of Contents for Vinten Vision Pozi-Loc 3880-3
- Page 1 Pozi-Loc Vinten Camera Control Solutions...
- Page 2 All rights reserved throughout the world. No part of this document may be stored in a retrieval system. transmitted, copied or reproduced in any way including, but not limited to, photocopy, photograph, magnetic or other record without the prior agreement and permission in writing of Vinten Broadcast Limited. Vinten and Vision are registered trademarks of Vinten Broadcast Limited.
-
Page 3: Preface
It also covers essential health and safety information and a section on maintenance that will ensure you keep your new product in perfect condition. To receive additional benefits, register with Vinten now, on line by visiting www.vinten.com/regis- ter, or by completing the registration form. -
Page 4: Safety - Read This First
Safety - Read This First Warning Symbols in this Operators Guide Where there is a risk of personal injury, injury to others, or damage to the tripod or associated equipment, comments appear, highlighted by the word WARN- ING! and supported by the warning triangle symbol. Technical data Levelling Maximum... -
Page 5: Further Information
For full details on maintenance and spare parts, please refer to Vision Pozi-Loc Tripods - Spares and Repairs (Publication Part No. 3770-9) This is obtainable from Vinten Broadcast Limited or your local Vinten distributor. For information on-line, visit our website at... -
Page 6: Table Of Contents

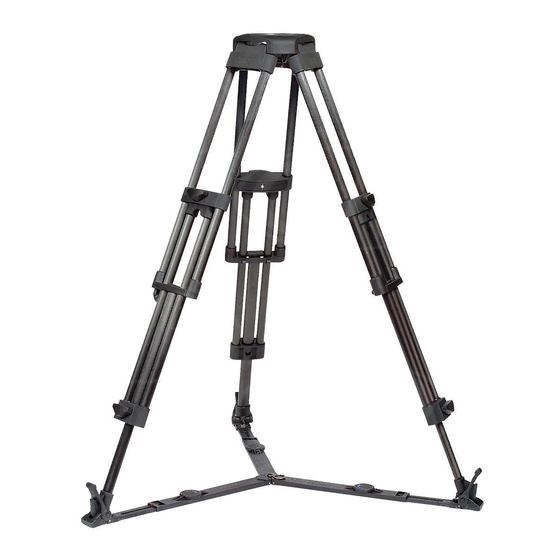

Contents Page Preface ..............3 Safety - Read This First . - Page 7 Typical Vision Pozi-Loc Tripod Tripod bowl Clamp knob Floor spreader Floor spreader adjuster Leg tie strap Spread-Loc attachment point Tie down hook...
- Page 8 Typical Vision Pozi-Loc Baby-Legs Tripod Tripod bowl Clamp knob Tie down hook Cleat rope spreader...
-
Page 9: Introduction
Pozi-Loc leg clamp, which provides quick set-up and easy adjust- ment. The tripods are designed for use with Vinten floor spreaders and dollies. An optional mid-level spreader may be used. Low-level ‘baby-legs’ versions are also available, fitted with a simple cleat rope spreader. -
Page 10: Operation
Operation NOTE: The following procedures refer to a two-stage tripod fitted with a Vision head and a floor spreader. The procedure for single-stage tripods is essentially similar. When using a two-stage tripod the bottom stages should be fully extended or fully retracted, unless conditions such as split levels prevent this. Lift the complete tripod and head out of the case using the finger holes just below the top clamps. -
Page 11: Optional Equipment
Optional equipment 'Spread-Loc' mid-level spreader To install the spreader: Grip the ends of each spreader arm in turn between thumb and fore-finger and press in the attachment release buttons (9). Push the arm into the tripod attachment until the release engages. Fit the carpet feet (10). -
Page 12: Carrying Strap
Carrying strap A carrying strap is available as an optional accessory and is installed as follows: 150 mm bowl tripods On the underside of the tripod bowl, identify the M6 tapped hole (18). Position the bowl strap anchor (17) on the underside of the tripod bowl, ensuring it is cor- rectly oriented. - Page 13 (11.1) (12) (13) (14) (15) (16) (11) (17) (11.1) 150 mm (18) (16) (17) (11.1) (19) 75/100 mm (20) Carrying strap...
-
Page 14: Servicing
Servicing General Vision products are robustly made to high engineering standards and little attention is required to maintain serviceability save regular cleaning. Attention to the following points will ensure a long and useful service life with minimum need for repair. Cleaning During indoor use, the only cleaning required should be a regular wipe over with a lint-free cloth. - Page 15 (22) (21) (23) Top clamp Top clamp Adjust a top clamp as follows: Turn the clamp knob (21) to the vertical, ‘off’ position Remove screw (23). Using a suitable peg spanner, back off the threaded insert (22) slot by slot until the leg is free to move under its own weight. While sliding the leg in and out, gradually tighten the threaded insert (22) until the clamp...
- Page 16 Examine the shaft (24). If there is an identifying groove (24.1) on the shaft, proceed as fol- lows. Otherwise, consult Vision Pozi-Loc Tripods - Spares and Repairs (Publication Part No. 3770-9) or contact your local Vinten dealer. Replace the clamp knob (26) and turn it to Position 2.
- Page 17 With the knob still in Position 2, slide the leg in and out and gradually tighten the grubscrew (24) until the clamp begins to grip. Back off the grubscrew (24) by a quarter-turn (90°). Secure the clamp knob (26) with the washer (27) and retaining screw (28).
-
Page 18: Parts List
Parts list The following lists include main assemblies and optional accessories. For further information re- garding repair or spare parts, please contact Vinten Broadcast Ltd or your local distributor. For information on-line, visit our website at www.vinten.com. Tripods Two-stage tripod, aluminium legs, 150 mm bowl... - Page 19 Dollies ENG (OB) dolly 3319-3B ENG (Studio) dolly 3319-3C ENG (OB) dolly - small 3319-3ST EFP (OB) dolly 3497-3E EFP (Studio) dolly 3497-3G Optional accessories Carrying strap 3425-3P...
