AQUAWORX IPC PANEL INSTALLATION INSTRUCTIONS
The Aquaworx IPC (Intelligent Pump Control) Panel
provides an innovative approach to pump control.
Designed specifically for the onsite industry, the IPC Panel
leverages simple pressure transducer technology for the
enhancement of pump system performance, and ease of
installation. Relying on an embedded microprocessor in
the pump controller and a floatless pressure transducer in
the pump chamber, the IPC Panel monitors liquid levels,
controls pumping time intervals, and logs events in real
time. Using the Mountable and Removable Controller
(MARC) as the user interface, the IPC Panel offers a cost-
effective solution with expanded capability.
Aquaworx offers three models of the IPC Panel; Simplex,
Duplex and Sand Filter, to meet a variety of system design
requirements. The Simplex Panel has the ability to time
control a single pump, while the Duplex Panel can control
two pumps in an alternating design with independent
timing. The Sand Filter Panel has the ability to time control
two individual pumps having independent level sensors,
allowing for a design which can time-dose a treatment
system and drainfield.

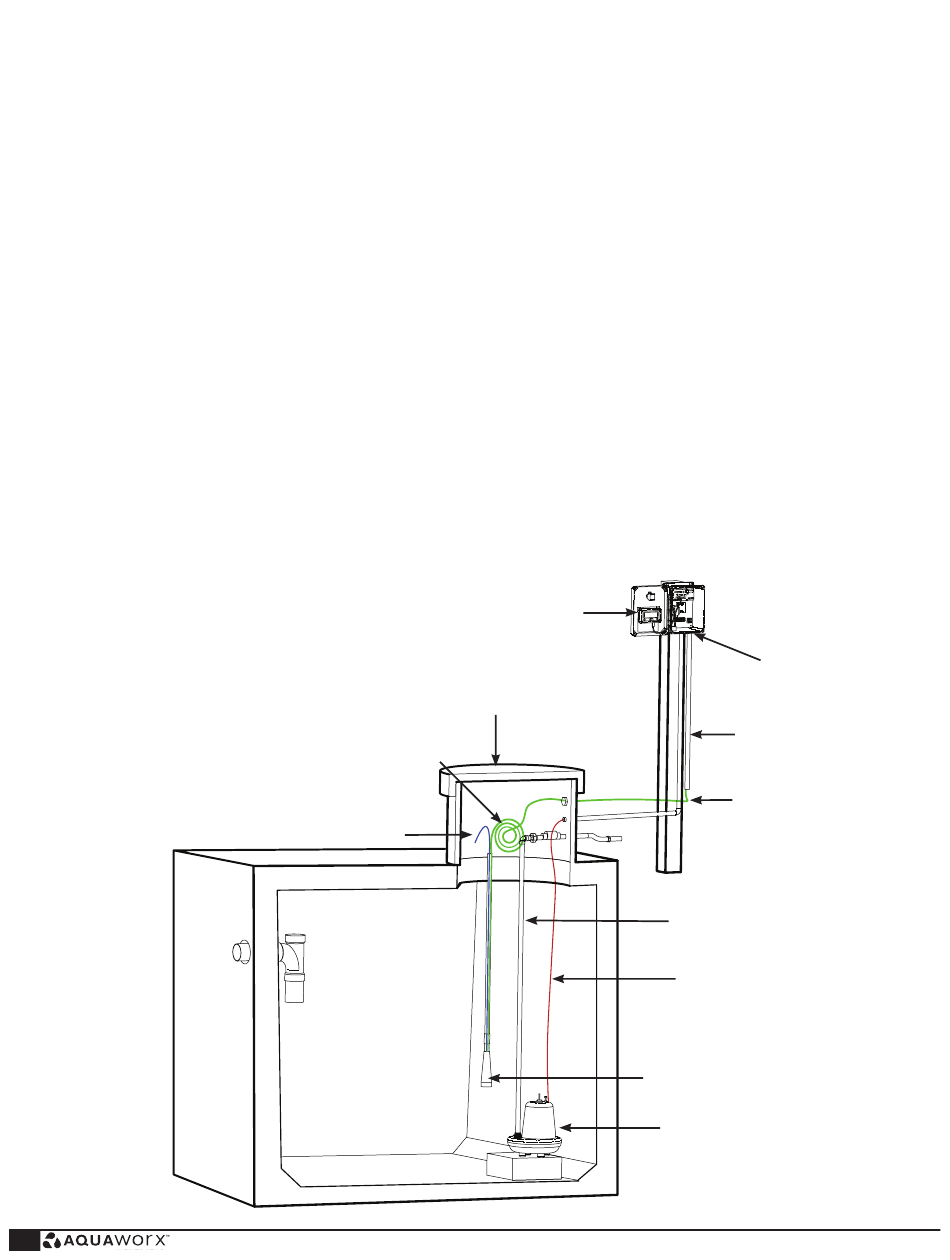

FIGURE 1: PUMP TANK TRANSDUCER ASSEMBLY
2
Pump Tank Riser
Excess Transducer Cable
Looped Snorkel Tube
secured to Top of Riser
Contact Infiltrator Water Technologies 1-800-221-4436 for additional technical and product information.
I. General
Unpack the Aquaworx IPC Panel and check for any visible
damage both external and internal. Also verify that there
are no cracks or damage to the pressure transducer bell.
Note: You will need to identify the number on the pressure
transducer bell as it is needed during the MARC setup.
Notify Aquaworx immediately at 1-877-278-2979 if any
damage has occurred.
ALL INSTALLATIONS MUST BE COMPLETED IN
ACCORDANCE WITH ALL APPLICABLE FEDERAL,
STATE AND LOCAL CODE.
Aquaworx IPC Panel
REQUIRED
Gas Tight Seal
Conduit
Transducer Signal Wire
Pump Discharge
Pump Power Supply
Pressure Transducer Bell
Pump
