Installation Instructions - GE IM4D Instructions Manual

Are you following the correct instructions?

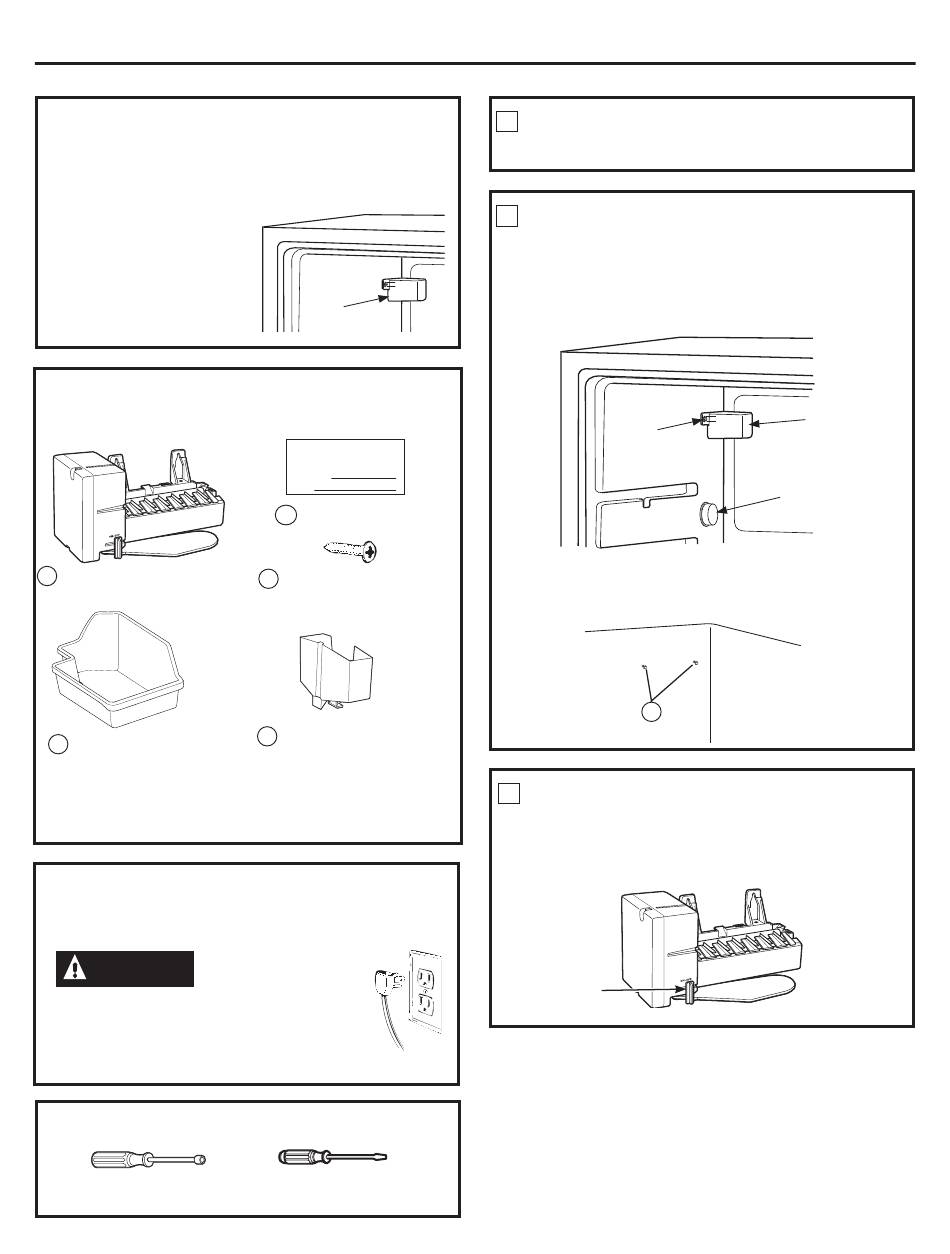

If your refrigerator's freezer has a cover (A) in
the back left-hand corner as shown here, con-
tinue following these instructions. Otherwise,
follow the instructions
in the Installation
Instructions that come
with the IM4D kit.
Follow these instructions using these
IM4D kit parts:
1 Icemaker
8 Ice Bucket
The IM4D kit is used for multiple models. You will have
parts leftover after completion of the installation.
BEFORE YOU BEGIN
Read each step thoroughly and remove all
packaging materials before proceeding.
WARNING
To eliminate the
risk of electric shock or injury during
installation, you must first unplug the
refrigerator before proceeding. Failure
to follow these instructions can result in
electrical shock.
TOOLS YOU WILL NEED
1/4" Nutdriver

Installation Instructions

A
ICEMAKER
WARRANTY VERIFICATION
Date Installed
Dealer
Warranty Label
7
10 Phillips Head Screws,
for mounting icemaker (2)
(7/8")
Icemaker Fill Cup
13
(side-mounted)
Flat blade and Phillips
screwdrivers
REPOSITION FREEZER SHELF
1
Make sure the freezer shelf is in the lowest position.
PREPARE FOR INSTALLATION
2
1. Inside the freezer, remove the screw (A) from the
cover (B) and the cover (B) as shown. Discard the
screw and cover.
2. Remove the icemaker plug (C) with a flat head
screwdriver and discard.
A
3. Insert the 2 Phillips head screws (10) as shown.
The screws should extend approximately 1/2" (13
mm) out from the freezer wall.
10
SET POWER SWITCH TO OFF
3
Set the icemaker power switch to OFF. Leave
the power switch in the OFF position until the
refrigerator is connected to the water supply
to prevent premature operation.
Power
Switch
OFF
3
B
C
