Chapter 4 LEDs and Connector Pinouts: Description
This chapter provides information on the TBC1-GFAST expansion card LEDs and connector pinouts.

4.1 TBC1-GFAST expansion card: LEDs

The TBC1-GFAST expansion card has two LEDs per port: En and Link.

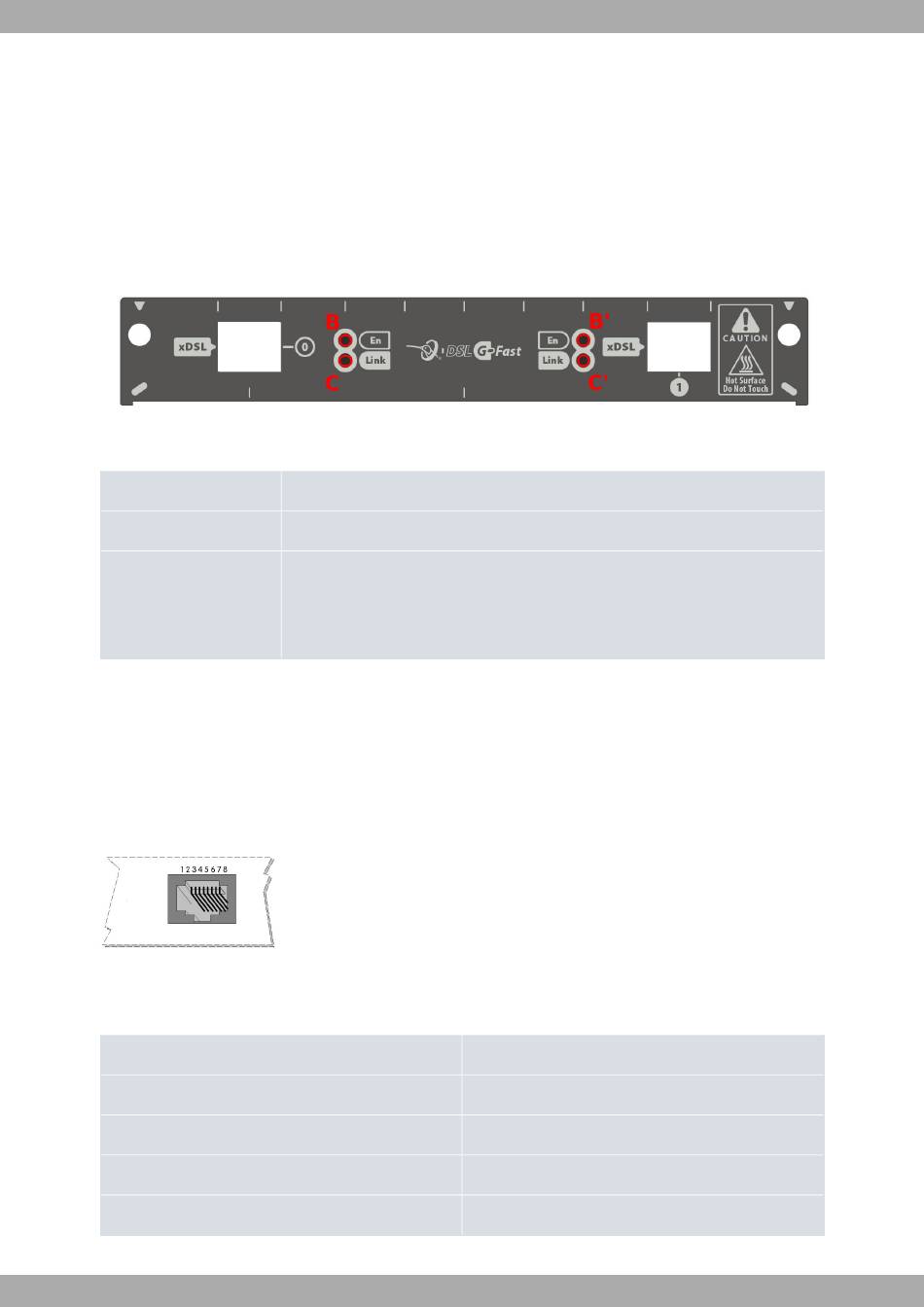

TBC1-GFAST card : LEDs
Fig. 4:
TBC1-GFAST card LEDs
Item
A and A'
B and B'

4.2 Connector pinouts

The TBC1-GFAST expansion card has one RJ-45 connector per port.
4.2.1 RJ-45 connector
The following figure shows the RJ-45 connector pinouts:
RJ-45 connector pinouts
Fig. 5:
The following table displays the information associated with each connector pinout:
TBC1-GFAST card RJ-45 Connector Pinouts
RJ-45 pinouts
1
2
3
4
TBC1-GFAST card
.
State
Yellow => Lights up when the port is enabled.
Slow blinking => looking for connection.
Rapid blinking => negotiation.
Steady => connected.
Signal
--
--
--
TIP
