Teldat S.A.
Chapter 4 LEDs and connector pinouts: Description
This chapter provides information on the TBC1-1VDSL1SFP expansion card LEDs and connector pinouts.

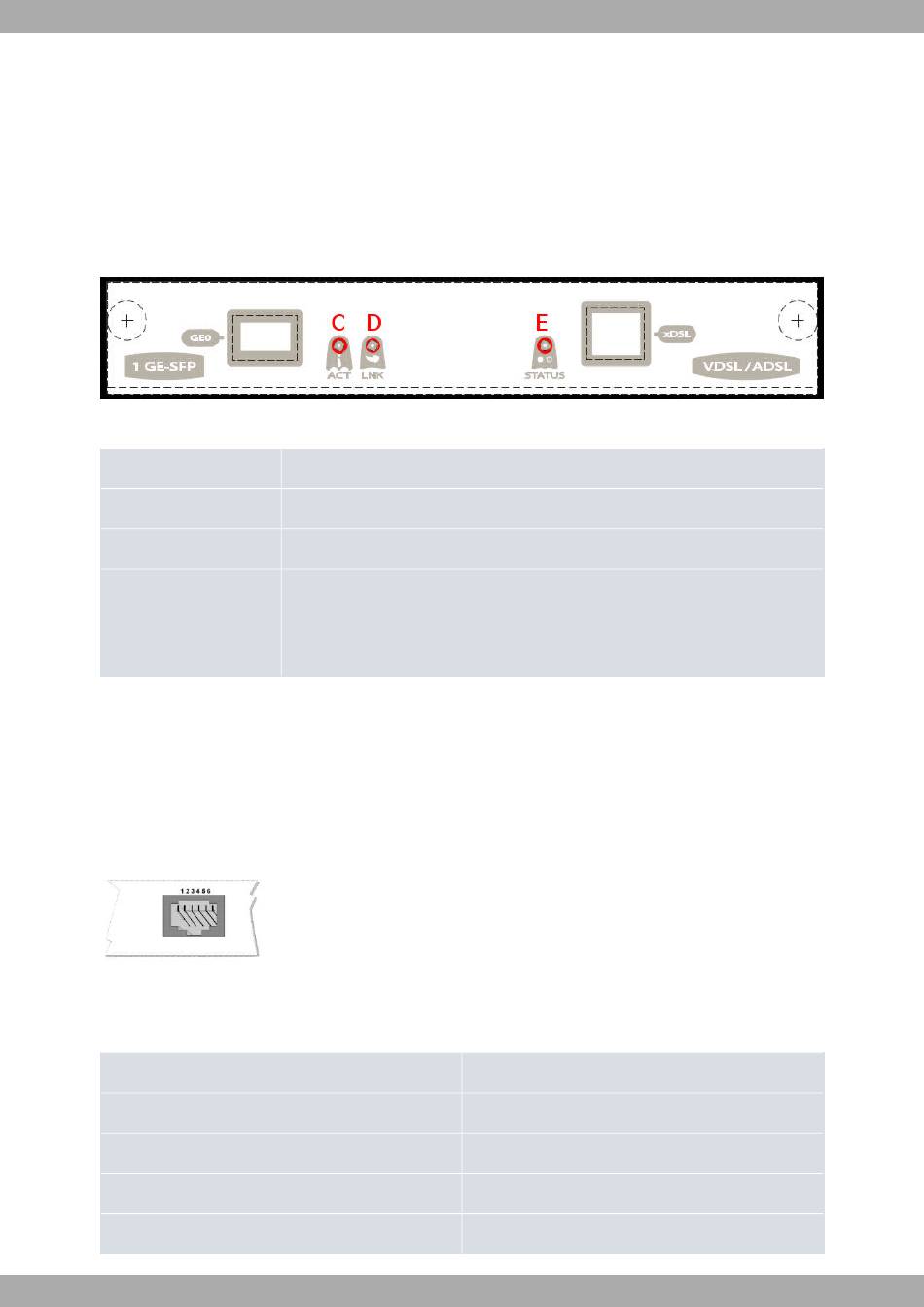

4.1 TBC1-1VDSL1SFP expansion card: LEDs
The TBC1-1VDSL1SFP expansion card has three LEDs: ACT, LINK and STATUS.
TBC1-1VDSL1SFP card : LEDs
Fig. 3:
LEDs table of the TBC1-1VDSL1SFP card
Item
C
D
E
4.2 Connector Pinouts
The TBC1-1VDSL1SFP expansion card has one RJ-11 connector and one SFP connector.
4.2.1 RJ-11 Connector
The following figure shows the RJ-11 connector pinouts:
RJ-11 connector pinouts
Fig. 4:
The following table display the information associated to each connector pinout:
TBC1-1VDSL1SFP card RJ-11 Connector Pinouts
RJ-11 pinouts
1
2
3
4
TBC1-1VDSL1SFP card
.
State
Blue => Lights up when there is activity.
Yellow => Lights up when the link is established.
Slow blinking => looking for connection.
Rapid blinking => negotiation.
Steady => connected.
Signal
--
--
TIP
RING
4 LEDs and connector pinouts: Description
7
