Promaster 3697 Quick Start Manual

Thank you for choosing the ProMaster Vertical Control Power Grip. To ensure proper operation, please read this manual thoroughly before using this
product.

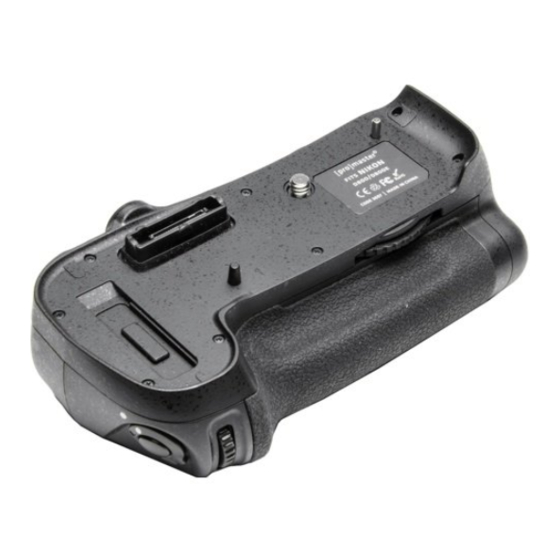

This grip is specially designed for the Nikon D800/D800E DSLR cameras. It is equipped with an alternate shutter-release button, AF on button, multi
selector, and main and sub-command dials for shooting in a vertical position. This power grip can hold one EN-EL15 rechargeable Li-ion battery, in
addition to the camera's internal battery or can use eight AA batteries (alkaline, Ni-MH or lithium) to extend your shooting time.
Caution
1. This product should only be used with compatible devices specified in this instruction sheet.
2. Only use with the batteries and battery holders recommended.
3. Cover the power terminals with the contact cap when not in use. This prevents electrical shorts caused by metal objects touching the terminals.
4. When the battery holder is removed from the grip, remove the batteries or place the holder in a container to prevent electrical shorts caused by
contact with other metal objects.
5. The memory card access lamp may light up when this grip is mounted or removed from the camera. This is part of the normal operation.
6. The control lock is not a power switch; use the camera power switch to turn the power on/off.
7. The battery level may not display properly if batteries are inserted before attaching the grip to camera.
8. Remove batteries from the grip when not in use for an extended period.
9. Do not disassemble or repair this product yourself. Doing so will void your warranty.
10. Avoid water or extreme humidity and be sure to store in a cool, dry location..
11. Do not dispose of in fire or extremely high temperature environment.
12. Keep the product or parts away from children to avoid hazard from swallowing.

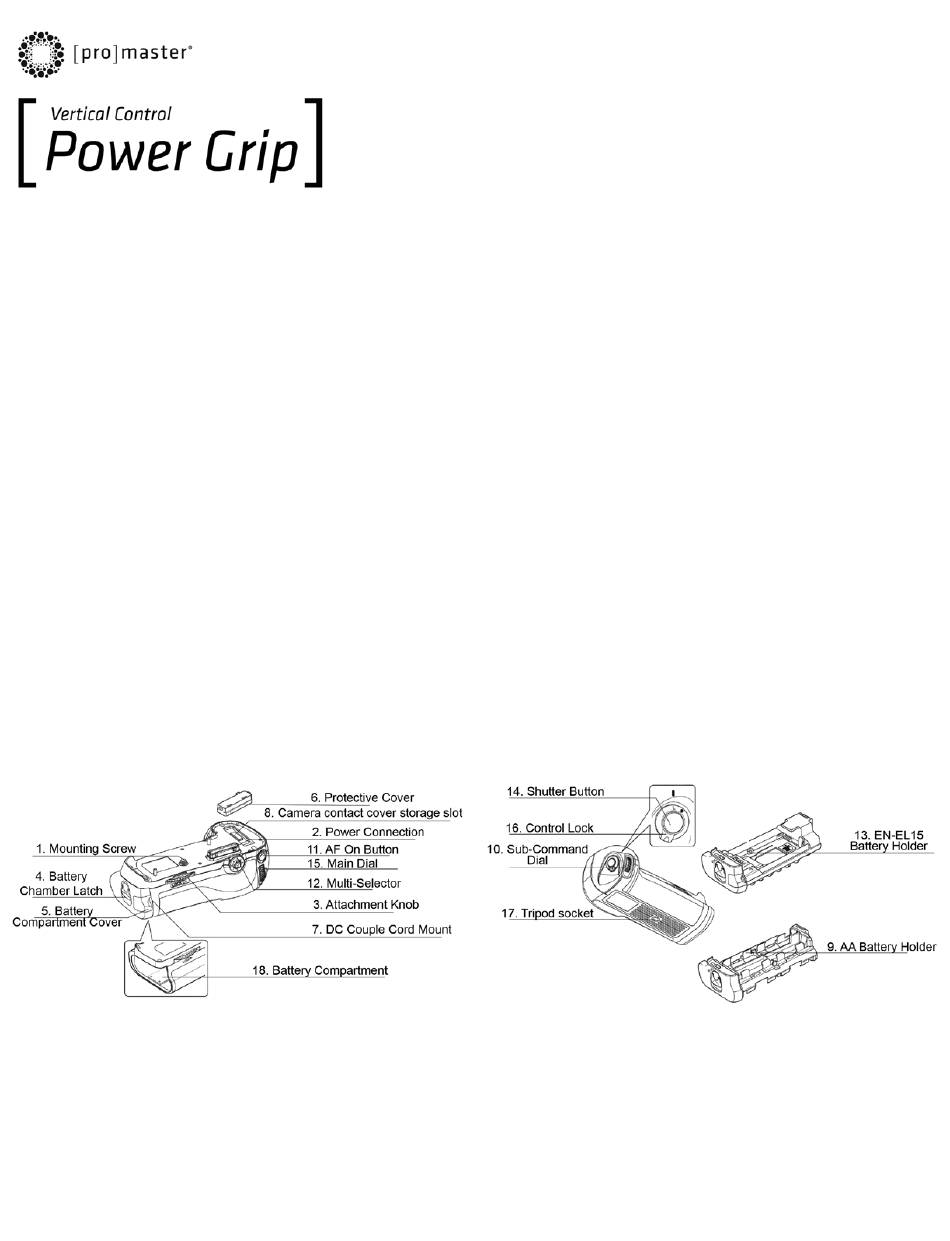

Part Names
Attaching to your camera
1. Turn off the power switch on your camera and ensure that the Control Lock (16) is in the "L" position before attaching the grip.
2. Remove the protective cover (6) from the battery grip.
3. The contacts are on the bottom of the camera where they are protected by a contact cover. Remove the contact cover before mounting the grip.
4. To prevent loss, place the camera contact cover in the contact cover storage slot (8) on the battery grip.
5. Align the mounting screw (1) with the camera's tripod socket.
6. Turn the attachment knob (3) to securely attach the grip to your camera.
Replaces Nikon MB-D12
Compatible with Nikon D800/D800E
Code 3697
