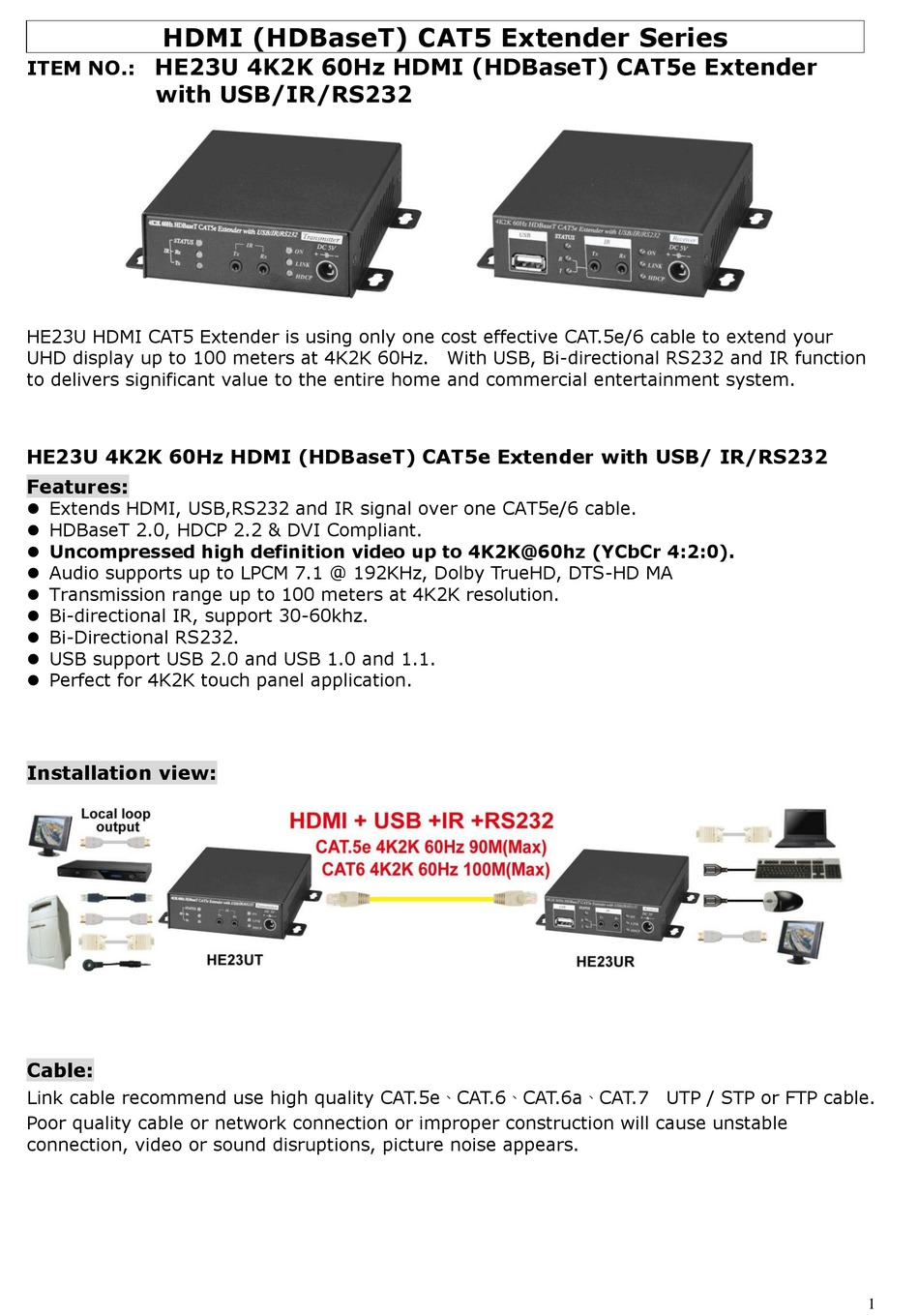

WolfPack HE23U Quick Manual

HDMI (HDBaseT) CAT5 Extender Series

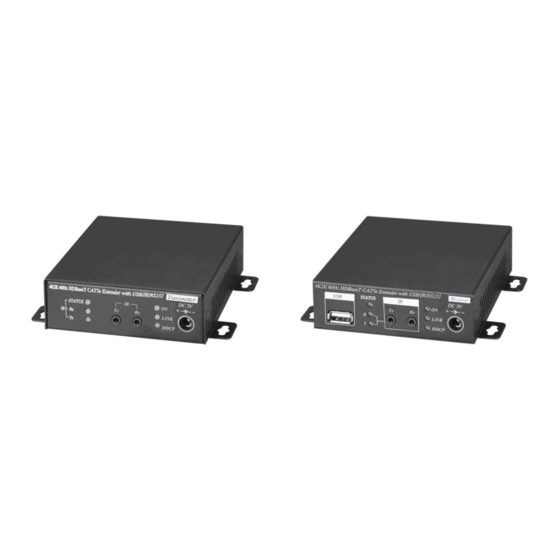

HE23U 4K2K 60Hz HDMI (HDBaseT) CAT5e Extender
ITEM NO.:
with USB/IR/RS232
HE23U HDMI CAT5 Extender is using only one cost effective CAT.5e/6 cable to extend your
UHD display up to 100 meters at 4K2K 60Hz. With USB, Bi-directional RS232 and IR function
to delivers significant value to the entire home and commercial entertainment system.
HE23U 4K2K 60Hz HDMI (HDBaseT) CAT5e Extender with USB/ IR/RS232

Features:

 Extends HDMI, USB,RS232 and IR signal over one CAT5e/6 cable.
 HDBaseT 2.0, HDCP 2.2 & DVI Compliant.
 Uncompressed high definition video up to 4K2K@60hz (YCbCr 4:2:0).
 Audio supports up to LPCM 7.1 @ 192KHz, Dolby TrueHD, DTS-HD MA
 Transmission range up to 100 meters at 4K2K resolution.
 Bi-directional IR, support 30-60khz.
 Bi-Directional RS232.
 USB support USB 2.0 and USB 1.0 and 1.1.
 Perfect for 4K2K touch panel application.

Installation view:

Cable:
Link cable recommend use high quality CAT.5e、CAT.6、CAT.6a、CAT.7 UTP / STP or FTP cable.
Poor quality cable or network connection or improper construction will cause unstable
connection, video or sound disruptions, picture noise appears.
