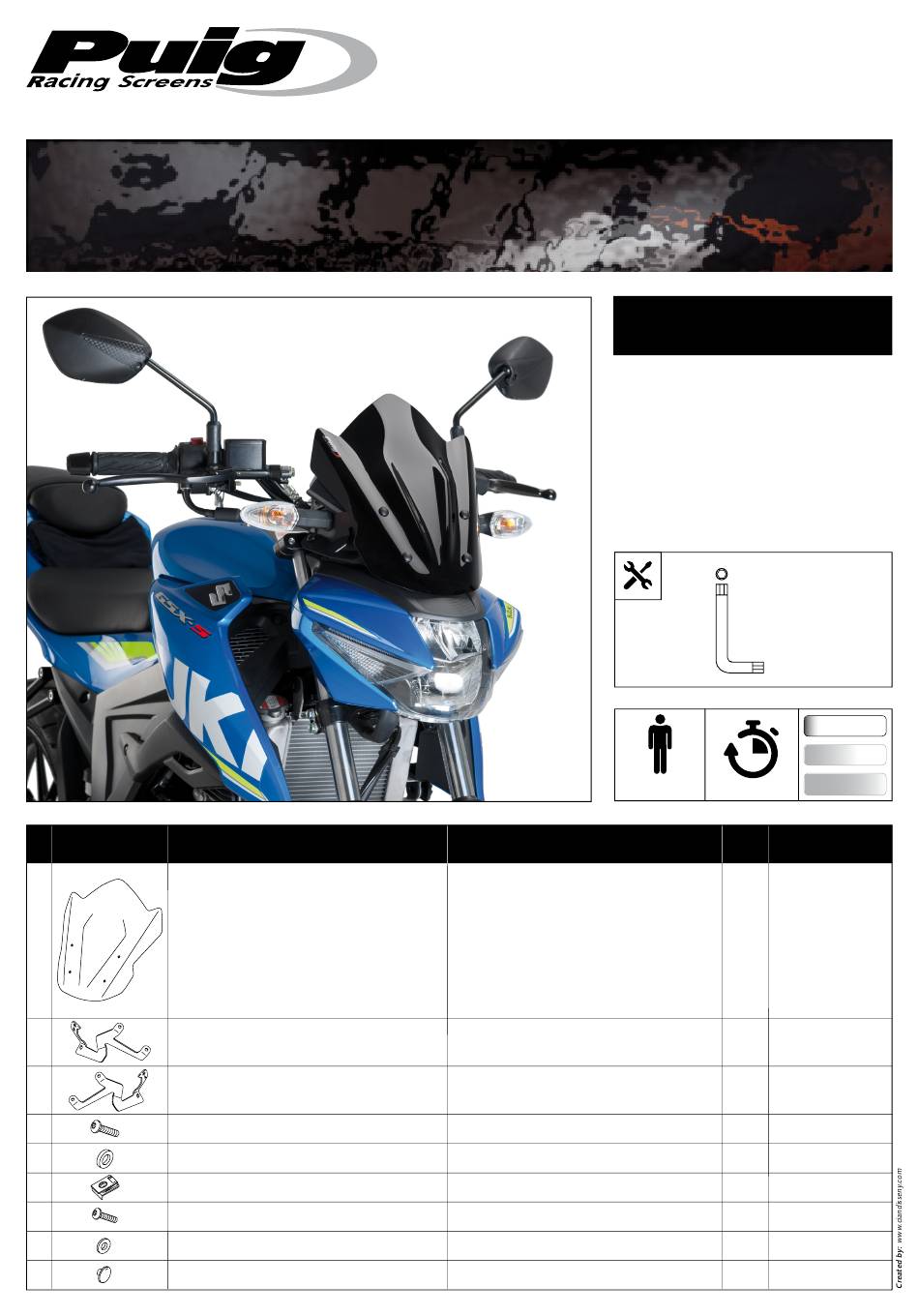

PUIG 9873 Mounting Instructions

CARENABRÍS NAKED NEW GENERATION PARA - WINDSHIELD NAKED NEW GENERATION FOR CARENABRÍS NAKED NEW GENERATION PARA - WINDSHIELD NAKED NEW GENERATION FOR
ID PIEZA / PART
1 Cúpula
2 Soporte metálico derecho (R)
3 Soporte metálico izquierdo (L)
4 Tornillo M6x16 Ø14 ISO 7380
5 Arandela de goma Ø4,5 x Ø14 x 4mm
6 Tuerca de clip M6 (negra)
7 Tornillo Allen M5x16 Ø11 ISO 7380
8 Arandela de nylon M5x1
9 Tapón tornillo M5 ISO 7380
Pg. 1/3
WINDSCHUTZSCHEIBE NAKED NEW GENERATION FÜR WINDSCHUTZSCHEIBE NAKED NEW GENERATION FÜR
SUZUKI GSX-S125 '17- SUZUKI GSX-S125 '17-
DESCRIPCIÓN
MOTOPLASTIC, S.A.
Pg. de la Ribera, 29
info@puig.tv
www.puig.tv
DESCRIPTION
Screen
Right metal support (R)
Left metal support (L)
M6x16 Ø14 ISO 7380 screw
Ø4,5 x Ø14 x 4mm Rubber washer
M6 clip nut (black)
M5x16 Ø11 ISO 7380 Allen screw
M5x1 nylon washer
M5 ISO 7380 screw cap
Tel. +34 93 849 06 33
- 08403 Granollers (Barcelona) SPAIN
info@puigusa.com
www.puigusa.com
Ref.: 9873
ALLEN
Nº 3
Nº 4
M M
1 persona
1 person 25 min
QTY
1 9873A/F/H/N/R/WM3
1 SOPOR-2P-5-9873
1 SOPOR-2P-5-9873
2 TORNI-I7380-403
6 ARAND-GD13D5X4-
2 TUERCA-TRT-M6--
6 TORNI-I7380-493
4 ARNV00000000245
4 TAPON--------85
Fácil - Easy
edi i a-In n n te e e rm m m ediate
Difícil-D D D iffi fi fi c u c u u l l t
REF.
