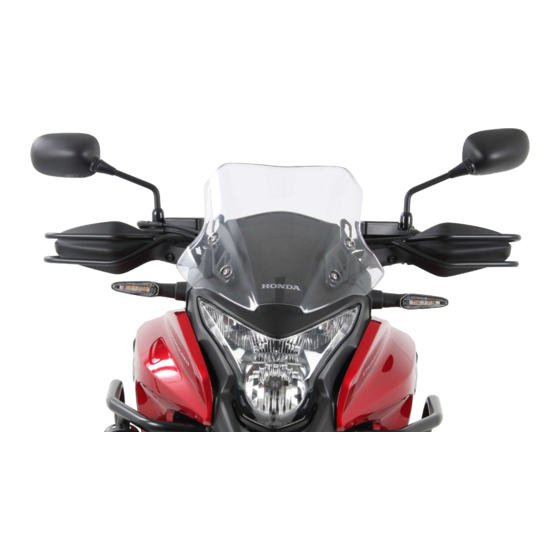

Handle protection set for honda crosstourer

Advertisement

Griffschutz / Handle protection set
HONDA Crosstourer
Baujahr 2012-2017 / date of manufacture 2012-2017
Artikel Nr.: / Item-no.:
971
420
- 03
schwarz/black
INHALT
CONTENTS
1
700008022
Griffschutz links
1
700008023
Griffschutz rechts
4
150.913
Senkschrauben M8x50
2
150.913
Senkschrauben M8x70
4
151.302
Senkscheibe ø8,4 x ø25mm
Eine Seite nach der anderen montieren, damit sich der Lenker nicht verstellt !
Wenn Sie sich nicht sicher sind, wie man eine bestimmte Arbeit ausführt, sollten Sie diese Ihrer Fachwerkstatt überlassen. Ziehen
sie alle zugänglichen Schrauben zuerst nur locker an. Nachdem alles montiert ist, werden die Schrauben dann auf das entsprechende
Anzugsmoment festgezogen. Dadurch wird sichergestellt, dass das Produkt spannungsfrei angebaut ist. Anzugsmomente beachten!
Nach der Montage alle Verschraubungen auf festen Sitz kontrollieren!
Mount one side after the other, so that the handle bar position does not change !
If you are not sure how to execute a determined action, you should ask your local distributor to do it. First, tighten all screws only
loosely. After mounting all parts, the screws should be tightened to the torque specified. This guarantees, that the product is mounted
without tension. Observe the tightening torques of the manufacturer! Control all screw connections after the assembling for tightness!
Weiteres Zubehör auf unsere Homepage. More accessories: see our homepage.
Hepco & Becker GmbH
An der Steinmauer 6
D-66955 Pirmasens
Germany
1
700008022
Handle protection left
1
700008023
Handle protection right
4
150.913
countersunk head screw M8x50
2
150.913
countersunk head screw M8x70
4
151.302
countersunk washer ø8,4 x ø25mm
Tel.:
+49 (0)6331 - 1453 - 100
Fax:
+49 (0)6331 - 1453 - 120
eMail: vertrieb@hepco-becker.de
www.hepco-becker.de
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 420971-03 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for hepco & becker 420971-03

  • Page 1 Griffschutz / Handle protection set HONDA Crosstourer Baujahr 2012-2017 / date of manufacture 2012-2017 Artikel Nr.: / Item-no.: - 03 schwarz/black INHALT CONTENTS 700008022 Griffschutz links 700008022 Handle protection left 700008023 Griffschutz rechts 700008023 Handle protection right 150.913 Senkschrauben M8x50 150.913 countersunk head screw M8x50 150.913...
  • Page 2 Griffschutz / Handle protection set HONDA Crosstourer Baujahr 2012-2017 / date of manufacture 2012-2017 Artikel Nr.: / Item-no.: - 03 schwarz/black MONTAGEANLEITUNG MOUNTING INSTRUCTIONS Befestigung des Griffschutzes seitlich links und rechts: An den Lenkerenden zusammen mit dem Original Handschutz, mit den Senkschrauben M8x70.
