Tools; Installation; Unpacking; Transport - Launch TWC-481 Installation And Parts Manual

LAUNCH

Tools

To ensure a smooth installation and adjustment, please
prepare the following tools: Two adjustable wrenches, one
set of metric box wrenches, one pair of pliers, one
screwdriver, one digital multi-meter (for voltage
measurement).

Installation

Unpacking

Unpack according to the instructions on the
package. Remove the packing materials and
inspect the machine for possible damage or loss
of accessories during shipping.
Keep the packing materials out of the reach of
children. Handle in an appropriate way if the
packing material is likely to cause pollution.
Remove the cabinet, column, swing arm and
accessory box fitted on the skid and keep them in
safe place
Caution:
A special anti-rust coating is applied on some parts
and may attract dust. Clean it when necessary.
Installation

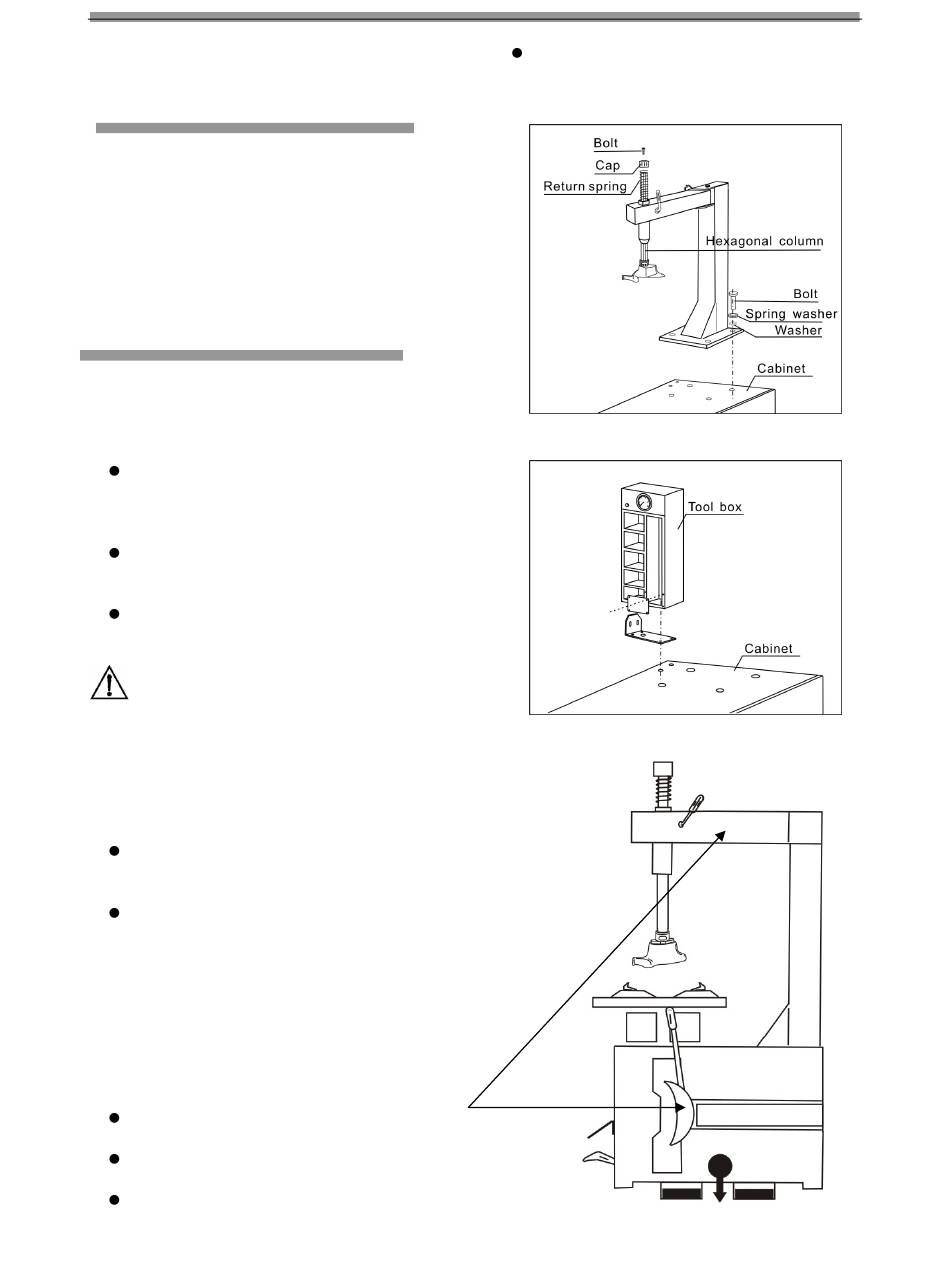

Install the Hexagonal bar spring and cap then
install the column, on the machine cabinet as
show in Fig.02, and then torque fastens.
(All accessories are located in the accessory
box) Install the tool box on the left side of the
cabinet according to figure 03. (When no assist
arm is to be installed)

Transport:

Transporting with fork lift vehicle
Prevent the bead breaker and swing arm from
moving during transportation. (Fig. 04)
Excessive tilting
transportation.
Do not drive the fork lift vehicle carrying the
equipment too fast.
should be avoided in
3
Tire Changer TWC-481
Try to keep the machine at the lowest position
and make sure it won't overturn in transportation
(pay attention to the position of the gravity
center).
Fig.02
Fig.03
Fig.04
