3.4 Analog Inputs

Module Input:
Analog Input Type
Analog Input Resolution:
Analog Input Precision:
Common Input GND:
13
2 Channel
0-20 mA, 4-20 mA
12 Bit
%1 Precision
1 GND (4 Point / Common)

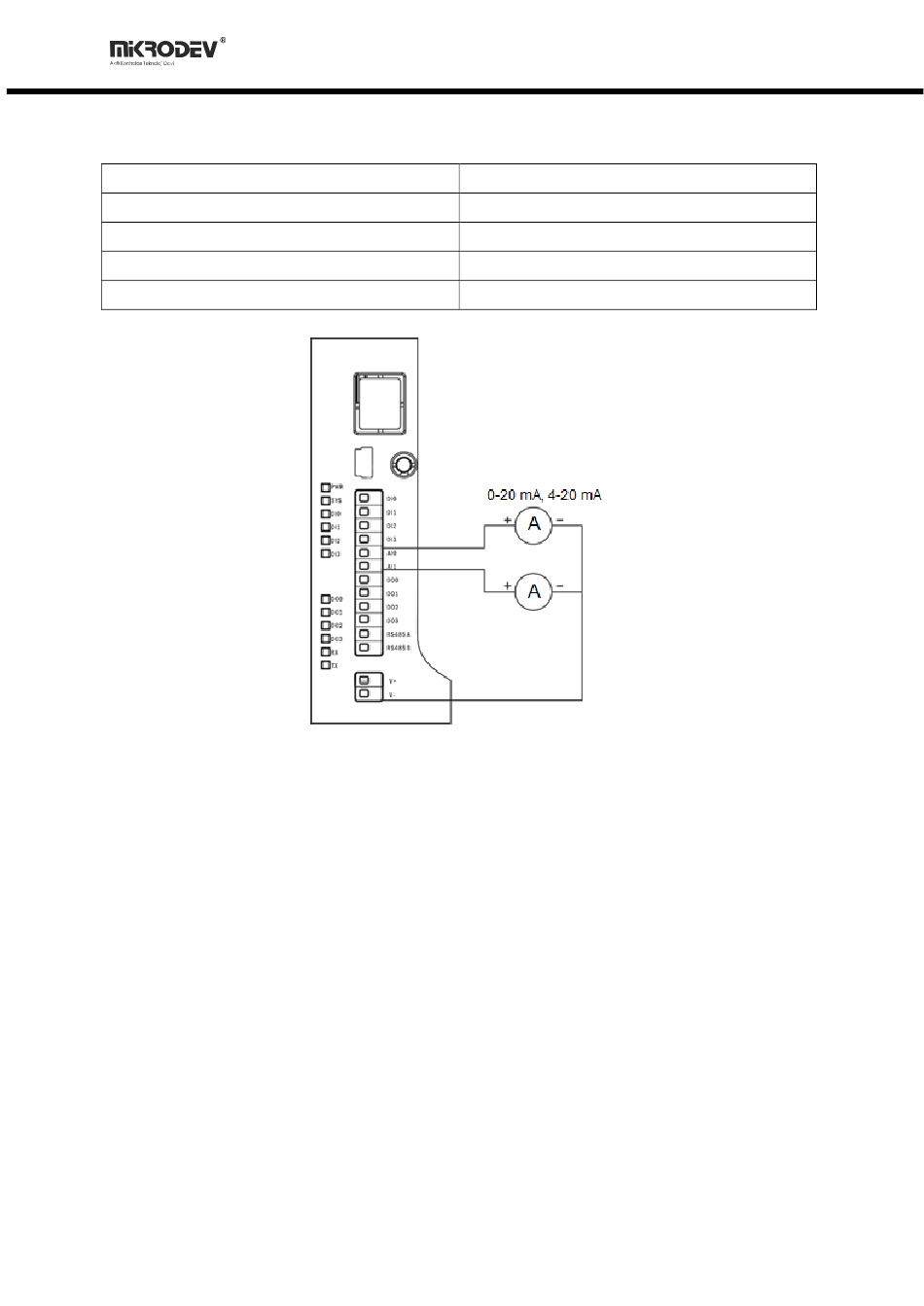

Figure 7 Analog Input Connection Diagram
MP110 SERIES – HARDWARE MANUAL
