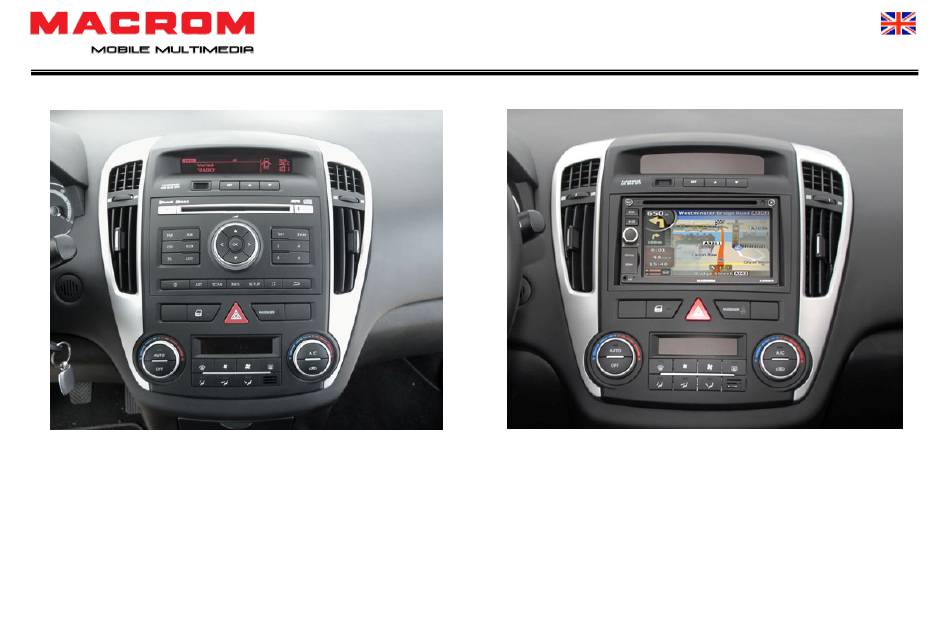

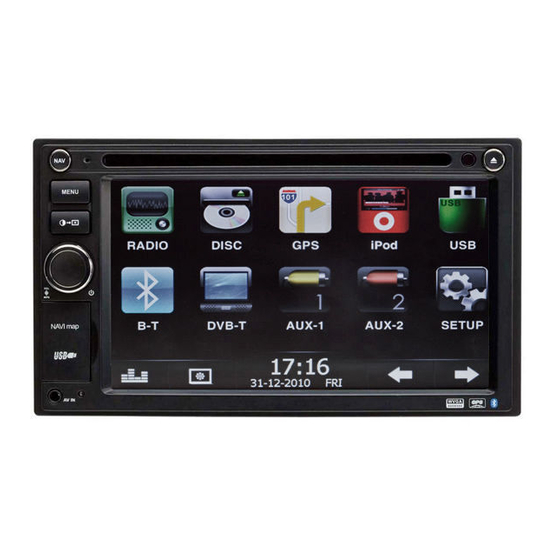

- Page 1 EF-KI2-5561 Easy fit M-DVD5561R for Kia Cee’d AFTER BEFORE Ver 1.0 07-06-2011 – Installazione Cee’d...
- Page 2 EF-KI2-5561 Easy fit M-DVD5561R for Kia Cee’d • Start removing the silver plastic flange • To remove it leverage in the lower side of the flange with a plastic flat bar (see arrows on the picture) • Be sure to use a suitable tool for this operation and protect the dashboard with paper tape to avoid to scratch the plastic.
- Page 3 EF-KI2-5561 Easy fit M-DVD5561R for Kia Cee’d • remove the 4 screws as indicated to release the OEM head unit. Ver 1.0 07-06-2011 – Installazione Cee’d...
- Page 4 Facia adapter Metal bracket • Mount the metal brackets on the Macrom head unit as indicated paying attention to center the screws on the reference lines of the brackets. • Slide in the plastic facia adapter between the brackets and the head unit body.
- Page 5 EF-KI2-5561 Easy fit M-DVD5561R for Kia Cee’d Connection harness with interface • Connect the head unit to the interface device and place the GPS antenna and the microphone before to close the plastics. Ver 1.0 07-06-2011 – Installazione Cee’d...
-
Page 6: Correct Orientation
EF-KI2-5561 Easy fit M-DVD5561R for Kia Cee’d CORRECT ORIENTATION The orientation provides the positioning of the BLACK surface facing the sky. • Pay attention to the GPS antenna position. It MUST be looking to the sky as indicated in the above picture. If not positioned correctly the GPS signal is bad and may cause a malfunction of the navigation system. - Page 7 EF-KI2-5561 Easy fit M-DVD5561R for Kia Cee’d • To close the plastic, first place the flange on the top side then place the flange below and press the sides until they are completely looked. Ver 1.0 07-06-2011 – Installazione Cee’d...
- Page 8 EF-KI2-5561 Easy fit M-DVD5561R for Kia Cee’d • Now your Macrom entertainment system is ready to play. Ver 1.0 07-06-2011 – Installazione Cee’d...
- Page 9 EF-KI2-5561 Easy fit M-DVD5561R for Kia Cee’d ALDINET Spa. - Viale C. Colombo, 8 - 20090 Trezzano s/N (MI) Italy Ver 1.0 07-06-2011 – Installazione Cee’d...
