Summary of Contents for Macrom M-OF7070

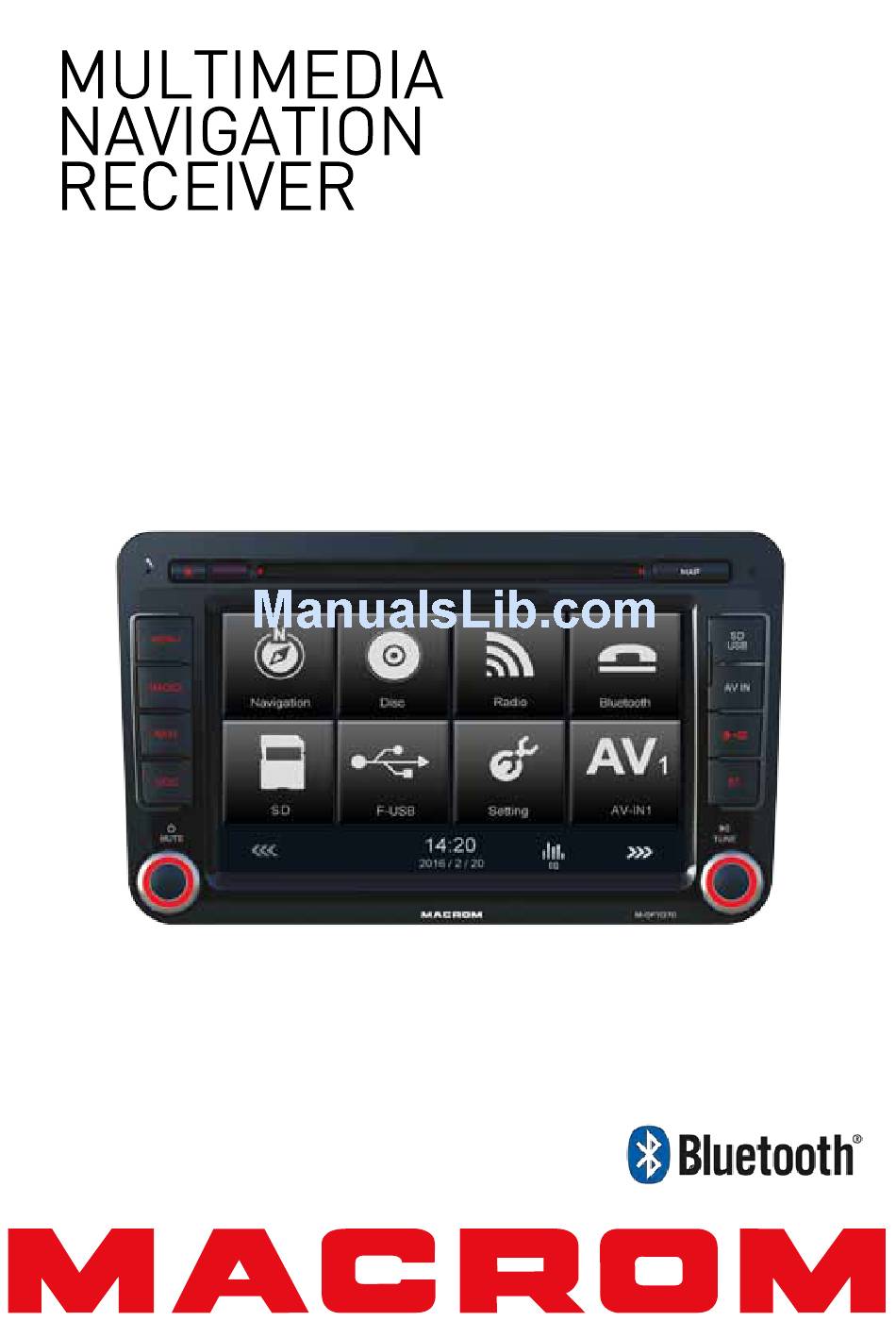

- Page 1 USER MANUAL M-OF7070...
-
Page 2: Safety Precautions
Safety Precautions Thank you for purchasing this product. Please Please don't change the fuse on the power read through these operating instructions cord without professional guidance, using so you will know how to operate your model improper fuse may cause damage to this unit properly. -
Page 3: Expanding System
Safety Precautions 1. Never disassemble or adjust the unit without any professional guidance. For details, please consult any professional car shop / dealer for inquiry. 2. If the front panel or TFT monitor is dirty, please use a clean silicone cloth and neutral detergent to wipe off the spot. -
Page 4: Table Of Contents
Contents Safety Precautions ........1-2 Search for a Folder ........ 14 Repeat ............. 14 Contents ............3 Repeat A-B ..........15 Shuffle (Random) Play ......15 Produc overview ........... 4 Select Audio Mode ........15 Front Panel ..........4 Select Subtitle Language ....... 15 Playback Information ...... -
Page 5: Produc Overview

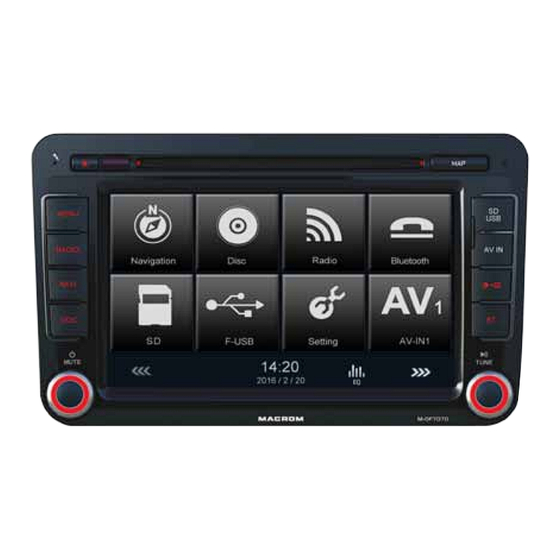

Product overview Front Panel RADIO DISC Notice: The graphic in this manual is for reference only, and may be different from the actual unit. 1. Microphone: Internal microphone for Bluetooth calls. 2. [MENU] button Press to switch between the available audio/video sources applied to the unit. 3. -
Page 6: Remote Control Overview
Remote control overview Front view 1. Change Current Source. 2. Eject the disc. 3. Enter the DVD menu. EJECT 4. Enter the DVD Title. 5. Zoom in /out on an image. 6. Select radio band. 7. EQ setting 8. Dimmer adjustment 9. -
Page 7: Remote Battery
Remote battery Notes of remote control using 1) Aim the remote control at the remote sensor on the unit. 2) Remove the battery from the remote control or insert a battery insulator if the battery has not been used for a month or longer. 3) DO NOT store the remote control under direct sunlight or in high temperature environment, or it may not function properly. -
Page 8: Basic Operations
Basic Operations Detect parking brake • Connect the cable "BRAKE" to the parking brake switch to view video files on the TFT monitor. Engage the parking brake for viewing videos. • When the parking brake is not engaged, the monitor displays "Warning!!!, Video playback is disabled for your safety. Engage parking brake to watch video.", preventing the driver to watch content while driving. -
Page 9: Eq Menu
Basic Operations EQ Menu The Audio Control feature allows you to easily adjust your audio system to meet the acoustical characteristics of your vehicle, which vary depending on the type of vehicle and its measurements. Proper setting of the Fader and Balance boosts the effects of the cabin equalizer. Select preset equalizer 1. -
Page 10: Setting Date/Time
Setting Date /Time 1. Touch [Settings ]. 2. Touch [ Time ]. The date/time setup menu is displayed. Date 1. Touch [ Date ]. 2. Touch the date information on the screen . A submenu is displayed. 3. Touch [ ] or [ ] to set year, month and day. -
Page 11: Radio Mode
Radio Mode Tuner TFT Display 1. Touch to view the MENU and select a new playback source 2. Strong Local signal broadcasting indicator 3. Stereo broadcasting indicator 4. Current radio band indicator 5. Broadcaster information stored at the preset 6. Touch to view more on-screen buttons 7. -
Page 12: Preset Station
Radio Mode Preset Station The unit has 5 bands, such as FM1, FM2, FM3, AM1, AM2, and each band can store 6 stations; the unit can store 30 stations in total. Intro/Scan Press the [ ] icon to intro. Each stored station will play for 5 seconds automatically. -
Page 13: Rds ( Radio Data System )
Radio Mode RDS ( Radio Data System ) The unit provides basic functions of RDS. RDS service availability varies with areas. Please verify if RDS service is available in your area. AF Function Alternative Frequencies Lists are used in conjunction with the PI code (Program Identification code)to assist automatic tuning. -
Page 14: Playback Mode
Playback Mode Load a Disc You can play video, audio or images stored on the following discs: • DVD Video, DVD-R, DVD-RW • VCD • Audio CD, CD-R, CD-RW Note:Ensure that the disc contains playable content. Eject a Disc Press the [ ] key on the front panel to eject the disc. When the disc is ejected, the unit switches to the previous source. -
Page 15: Search For A Folder
Playback Mode Search for a folder For Audio Files 1. Touch [ ] to display all available audio folders. 2. Touch a folder,then touch the desired file. 3. Touch the file again to start play. For Video Files 1. Touch [ ] to display all available video folders. -
Page 16: Repeat A-B
Playback Mode For CD/MP3/WMA files: 1. Touch anywhere except the upper left corner to display menu on the screen. 2. Touch [ ] repeatedly: ] Repeat single: Play the current single repeatedly. ] Repeat all: Play all in the all repeatedly. ] Repeat off: Cancel repeat play. -
Page 17: Playback Information
Playback Mode Playback information Touch the screen when playing back DVD and VCD discs and the playback information will be displayed on the top area of the TFT. For DVD 1. Disc type. DVD T:01/08 C:005/012 2. DVD Title information. “01/08” indicates that this DVD has 8 titles and the title playing back now is the first title. -
Page 18: Bluetooth Mode
1. Turn on the Bluetooth function on the device. 2. Touch [ + ] to search for Bluetooth device with the unit. 3. Start scanning on the Bluetooth device and select the unit “M-OF7070” 4. Enter default password “0000”. Tip: • T he operational range between this unit and a Bluetooth device is approximately 5 meters . -
Page 19: Incoming Call
Bluetooth Mode Make a call It's also possible call the name of the contact phone via alphabetical keyboard and tap [ ] to dial the contact's name in the phone book. Incoming call By default, all incoming calls are received automaticaly. 1. -
Page 20: Bluetooth Musci Mode
Bluetooth Mode Bluetooth music mode A2DP A2DP is short for Advanced Audio Distribution Profile. The mobile phones supporting this function can transmit stereo audio, whereas the ones not supporting this function can transmit mono audio only. AVRCP AVRCP is short for Audio/Video Remote Control Profile. The mobile phones supporting this function can control the playback of a Bluetooth audio player. -
Page 21: Settings
Settings General 1. Touch [ General ] in the settings page. 2. Touch to highlight a setting. 3. Touch on the option to display/select an option. 4. Touch [ Setting ] or press the Menu button on the front panel to exit. General settings Options Description... -
Page 22: Sound
Settings Sound 1. Touch [Sound]. 2. Touch an option repeatedly to select. Sound settings Options Description Flat 80Hz Sub Woofer Touch to select a crossover frequency. Filter 120Hz 160Hz When listening to music at low volumes, this feature will selectively boost Loud On/Off certain bass and treble frequencies. -
Page 23: Disc
Settings 1. Touch [Disc]. 2. Touch an option repeatedly to select. DVD rating Options Description Set password Set password to restrict the play of discs. The default password is 0000. Kid safe Acceptable for children. Acceptable for general viewers. Parental guidance suggested. PG-13 Unsuitable for children under age 13. -
Page 24: Other Modes
Other Modes Other devices Reset You can connect an external audio/video device to the unit. 1. Connect the external device with the supplied AV cable. 2. Touch the upper left corner to display the main menu. 3. Touch [AV1] front input or [AV2] rear input. Reset When the unit hangs up, you can reset it. -
Page 25: Specifications
Specifications General Reference Supply Voltage ....................... 12V(DC) Operating Voltage Range ....................11 - 16V(DC) Max Operating Current ........................15A Grounding System ..................Car Battery Negative Pole Dimensions(WXHXD) ....................246x137x172mm Weight(main unit) ........................2.26kg Signal Noise Ratio ........................≥55dB Residual Noise Sensitivity (S/N=30dB) ..................18dBμV Frequency Response (±3dB) .................. -
Page 26: Supported Formats
Specifications Supported formats: • USB or memory file format: FAT32 • Mp3 bit rate(date rate): 32-320 Kbps and variable bit rate • WMA v9 or earlier • Directory nesting up to a maximum of 8 levels • Number of albums/folders: maximum 99 • Number of tracks/titles: maximum 999 • ID3 tag v2.0 or later • File name in Unicode UTF8(maximum length:128 bytes) Unsupported formates: • Empty albums:an empty album is an album that does not contain MP3/WMA files and is not shown in the display. • Unsupported file formats are skipped.For example,Word documents(.doc) or Mp3 files with extension.dlf are ignored and not played. • AAC,WMV,PCM audio files • DRM protected WMA files(.wav,.m4a,.m4p,.mp4,.aac) • WMA files in Lossless format Supported MP3 disc format:... -
Page 27: Wire Connections
Wire Connections GPS Antenna to Radio Antenna to Car USB ISO Connector FRONT R White FRONT L CTL ACC REAR R ILLUMI White REAR L Brown SUB OUT Yellow VIDEO OUT WHITE Car Connector Audio R White Audio L KEY ACC Yellow AV-IN (video) Function... - Page 28 Inc. and any use of such marks by ALDINET S.p.A. is under license. The MACROM brand is a registered trade mark of ALDINET S.p.A. Hereby, Aldinet S.p.A, declares that this type of M-OF7070, Macrom is in compliance with the essential requirements and other relevant provisions of Directive R&TTE 1999/5/EC.
